4 Polk Audio Customer Service: 1-800-377-7655 (Outside US & Canada: 410-358-3600) Monday-Friday, 9:00 AM-6:00 PM EST, [email protected]
SPEAKER PLACEMENT
Polk Audio RTS
FX
Surround Loudspeaker give you
nearly endless placement options. But remember
that where you place your surround speakers
requires some careful thought, as installation
requires that you cut a hole in your wall or ceiling.
Left/Right Orientation: RTS FX Surround Speakers
have a left/right orientation, and each speaker is
clearly marked on its baffle for installation on either
the right or left. Right and left are defined from
your listening area as you face your system's
center channel.
IMAGING
Solid/Diffuse Switch (RTS
FX only)
RTS
FX
Surround Loudspeakers offer switchable “Solid”
and “Diffuse” imaging patterns to create the surround
effect you desire.
A “Diffuse” image is defined as one which creates
a “cloud” of sound; think of the effect as ambient
sounds which fill the environment all around you.
A “Solid” image is one which creates a more pin-
point sound; sound is more directional and localized.
The “Solid” setting is required for THX ® Ultra2
Systems.
Ultimately you are the best judge of what kind
of surround imaging you prefer.

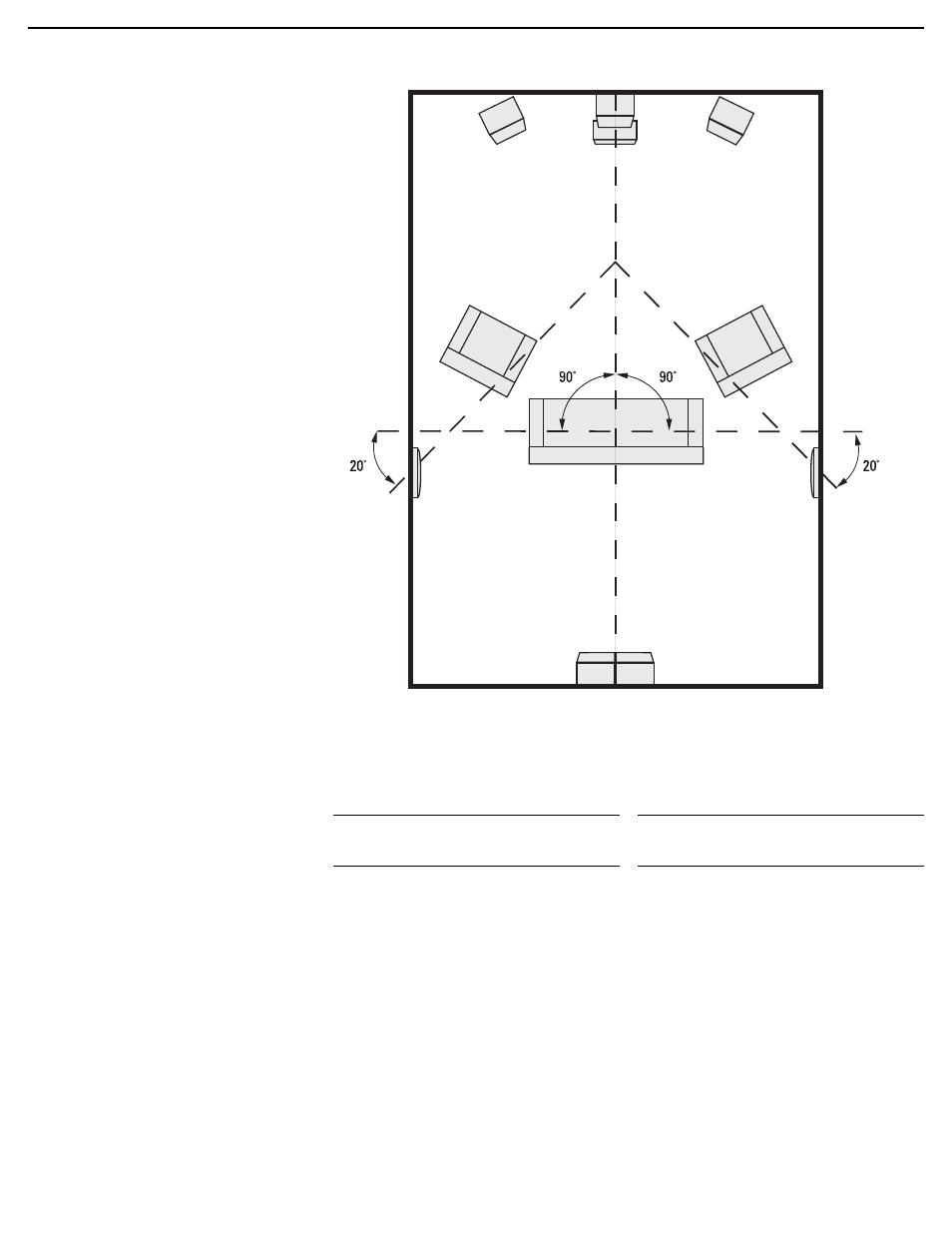

The schematic drawing of the room represents an
ideal placement for all speakers in either a 6.1 or
7.1 speaker system.
SETTING RECOMMENDATIONS
RTS
FX
In-wall Surround Location
Surround speakers located close, straight to the sides
of your listening area, and approximately six feet off
the floor.
Surround speakers located behind your listening area
and approximately six feet off the floor.
Image Setting
Recommendation
Diffuse
Solid
RTS FX
RTS
FX RTS
FX
RTS
FX
Surround Left Surround Right
Surround Back Right Surround Back Left
Subwoofer
Center
Right Left
