Poulan Pro PR1030ES SNOW THROWER - Manual (Page 36)

36
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS

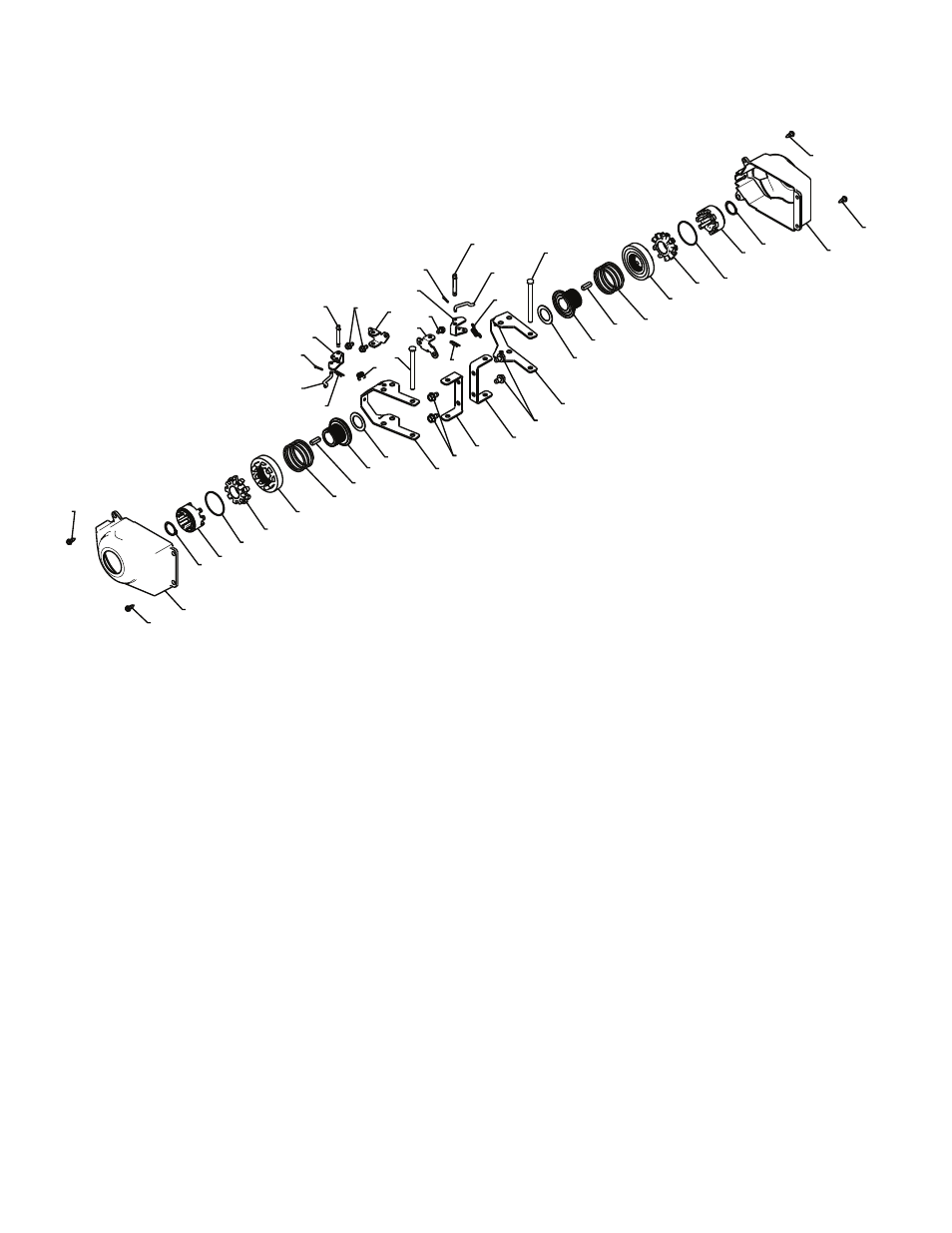

SNOW THROWER - MODEL PR1030ES (96192003101)
WHEELS
2
2
1
3 4
5
6
7
8
9
10
11
12
13
14
13
14
12
11
10
9
8
7
6 5
4 3 1
2
2
23
17
19 20
16
18
24
22
21
23
22
15
18 17
16
20
19
21
01.15.001-A
1 405161 COVER
2 184471 SHOULDER SCREW
3 12000045 RETAINER RING
4 192126 WHEEL DRIVER
5 182466 RETAINER RING
6 187622 WHEEL LOBE
7 194941 CLUTCH SLIDE
8 179139 SPRING
9 189282 SQUARE KEY
10 194940 AXLE LOBE
11 174697 THRUST WASHER
12 193506X479 STEERING YOKE
13 179148X479 STEERING BRACKET
14 17490508 SCREW 5/16−18 X .50
15 194943X008 PIVOT BRACKET
16 194944X008 BELLCRANK
17 181847 BELLCRANK PIN
18 17600406 SCREW 1/4−20 X .375
19 405077 STEERING LINK
20 700279 RETAINER
21 85179 RETAINER
22 193885 SPRING
23 182015 LEVER PIN
24 194939X008 PIVOT BRACKET
