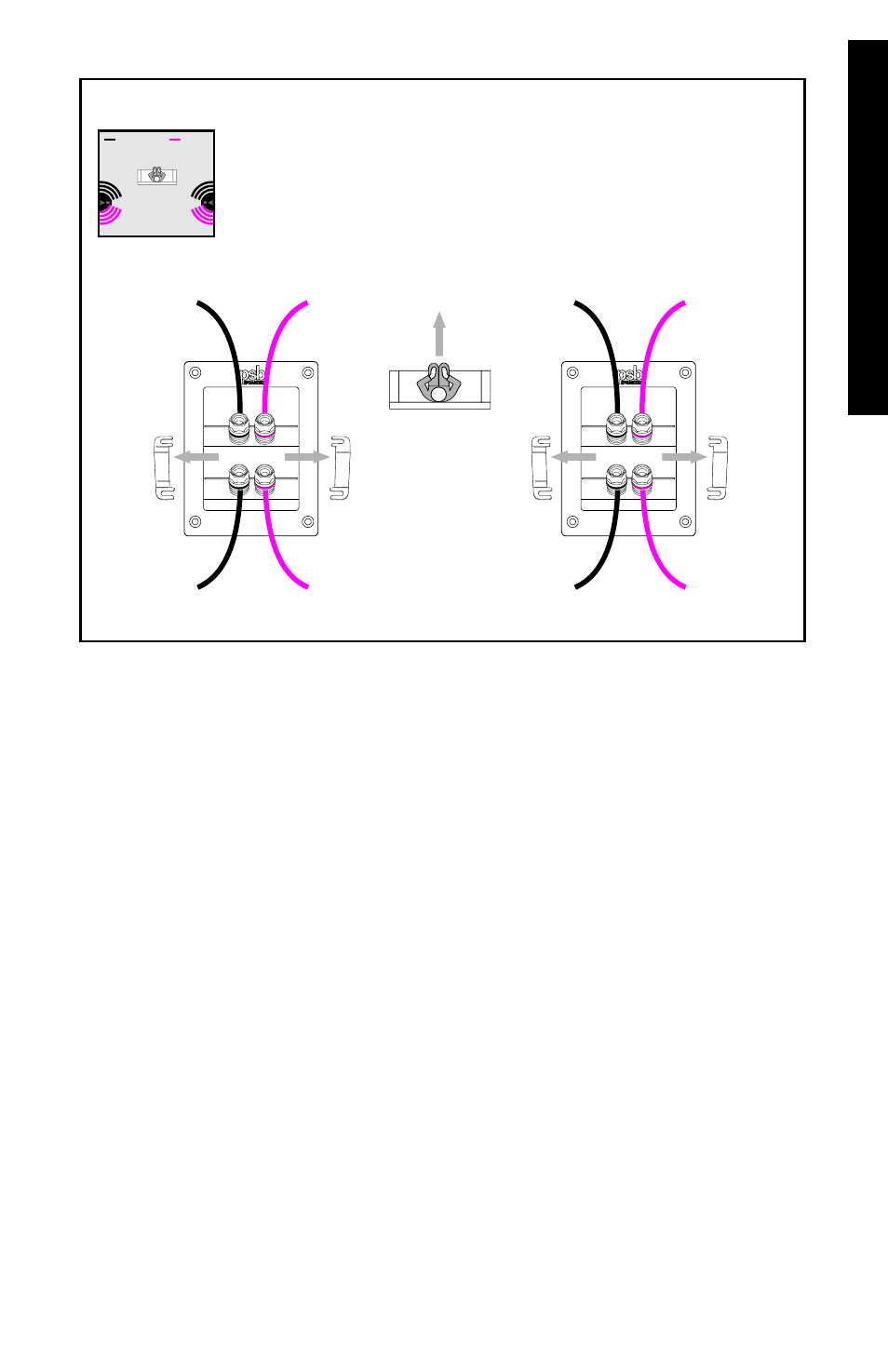

6.1/7.1 System Utilizing Two (2) Synchrony S Surrounds
— Surround Rear —
Red
From amp
left REAR
channel
Black
From amp
left REAR
channel
First
remove
jumpers
First
remove
jumpers
Black
From amp
right REAR
channel
First
remove
jumpers
Front
Red
From amp
left SURROUND
channel
Black
From amp
left SURROUND
channel
Black
From amp
right SURROUND
channel
Red
From amp
right REAR
channel
First
remove
jumpers
Red
From amp
right SURROUND
channel
