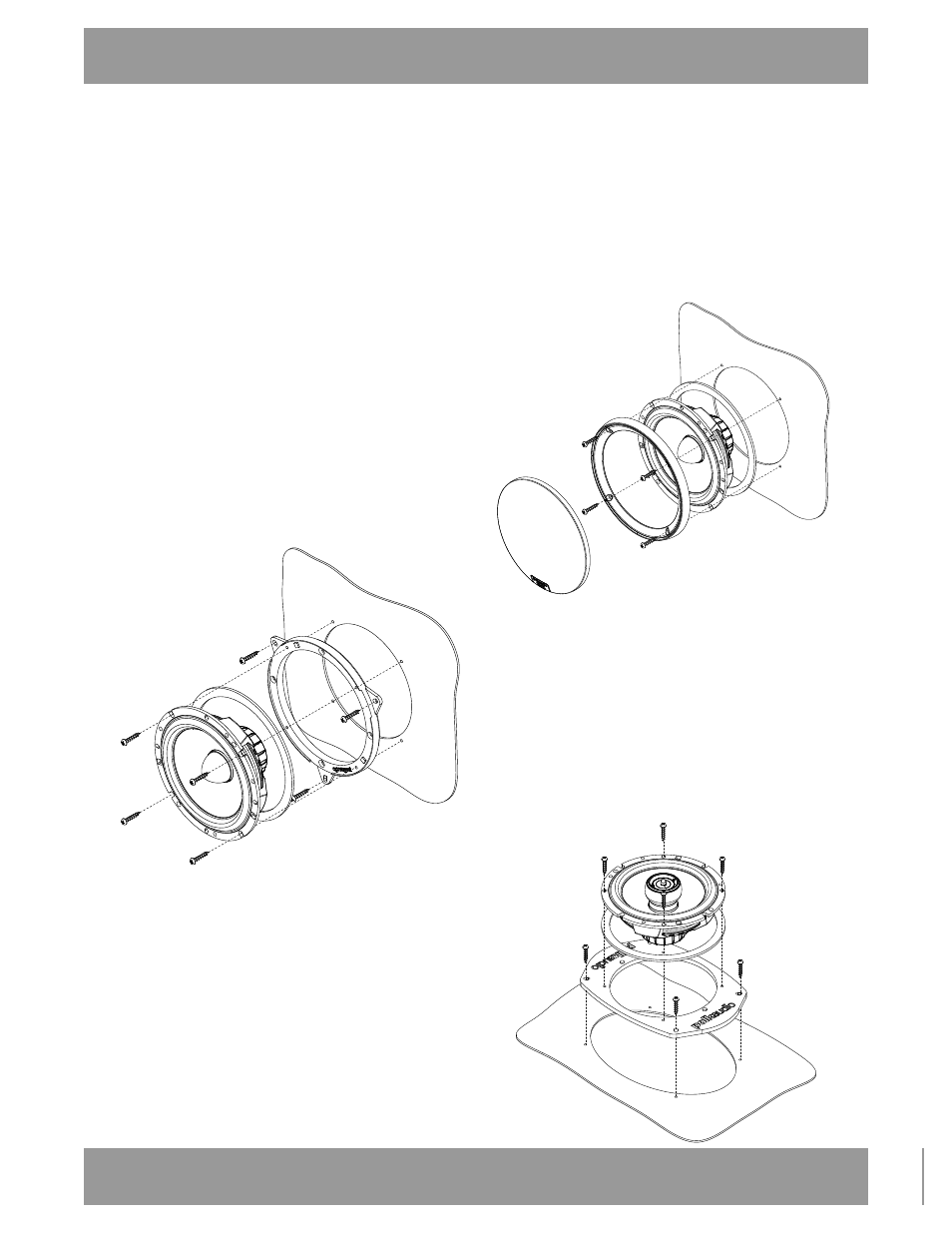

FIGURE 3: DRIVER INSTALLATION
SUPPLIED SPACER RING
(IF ADDITIONAL CLEARANCE IS REQUIRED,
USE TWO SPACER RINGS.)
FIGURA 3: INSTALAÇÃO DO ANEL
ESPAÇADOR FORNECIDO NO DRIVER
(SE MAIS ESPAÇO FOR NECESSÁRIO,
USE DOIS ANÉIS ESPAÇADORES)
FIGURA 3: INSTALLAZIONE DRIVER-
DISTANZIATORE IN DOTAZIONE
(SE NECESSARIO, UTILIZZARE DUE DISTANZIATORI
PER AUMENTARE LA DISTANZA.)
ABBILDUNG 3: TREIBERINSTALLATION
BEILIEGENDER ABSTANDSHALTERRING
(WENN MEHR ABSTAND ERFORDERLICH IST,
SIND ZWEI RINGE ZU VERWENDEN.)
FIGURA 3: INSTALACIÓN DEL EXCITADOR
ANILLO ESPACIADOR SUMINISTRADO
(SI SE NECESITA MÁS SEPARACIÓN,
USE DOS ANILLOS ESPACIADORES.)
FIGURE 3: INSTALLATION
DU TRANSDUCTEUR
BAGUE D’ENTRETOISE FOURNIE
(SI PLUS D’ÉCART EST REQUIS, UTILISEZ
DEUX BAGUES D’ENTRETOISE.)
FIGURE 4: DRIVER INSTALLATION
SUPPLIED GRILLE
FIGURA 4: INSTALAÇÃO DA
GRADE FORNECIDA NO DRIVER
FIGURA 4: INSTALLAZIONE DRIVE
MASCHERINA IN DOTAZIONE
ABBILDUNG 4: TREIBERINSTALLATION
BEILIEGENDER LAUTSPRECHERGRILL
FIGURA 4: INSTALACIÓN DEL EXCITADOR
REJILLA SUMINISTRADA
FIGURE 4: INSTALLATION DU TRANSDUCTEUR
GRILLE FOURNIE
FIGURE 5: DRIVER INSTALLATION
6" x 9" COAXIAL MODE
FIGURA 5: INSTALAÇÃO DO DRIVER
MODO COAXIAL 6" X 9"
FIGURA 5: INSTALLAZIONE DRIVER
6" X 9" MODALITÀ COASSIALE
ABBILDUNG 5: TREIBERINSTALLATION
6" X 9" KOAXIALMODUS
FIGURA 5: INSTALACIÓN DEL EXCITADOR
MODO COAXIAL DE 6 PLG. X 9 PLG.
FIGURE 5: INSTALLATION DU TRANSDUCTEUR
6" X 9" MODE COAXIAL
SR6500 IN COAXIAL MODE, 6X9 ADAPTER INSTALL
INSTALLING WITH SUPPLIED SPACER RING
INSTALLING WITH SUPPLIED GRILLE
