Preparation
9

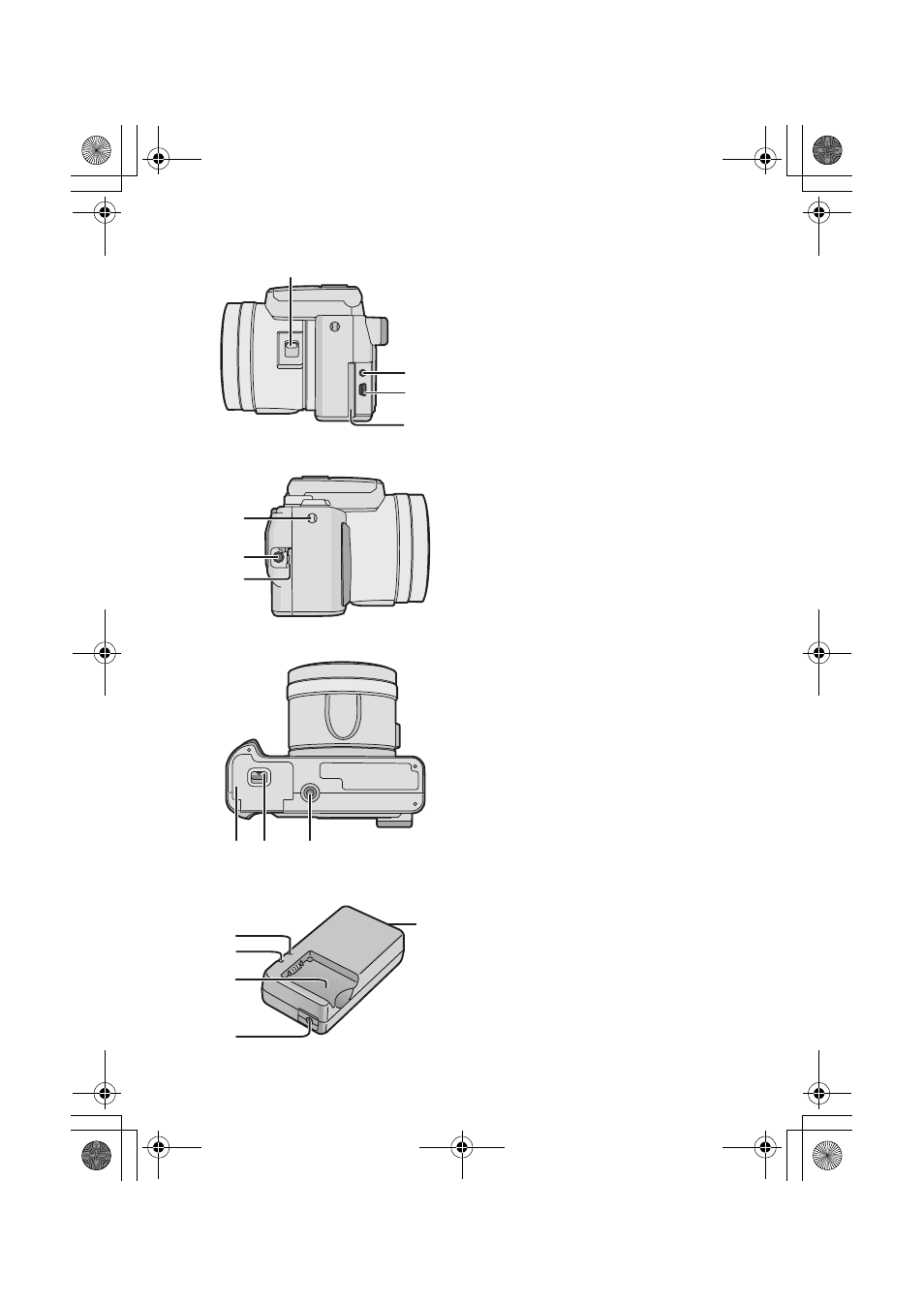

26 Focus Switch (P65)
27 [A/V OUT] Socket (P106)
28 [USB] Socket (5pin)
(P109, 110, 112)
29 Terminal Door
30 Strap Eyelet (P20)
31 [DC IN] Socket (P16)
32 [DC IN] Terminal Door (P16)
33 Card/Battery Door (P14, 18)
34 Card/Battery Door Open Lever
(P14, 18)
35 Tripod Receptacle
ª Battery Charger/AC Adaptor
(P12, 16)
1 [AC IN T] Terminal
2 [POWER] Indicator
3 [CHARGE] Indicator
4 Battery Attachment Part
5 [DC OUT] Terminal
27
26
28
29
31
30
32
33 34 35
2
3
5
4
1
