11
This is a widely used configuration for stereo mode, although it is less suitable for surround mode since there is a risk of overloading
with small satellite loudspeakers. With this configuration, the connection is made to the amplifier. Refer to the appropriate manual for
information about operation and connecting options for your AV receiver/power amplifier.
PIEGA P SUB 1 MKII

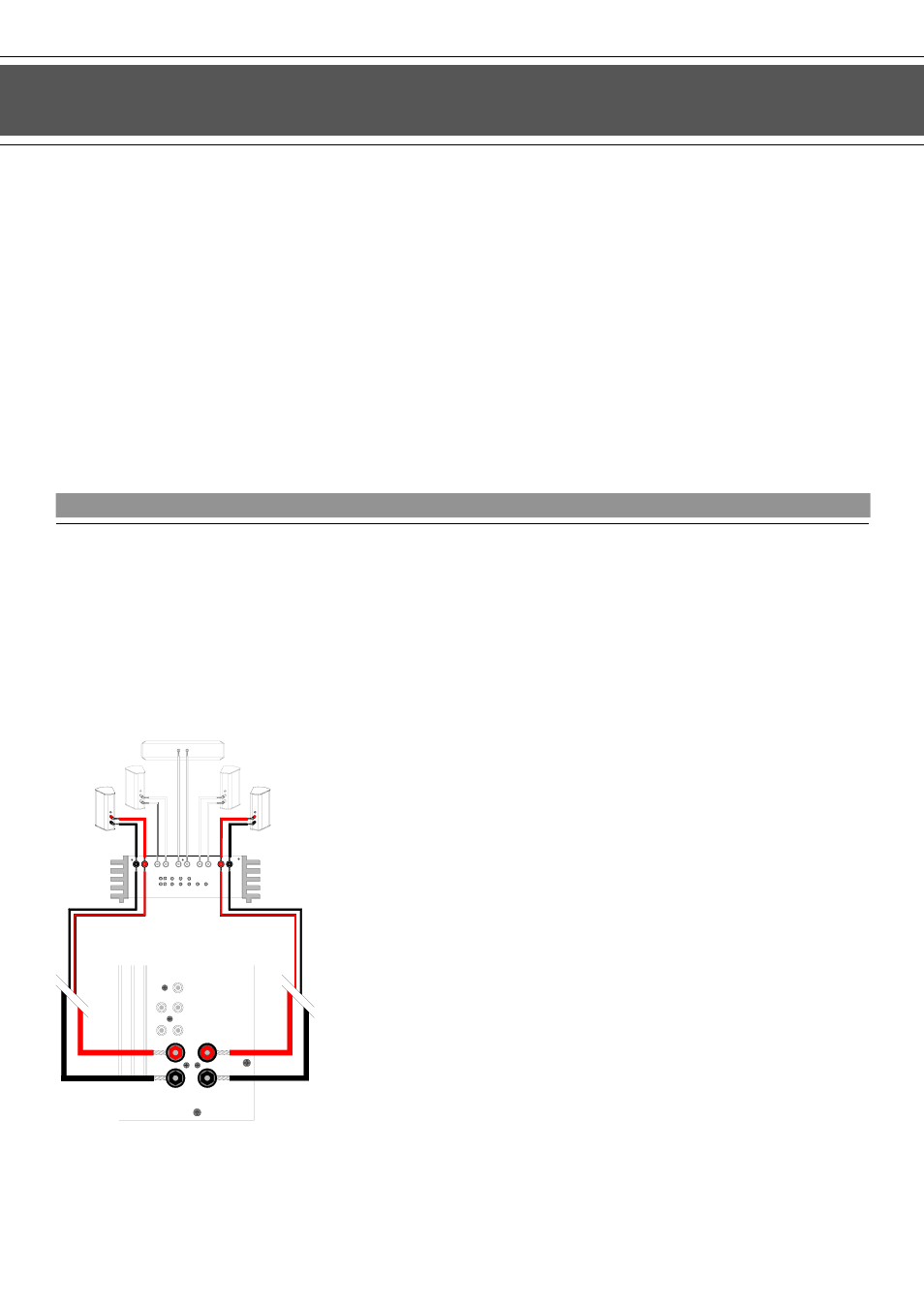

Configuration example for stereo and surround mode
Subwoofer and loudspeaker terminals on the amplifier
Connecting the System
Connection:
>Connect the P SUB 1 MKII cable to the subwoofer terminal marked
SPEAKER LEVEL INPUTS
>Connect the P SUB 1 MKII subwoofer cable to the amplifier terminal
marked SPEAKER (or similar)
>Likewise connect up the loudspeakers (parallel) to the amplifier
terminal marked SPEAKER (or similar)
>For this use two similar connection cables (not supplied)
>If necessary, connect the front, rear and center loudspeakers using the
loudspeaker terminals provided on your AV receiver
Benefit:
Frequently used configuration in stereo mode
>Flexible positioning of components...!
LFE / IN
INPUT
OUTPUT
L R
L+
L-
R+
R-
SPEAKER LEVEL INPUTS
Front R Rear R Center Rear L Front L
Front
Speaker R
Front
Speaker L
Center
Speaker
Rear
Speaker R
Rear
Speaker L
Amplifier
