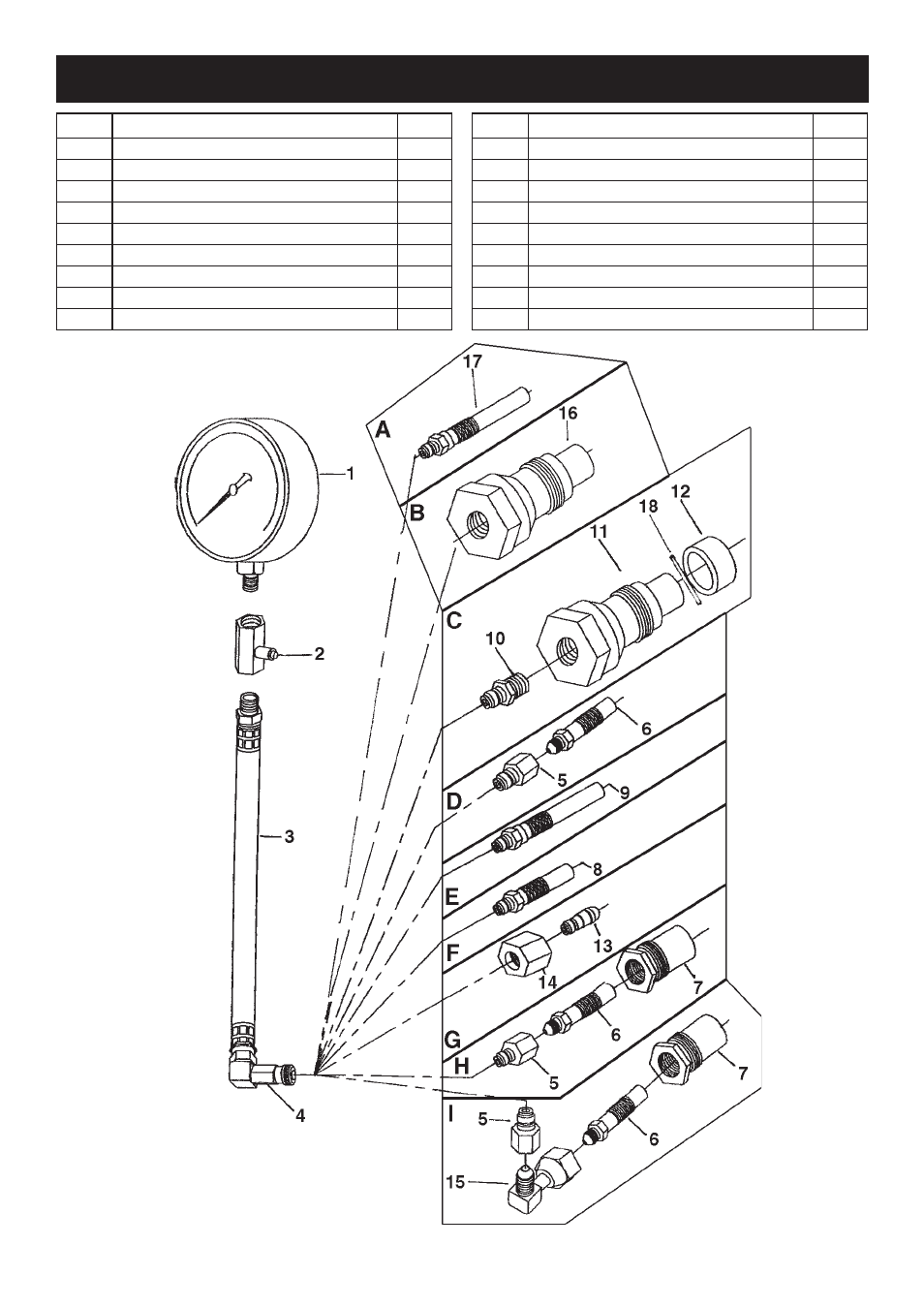

Parts List and Assembly Diagram
Letters designate adapter assemblies.
Part Description Qty
1 Pressure Gauge 1
2 Air Release Button 1
3 Rubber Hose 1
4 1/8" NPT Quick Coupler 1
5 7/16"-20 (F) Quick Coupler 3
6 M12 x 1.25 (M)-7/16"-20 (M) Adapter 3
7 M12 x 1.25 (F)-M18 x 1.5 (M) Adapter 2
8 M10 x 1.25 Short Adapter 1
9 M10 x 1.25 Long Adapter 1
Part Description Qty
10 ZG 1/8" (M) Male Quick Coupler 1
11 ZG 1/8" (F)-M24 x 2 (M) Adapter 1
12 Adapter Sleeve 1
13 Quick Connect with Ball Tip 1
14 1/2"-19 Lock Nut 1
15 7/16"-20 (M)-7/16" x 20 (F) 90° Connector 1
16 ZG 1/8" (M)-M24 x 1.5 (M) Adapter 1
17 M10 x 1 (M) Adapter 1
18 Copper Washer 2
