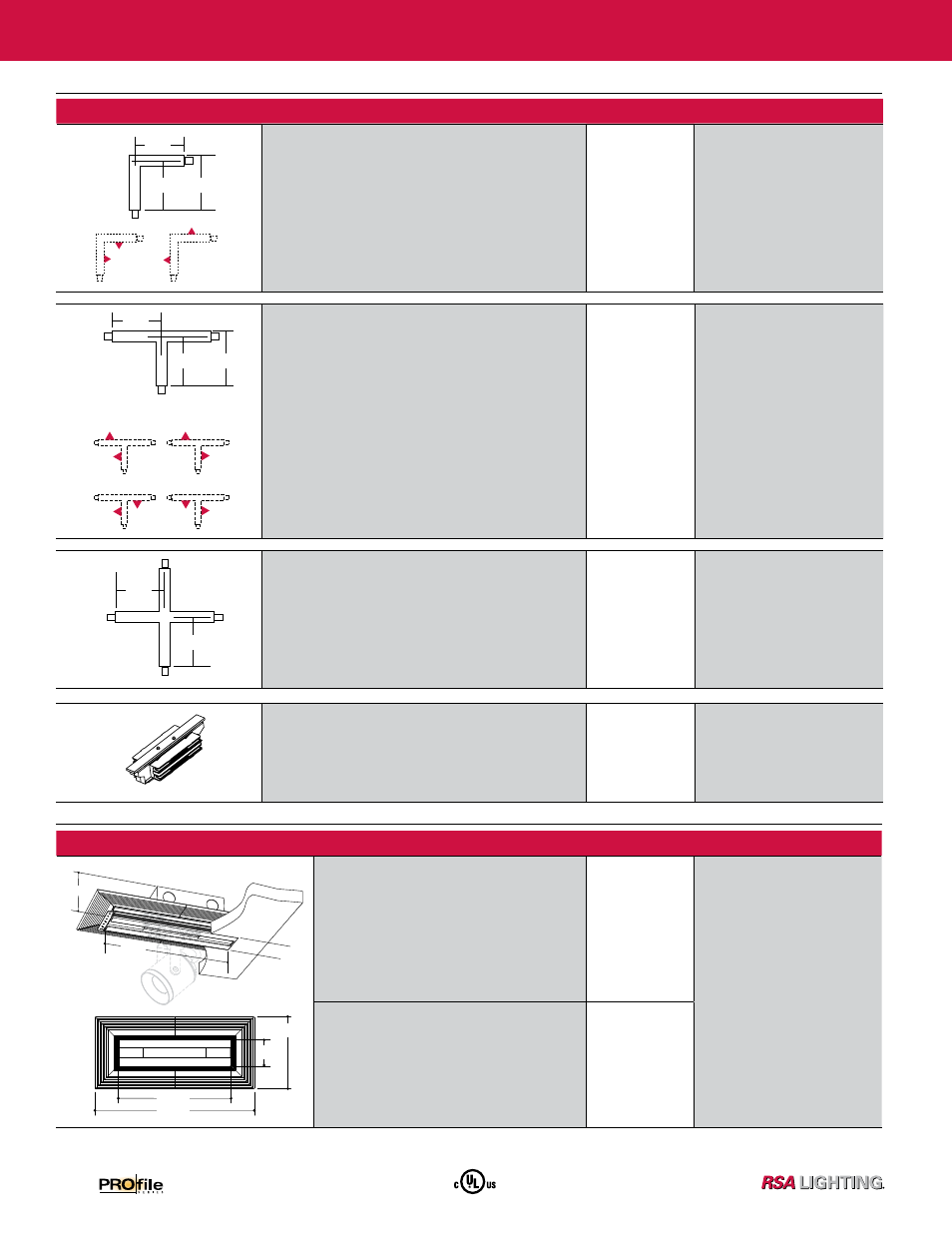

RECESSED/TRIMLESS MOUNTED 60 AMP BUSWAY
U.S. Patent Number: 6,517,363
CONNECTORS FOR RECESSED/TRIMLESS MOUNTED BUSWAY
Item
Circuits
Finish
❑
AR60LIR
‘L’ Connector - Recessed Mount
Internal Circuit Indicator
❑
AR60LER
‘L’ Connector - Recessed Mount
External Circuit Indicator
❑
1 1 Circuit
❑
2 2 Circuit
❑
WH White
❑
BK Black
❑
IS Industrial Silver
❑
PT Custom Finish
v
v v
)NTERNAL
#IRCUIT
)NDICATOR
%XTERNAL
#IRCUIT
)NDICATOR
❑
AR60TIRR
‘T’ Connector - Recessed Mount
Internal Circuit Indicator Right
❑
AR60TILR
‘T’ Connector - Recessed Mount
Internal Circuit Indicator Left
❑
AR60TERR ‘T’ Connector - Recessed Mount
External Circuit Indicator Right
❑
AR60TELR
‘T’ Connector - Recessed Mount
External Circuit Indicator Left
❑
1 1 Circuit
❑
2 2 Circuit
❑
WH White
❑
BK Black
❑
IS Industrial Silver
❑
PT Custom Finish
v
v v
)NTERNAL
%XTERNAL
%XTERNAL
)NTERNAL
❑
AR60XR
‘X’ Connector - Recessed Mount
❑
1 1 Circuit
❑
2 2 Circuit
❑
WH White
❑
BK Black
❑
IS Industrial Silver
❑
PT Custom Finish
v
v
❑
AR60BC
Bus Connector
(Connects two live busway ends)
❑
1 1 Circuit
❑
2 2 Circuit
❑
WH White
❑
BK Black
❑
IS Industrial Silver
Recessed / Rectangular Trimless
Item
Voltage
Finish
❑
AR60MPR12 Monopoint Canopy
Recessed Trimless with
Integral Low Voltage
Electronic Transformer.
75W max.
Accommodates drywall ceiling from 1/2” to
1 1/8” thick.
❑
120
❑
277
(one circuit only)
❑
WH White
❑
BK Black
❑
IS Industrial Silver
❑
PT Custom Finish
❑
AR60MPR Monopoint Canopy
Recessed Trimless for
Remote Transformer or
120V or 277V direct wire
Accommodates drywall ceiling from 1/2” to
1 1/8” thick.
❑
12
❑
120
❑
277
(one circuit only)
v
* "OX
$RYWALL
#EILING
v
v
v
v
v
v
MONOPOINT CANOPY
Other monopoint canopy designs are available. See page 10 for Surface Mounted or page 22 for Recessed w/ Trim.
Fixture sold
separately
