16
3.4 Safety Mode

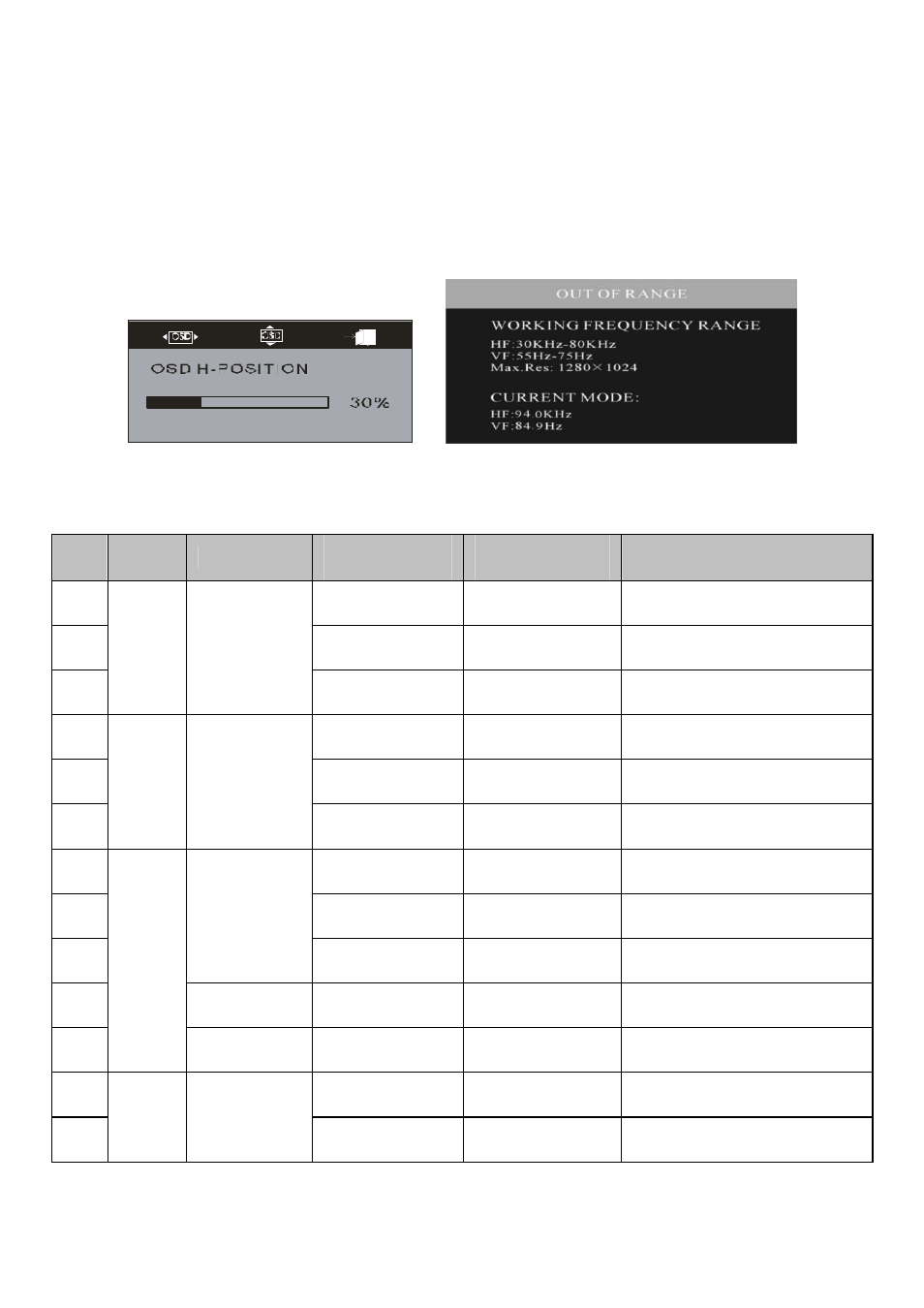

When the video signal exceeds the frequency range of the monitor, the monitor
MCU will stop horizontal and vertical scanning in order to protect the monitor the
following image will be displayed on the screen. After a few seconds, the monitor
will enter turn-off mode. You must restart the computer and reset the frequency
range.
3.5 Timing guide
No. Mode Resolution
V-Frequency
(Hz)
H-Frequency
(KHz)
Available Input Signal
1 60 31.5
Analog RGB,Digital DVI
2 72 37.9
Analog RGB
3
VGA 640 x 480
75 37.5 Analog RGB
4 60 37.9
Analog RGB,Digital DVI
5 72 48.1
Analog RGB
6
SVGA 800 x 600
75 46.9 Analog RGB
7 60 48.4
Analog RGB,Digital DVI
8 70 56.5
Analog RGB
9
1024 x 768
75 60 Analog RGB
10 1280 x 960 60 60
Analog RGB
11
XGA
1152 x 864 75 67.5
Analog RGB
12 60 64
Analog RGB,Digital DVI
13
SXGA 1280x1024
75 80 Analog RGB
