Chapter 2 Hardware Configuration
Page: 2-14 PSB-1688LF USER
′
S MANUAL

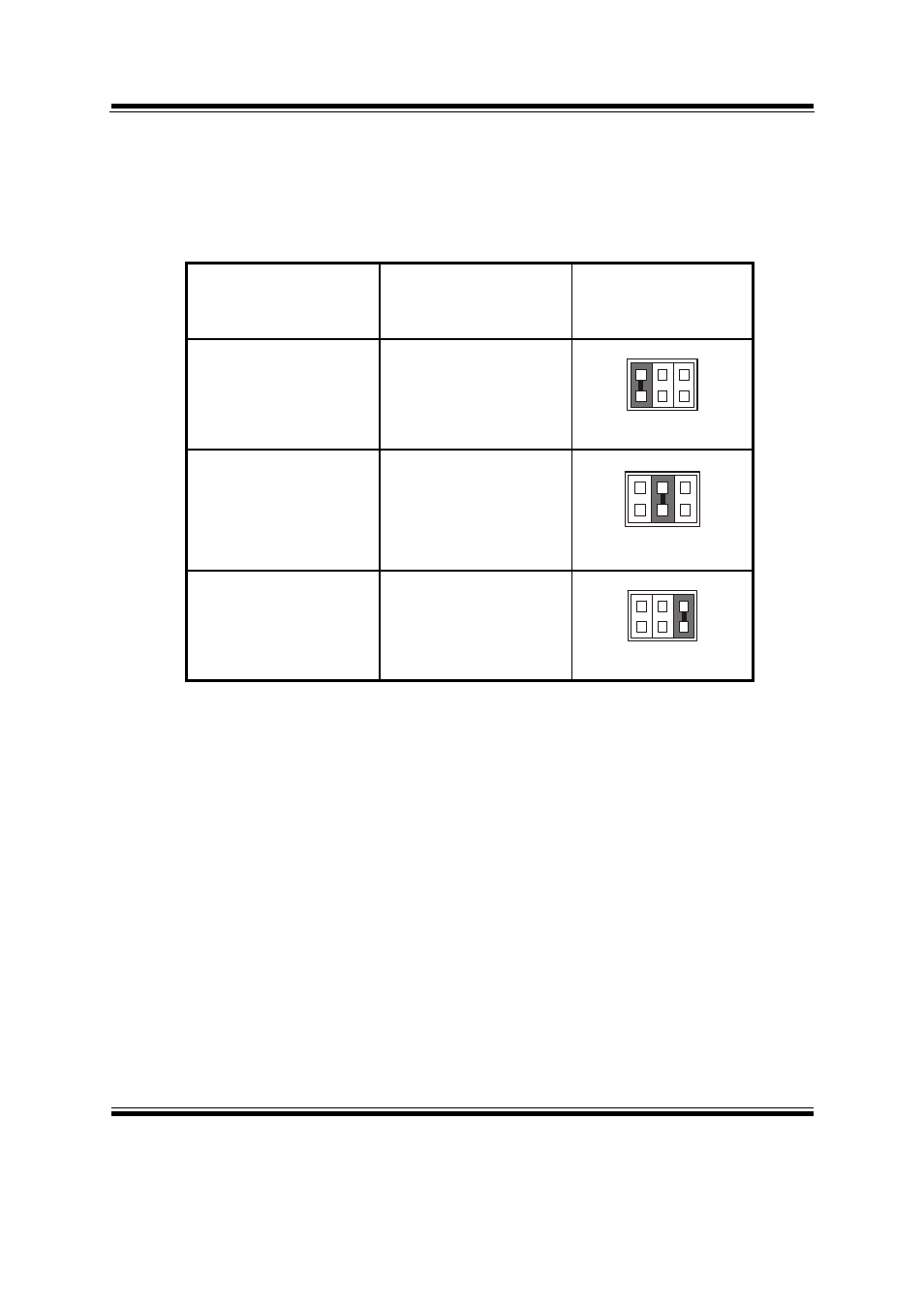

2-19. RESET/NMI/CLEAR WATCHDOG SELECTION
JP11 : Reset/NMI/Clear Watchdog Selection
The selections are as follows:
FUNCTION JUMPER SETTING
(pin closed)
JUMPER
ILLUSTRATION
RESET 1-2
JP11
6
5 1
2
NMI 3-4
JP11
6
5 1
2
CLEAR WATCHDOG 5-6
JP11
6
5 1
2
***Manufacturing Default is set as NMI.
User may select to use the Reset or NMI watchdog. NMI, also known as Non-
Maskable Interrupt, is used for serious conditions that demand the processor’s
immediate attention, it cannot be ignored by the system unless it is shut off
specifically. To clear NMI command, user should short the “Clear Watchdog”
pin via push button.
