Connecting your DVD player with no HDMI output

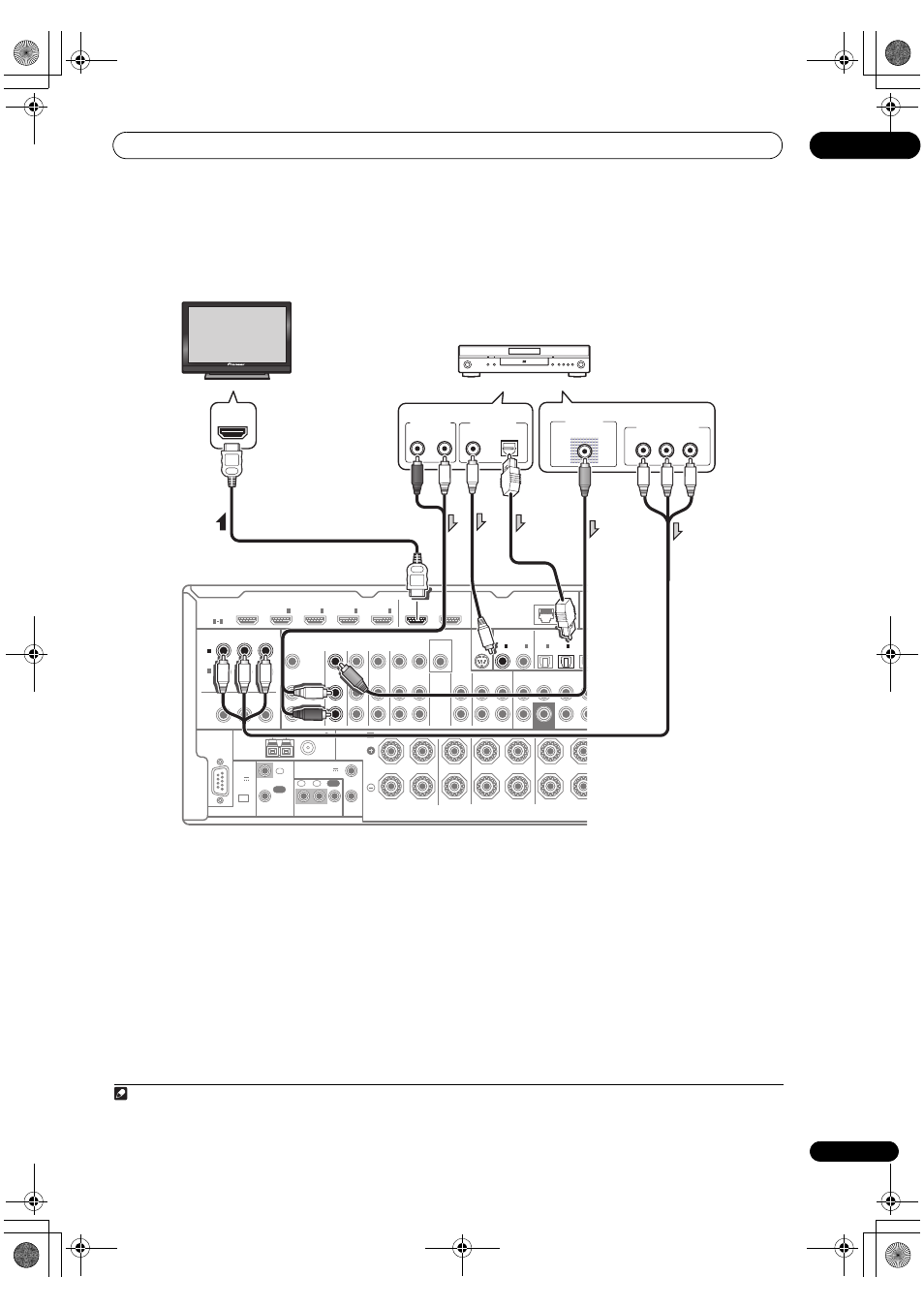

This diagram shows connections of a TV (with HDMI input) and DVD player (or other playback component with no
HDMI output) to the receiver.
• If you want to listen to the sound of the TV over the
receiver, connect the receiver and TV with audio
cables (page 24). 1
• If you use an optical digital audio cable, you’ll need to
tell the receiver which digital input you connected the
player to (see The Input Setup menu on page 39).
RS-232C
HDMI
SPEAKERS
ASSIGNABLE
COAXIAL COMPONENT VIDEO ASSIGNABLE OPTICAL
ASSIGNABLE ASSIGNABLE
MONITOR
OUT
IN
Y
P R Y
CD-R/TAPE
ANTENNA
FM UNBAL 75 AM LOOP
IN
CD
VIDEO
MONITOR
AUDIO
IN OUT
OUT
ZONE2
OUT
ZONE3
OUT
DVD
IN
TV/SAT
IN
VIDEO
IN
DVR/BDR
OUT IN
P B
P R P B
1
IN BD
IN 1
IN
2
IN
3
OUT 1
(CONTROL)
OUT 2
A R L R L R SURROUND BACK SURROUND CENTER FRONT
1 4
(DVD)
IN 1
(DVD)
IN 1
(TV/SAT)
IN 2
(DVR/BDR)
IN
FRONT CENTER SURROUND SURR
(VID
IN 2
(CD)
IN 2
(DVR/BDR)
CONTROL
EXTENSION
IR
12 V TRIGGER
IN
IN IN
OUT
OUT 1 2
1
2
(OUTPUT 12 V
TOTAL 150 mA MAX)
SUBWOOFER
IN
4 LAN (10/100)
(OUTPUT
5 V
150 mA
MAX)
XM
IN
SIRIUS
IN
Class 2 Wiring
HDMI IN
ANALOG R
AUDIO OUT VIDEO OUT
VIDEO
Y P B P R
COMPONENT VIDEO OUT
DIGITAL OUT
COAXIAL OPTICAL L
DVD player, etc.
HDMI/DVI-compatible
monitor
Select one Select one
Note
1 When the TV and receiver are connected by HDMI connections, if the TV supports the HDMI Audio Return Channel function, the sound of the
TV is input to the receiver via the HDMI terminal, so there is no need to connect an audio cable. In this case, set TV Audio at HDMI Setup to
via HDMI (see HDMI Setup on page 56).
