Primate Systems PDP TV - Manual (Page 20)

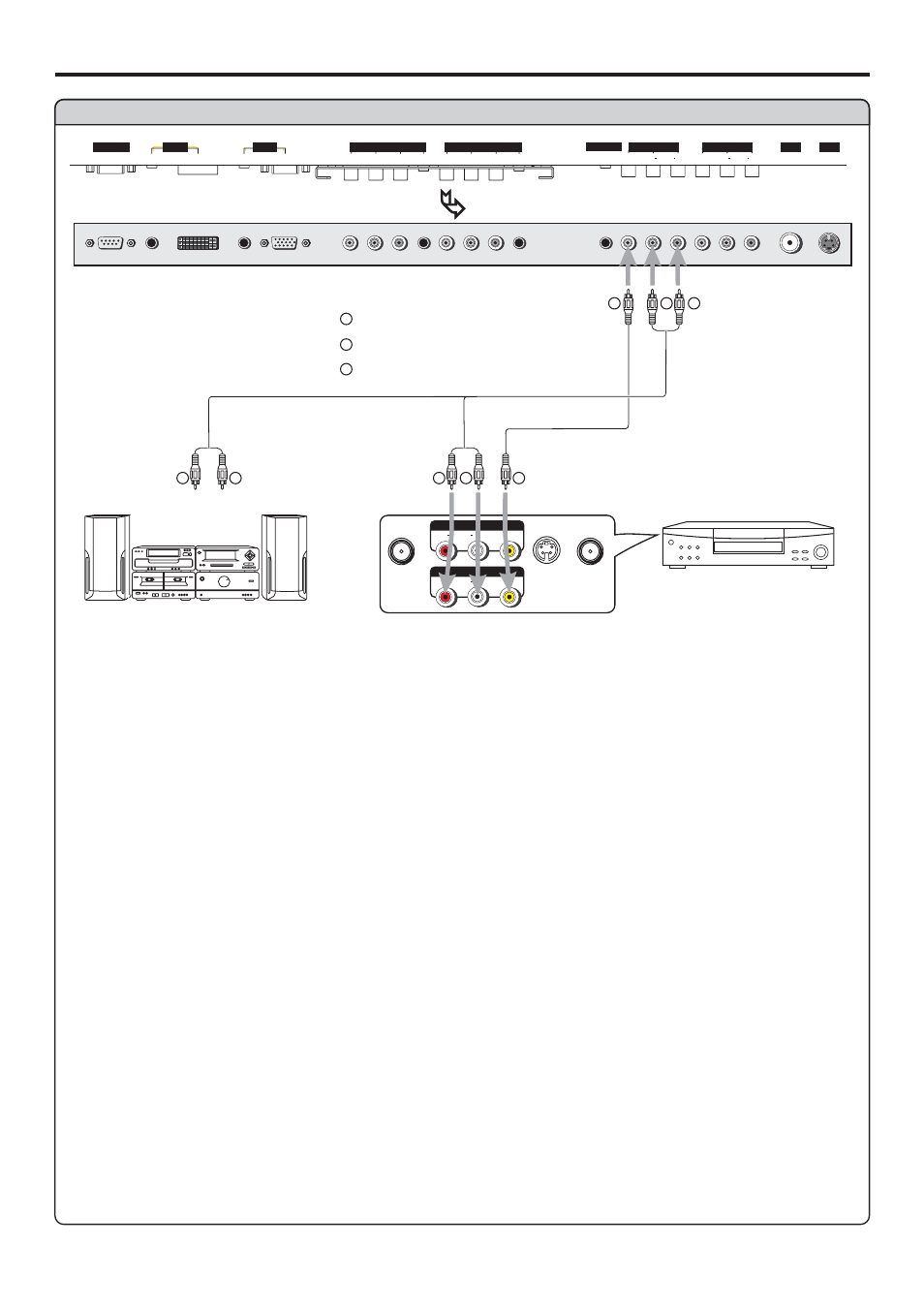

Connect a VCR (for recording) or external amplifier
W Y R
VCR for recording
W Y R
Yellow (VIDEO)
White (AUDIO L)
Red (AUDIO R )
W
Y
R
AV OUT
R L VIDEO AUDIO S-VIDEO
ANT IN ANT OUT
AV IN
R L VIDEO AUDIO
Rear of the VCR
Connect the / cables between the Audio (L/R)/Video jacks on the unit and VCR. Audio Video
How to connect:
1. Turn on your PDP TV, select a program you wish to record.
2. Turn on your VCR, insert a videotape for recording.
3. Press the Record button to begin recording.
To record program
Audio
cable Video
cable
External Amplifier
W R
Audio
cable
Connect the Audio cables between the Audio (L/R) jacks on the unit and external amplifier.
- or -
To Audio inputs
1. Turn on your PDP TV, select a program.
2. Turn the main volume of the amplifier to minimum.
3. Turn on the amplifier and adjust for a proper volume.
Note:
The operations of the amplifier may be different depending on model. Please read the user manual of
your amplifier to confirm proper operation.
The AV output terminals output audio/video signal inputted from Antenna input or AV inputs.
Connections
(continued)
D-SUB SVHS HEADPHONE RF
PIC AUDIO PIC AUDIO
DVI AV OUTPUT AV INPUT CONTROL COMPONENT INPUT 1 COMPONENT INPUT 2 D-SUB
AUDIO AUDIO C /P r r C /P r r C /P b b C /P b b Y Y VIDEO VIDEO R L AUDIO R L AUDIO
BOTTOM VIEW
17
To enjoy high-quality sound through an external amplifier
