6 GB
Introduction
Paint spray gun
Q
Introduction
Please make sure that you familiarise
yourself fully with the way the electrical
power tool works before you use it for
the first time and that you understand how to handle
electrical power tools correctly. To help you do this,
please read the accompanying instructions for use.
Keep these instructions in a safe place. If you pass
the electrical power tool on to anyone else, please
ensure that you also pass on all the documentation.
Q Proper use
This device is intended for applying paints and var-
nishes. You can use the device to apply a sprayed
medium with a viscosity up to 80-DIN-sec. Any other
use or modification shall be deemed to be improper
use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage aris-
ing from improper use. The device is intended for
private, domestic use only.
Q Features and equipment
1 Attachment screw
2 Regulator button
3 ON / OFF switch
4 Pump piston
5 Spring
6 Suction tube
7 Paint cup
8 Nozzle
9 Suction-pressure valve
10 Pump housing
11 Cleaning nozzle
12 Measuring cup
13 Nozzle extension
14 Metal stirrup
Q Included items
1 Paint spray gun
2 Nozzles* 1 x 0.6, 1 x 0.8 mm
2 Suction pressure valves*
1 Cleaning nozzle
1 Nozzle extension

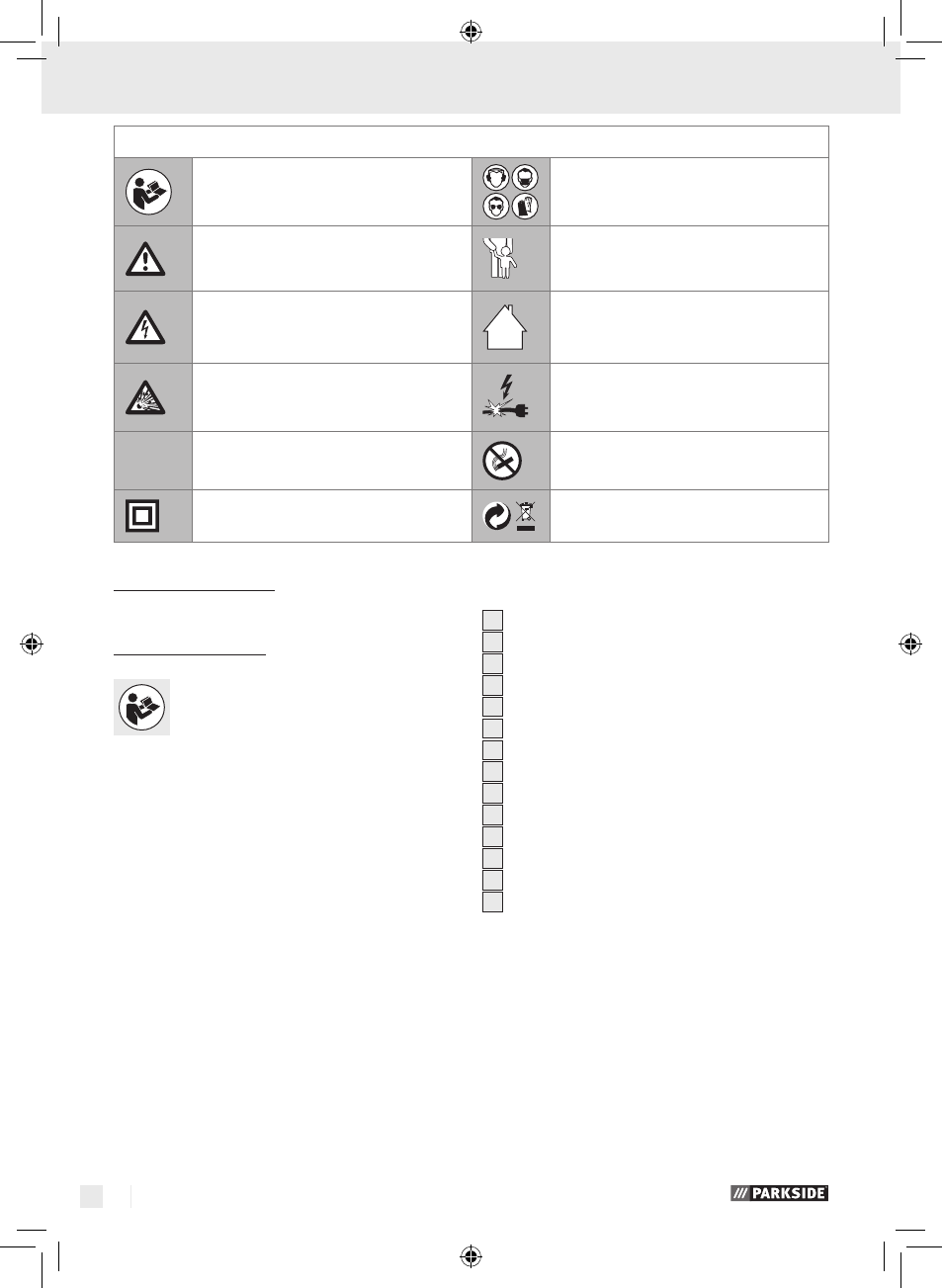

The following icons / symbols are used in this instruction manual:
Read instruction manual!
Wear hearing protection, dust
protection mask, protective glasses
and protective gloves.
Observe caution and safety notes!
Keep children away from
electrical power tools!
Caution – electric shock!
Danger to life!
For indoor use only!
Explosive material!
Check that the device, mains lead
and plug are in good condition!
W
Watts (Effective power) No smoking!
Safety class II
Dispose packaging and appliance in
an environmentally-friendly way!
