Introduction
Thank you for purchasing the Panasonic KX-T7775 Doorphone.
Features:
n
mounts directly on to a wall or can be flush-mounted;
n
illuminated call button;
n
operates standard door-bell;
n
confirmation tone;
n
can make and receive calls;
n
the microphone's sensitivity is adjustable;
n
optional decorative fascias;
n
suitable for home and office use.
Compatibility
The Panasonic KX-T7775 Doorphone is compatible with the following
Panasonic PBX systems:
KX-TA1232, KX-TA624, KX-TA308, KX-TD816, KX-TD1232, KX-TDA50,
KX-TDA100, KX-TDA200, KX-TAW848, KX-TA824, KX-TD500,
KX-T30810, KX-T61610 and KX-T123211.
Notes:
1. The KX-T7775 Doorphone is not compatible with KX-TD308 and
KX-T336 PBX systems.
2. The KX-T7775 Doorphone cannot be used with a metal gang-box.
Accessory Order Information
Replacement parts and accessories are available through your local
authorized parts distributor.
For ordering, call toll free: 1-800-332-5368
Part Number Description
KX-A401 Fascia - polished brass
KX-A402 Fascia - brushed stainless steel
QUMH00003Z Interface bracket
QUHS00012Z Gasket
PSLP1380Z AC Adaptor
PSWET7775MU Power Module
2 15

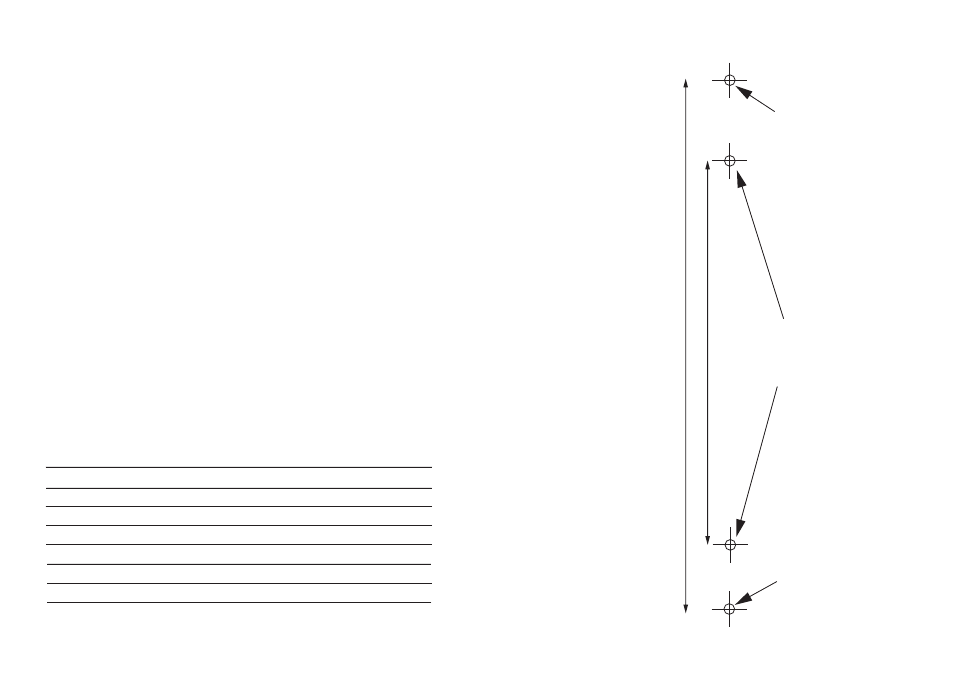

1. Place this template on
the wall.
2. Drill the holes, as
marked.
If you mount the unit on
a concrete or mortar
wall, fit anchor plugs
(not included) into the
wall with a hammer
beforehand.
DRILL HOLES HERE
WHEN ATTACHING
INTERFACE
BRACKET TO WALL
DRILL HOLE HERE IF
ATTACHING FRONT OF UNIT
DIRECTLY TO WALL
DRILL HOLE HERE IF
ATTACHING FRONT OF UNIT
DIRECTLY TO WALL
Wall Mounting Template
