Assembling and Maintaining the UBK 815 Upright Exercise Bike
7.
Slide the upright support into position so that its screw
holes line up with the corresponding holes on the body
assembly, as shown in the following illustration.
Note: If the support is positioned correctly, it rests on a
metal tab in the upright support channel.

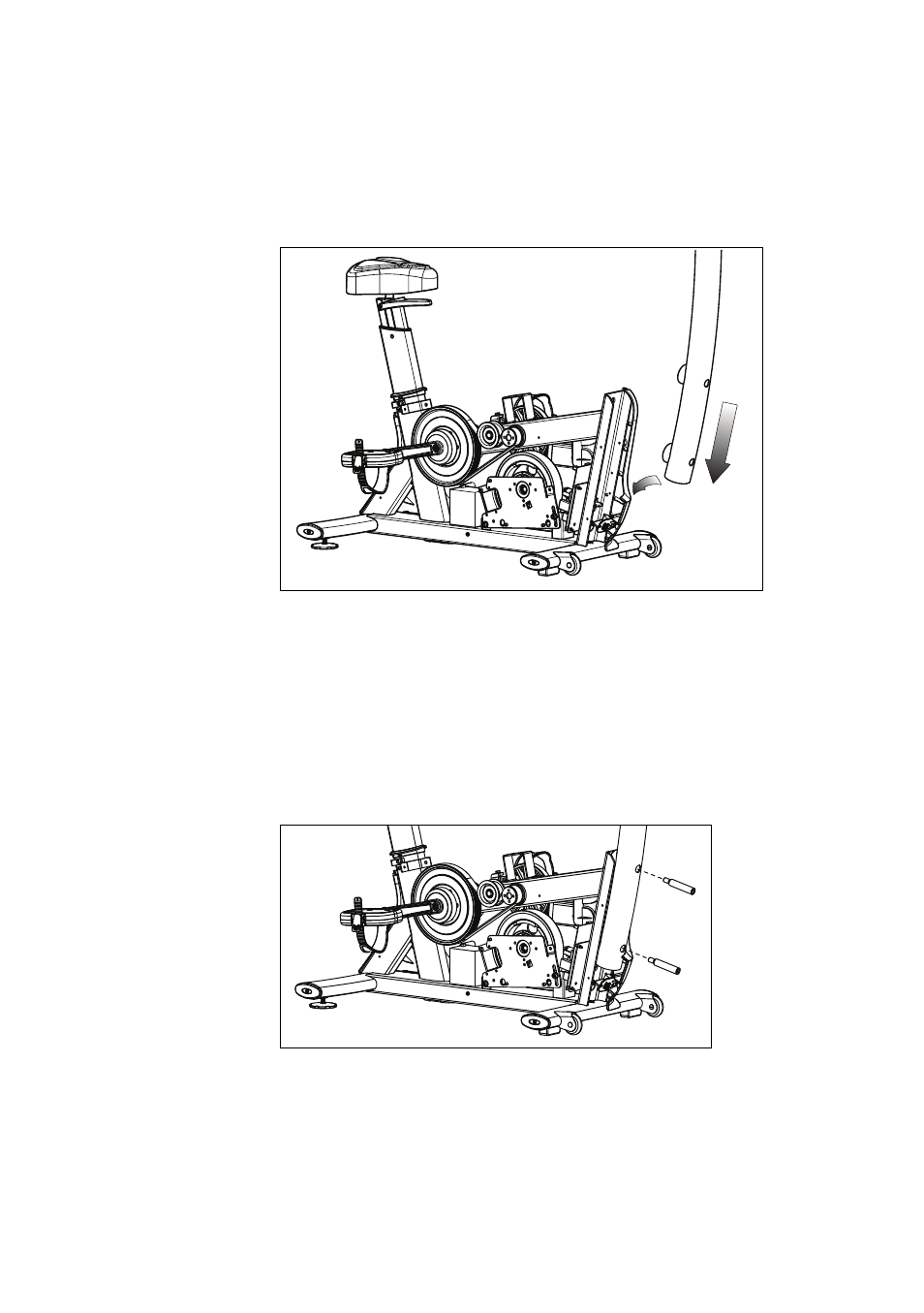

Figure 6: Upright support insertion
Important: In the following step, be extremely careful not to
trap or pinch any of the cables between the mounting screws
and their seats.
8. Insert the two upright support mounting screws through
the openings on the support and into the screw holes on
the body assembly. Tighten the mounting screws
completely using a
³ ₈-inch hex wrench.
Figure 7: Bolting the upright support into place
Note: If you are not installing Cardio Theater equipment
on the console, you do not need to complete the following
two steps.
