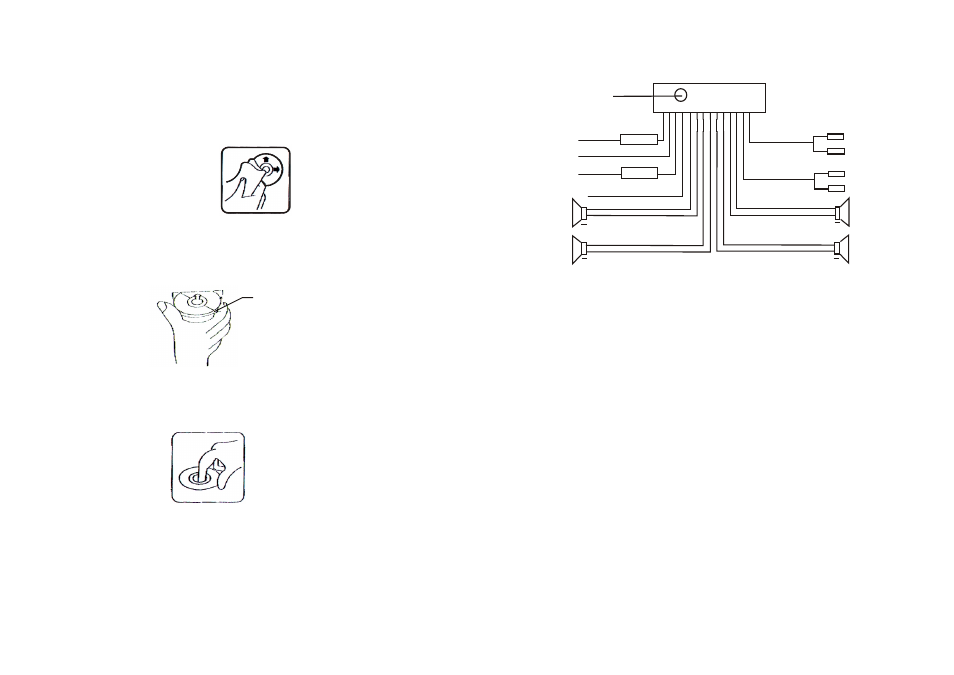

SPEAKER CONNECTION
+ +
+ + + +
+ +
YELLOW
ANTENNA PLUG
MEMORY B+
BLACK(GND)
RED (B+) RCA LINE OUT RED R
WHITE L
FRONT
REAR
RIGHT
SP
BLUE AUTO ANT
FRONT WHITE
WHITE/BLACK
GREEN/BLACK VIOLET/BLACK
GRAY/BLACK
GRAY
VIOLET GREEN
REAR
LEFT
SP
NOTE:
1. In spite of having any kinds of speaker system, must use 4 ohms
impedance of speaker to reduce the distortion during high volume level.
2. Do not allow the auto antenna wire and ground touch each other.
FUSE
FUSE
7 A
0.5 A
DISC PLAY:
Cleaning discs
Before playing, clean the disc with a clean, lint-free cloth.
Wipe the disc in the direction of the arrow.
NOTE:
. Do not use so solvents such as benzine, thinners. Commercially available
cleaners or anti static spray damage the unit.
Do not insert a disc with the label surface down. Doing so may damage the
unit.
NOTE:
. Do not try to insert another disc when one has been already inserted.
Doing so may damage the unit.
Label
surface up
.Handle the disc by its edge. And to keep the disc clean, do not touch
the surface.
.Do not stick paper or tape on the disc.
.Do not expose the disc to direct sunlight or heat sources such as hot air
ducts. Or leave it in a car parked in direct sunlight where there can be a
considerable rise in temperature.
SPECIFICATION
GENERAL
Power requirement...............................................................................................DC 13.8V.
Current consumption..............................................................................................7A MAX.
POWER OUTPUT...................................................................................................4 X 40W.
FM SECTION
Frequency range.......................................................................87.5MHz -108MHz(EUROPE)
Usable sensitivity..........................................................................................................3uV.
I.F Frequency.......................................................................................................10.7MHz.
AM SECTION
Frequency range......................................................................522KHz - 1620KHz(EUROPE)
I.F Frequency..........................................................................................................450KHz
Usable Sensitivity........................................................................................................40dB
LINE - OUT [OPTION]
Output......................................................................................................CD MAX 800mv
CD PLAYER
System........................................................................................compact disc audio system.
Usable disc................................................................................CD/CD-R/CD-RW/MP3 disc
No of quantization bits 1bit.
Signal format.............................................................................sampling frequency 44.1KHz.
Frequency characteristics............................................................................20-100Hz < 5dB
10-20KHz < 5dB.
Signal to noise CD............................................................................................50dB [1KHz]
Number of channels..............................................................................................2 STEREO.
Chassis dimensions.......................................................................178[W] X 50[H] X 165[D].
Frequency range..........................................................................87.5MHz -107.9MHz(USA)
Frequency range............................................................................530KHz - 1710KHz(USA)
\\
\\
AUX LINE IN RED R
WHITE L
