POULAN PARTS LIST R R POULAN PRO PARTS LIST PARAMOUNT PARTS LIST
R
PARTS LIST
NEW
1 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
545011589
SST25C
DATE
10/31/08

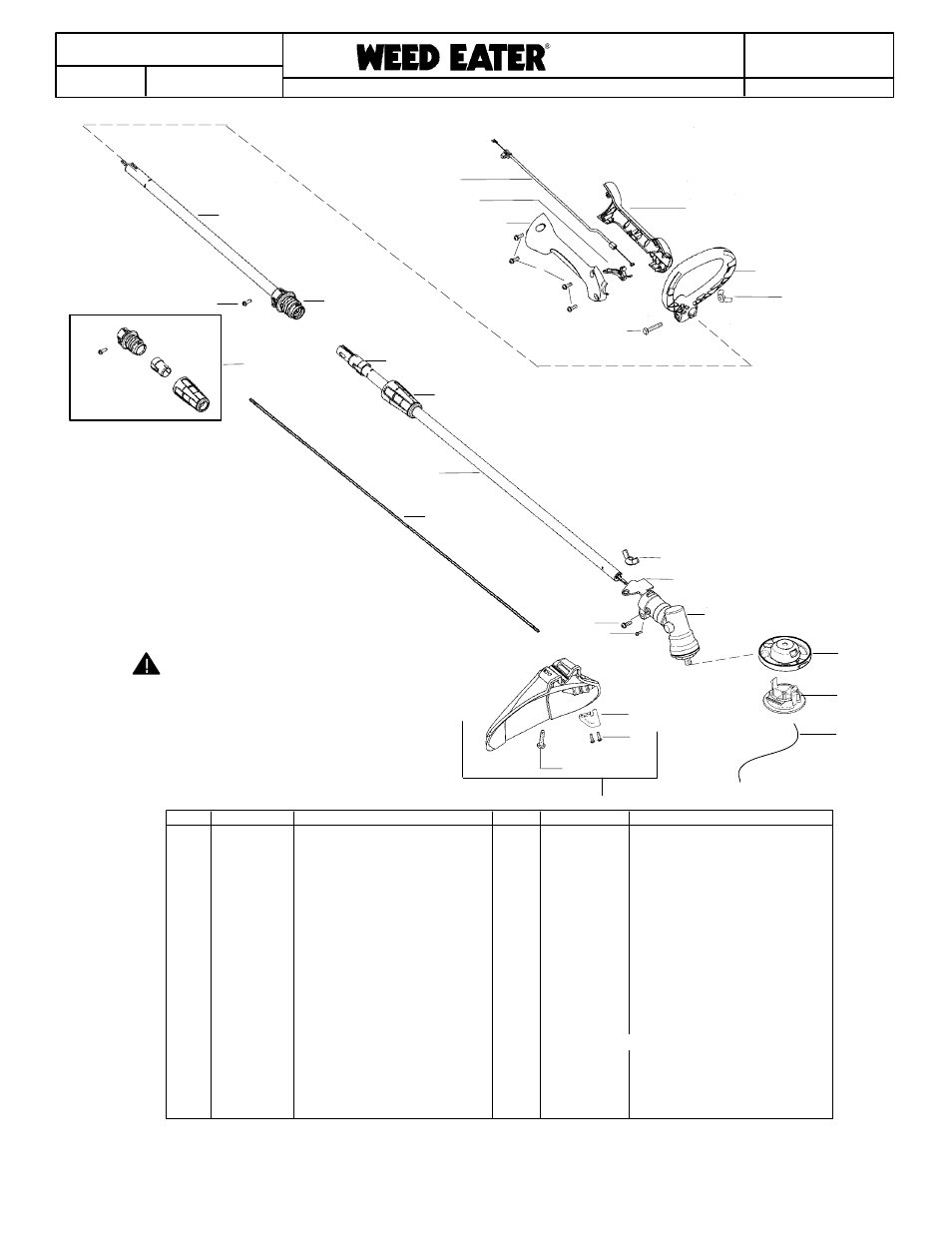

1. 530057991 Assy---Throttle Cable
2. 530058000 Trigger
3. 530057582 Throttle Hsg. (Right)
4. 530015880 Screw---Throttle Hsg.
5. 530015821 Bolt---Handle/Shield
6. 530057581 Throttle Hsg. (Left)
7. 530058580 Assy---Handle Assist (Incl. 5,8)
8. 530016152 Wingnut
9. 545008059 Kit---Shaft Upper (Incl. 10,11)
10. 530015880 Screw
11. --- --- --- Collet (Ref. 12)
12. 545008057 Kit---Coupler Shaft
(Incl. 10,11,13,14)
13. --- --- --- Collar---Shaft (Ref. 12)
14. --- --- --- Nut---Collet (Ref. 12)
15. 545008068 Kit---Shaft Lower (Incl. 13,14)
16. 545206701 Shaft---Flex
17. 530016014 Screw
18. 530016224 Screw---Alignment
19. 530015820 Bolt
20. 530052285 Line Limiter
21. 530015966 Screw---Line Limiter
22. 530071771 Kit---Shield Assy
(Incl. 19,20,21,23)
23. 530016152 Wingnut
24. 530096067 Bracket---Shield
25. 530096068 Assy---Gearbox
26. 545202401 Head---Fixed Line
27. 545202501 Cap---Fixed line
28. 545214501 Line .095 round (5 pcs)
545186797 Operator Manual
545207301 Decal---Shaft Warning
All repairs, adjustments
and maintenance not de-
scribed in the Operator’s
Manual must be performed
by qualified service per-
sonnel.
WARNING
21
20
23
22
