NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

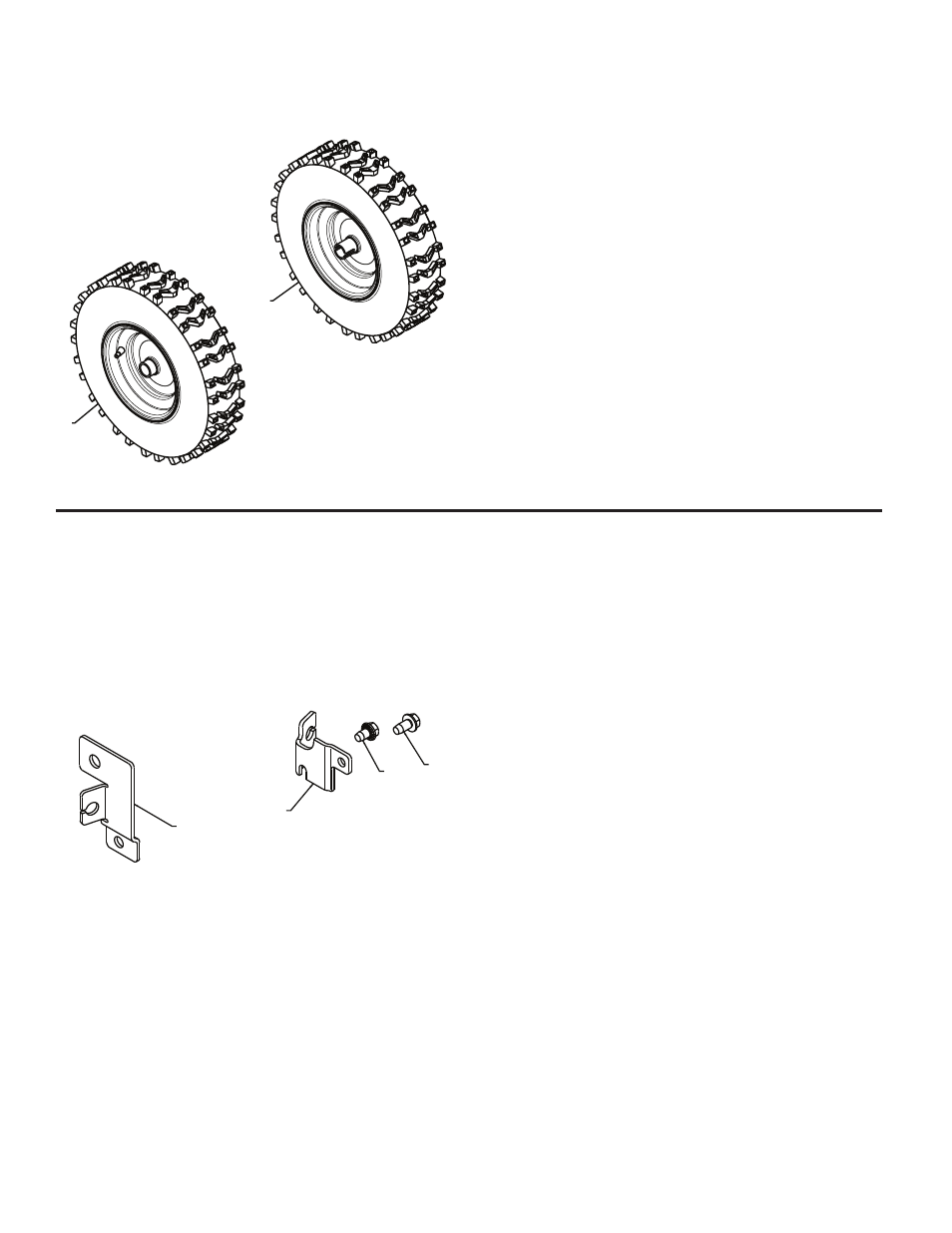

REPAIR PARTS SNOW THROWER - - MODEL NUMBER PP1150E27 (96198003304)
WHEELS
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
01.06.015-A
1 432337X421 WHEEL ASSEMBLY LH
2 432338X421 WHEEL ASSEMBLY RH
1
2
3
4
01.15.003-C
1 410293 CABLE BRACKET LH
2 410294 CABLE BRACKET RH
3 17490408 SCREW 1/4-20 X .500
4 17600406 SCREW 1/4-20 X .375
