Baxi Potterton Promax Combi HE Plus A Range G.C.No 47 393 23 - Manual (Page 11)

11

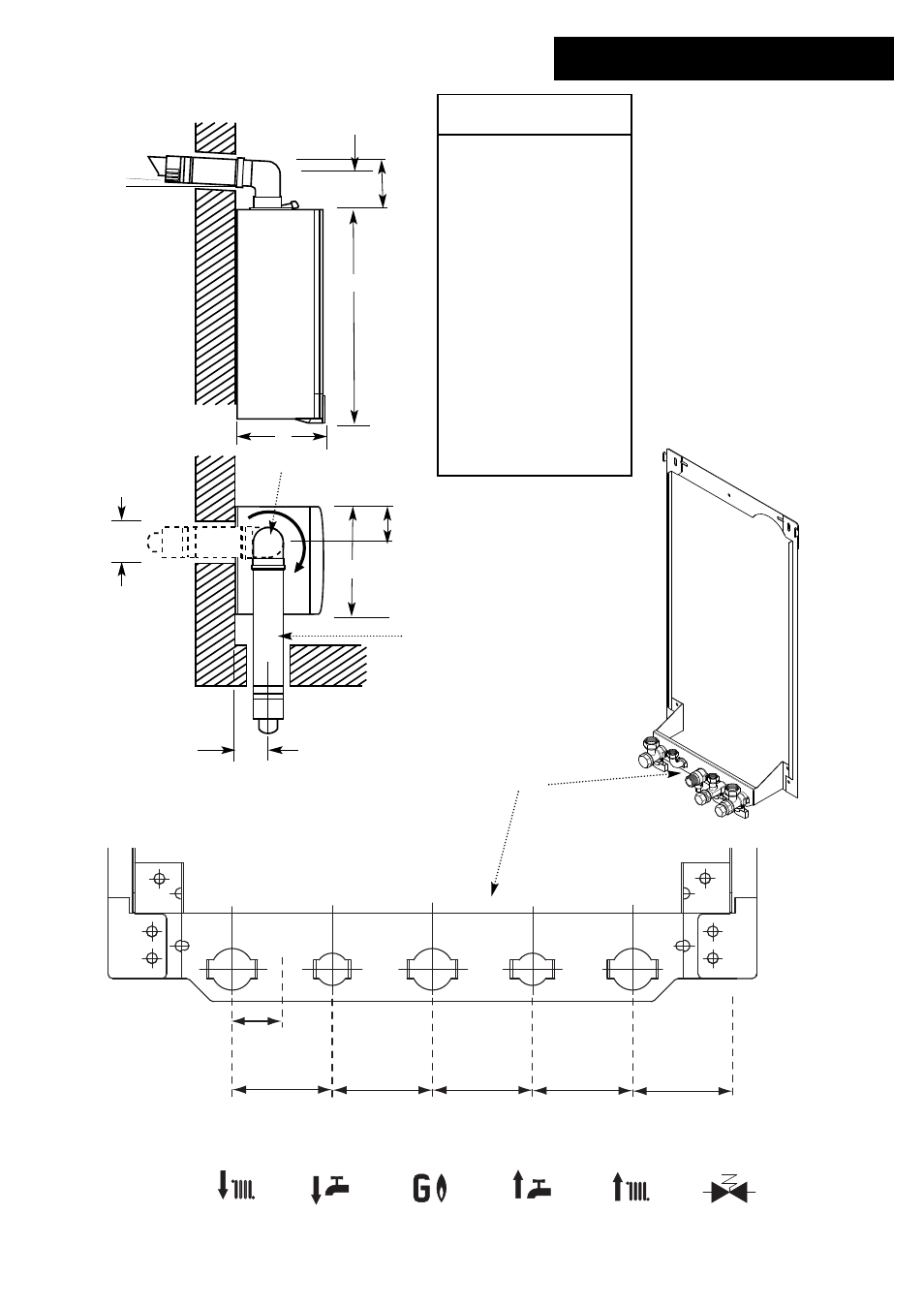

5.0 Dimensions and Fixings
© Baxi Heating UK Ltd 2013
Dimensions
A 780mm
B 345mm
C 450mm
D 116mm Ø Min.
E 185mm
(207mm for 80/125mm
flue systems)
F 145mm
G 131mm
H 180mm
Domestic Hot
Water Outlet
(15mm)
Cold Water
Inlet
(15mm)
Heating
Return
(22mm)
Heating
Flow
(22mm)
Pressure Relief
Valve
(15mm)
Gas
Inlet
(22mm)
65 mm 65 mm 65 mm 65 mm 65 mm
32.5 mm
Condensate
Drain
Tap Rail
360° Orientation
Tube Ø 100mm
D
C
B
A
E
G
F
At Least 1.5°
H
