The lcd monitor — rear view – Planar PE191M User Manual
Page 10
3
The LCD Monitor — Rear View

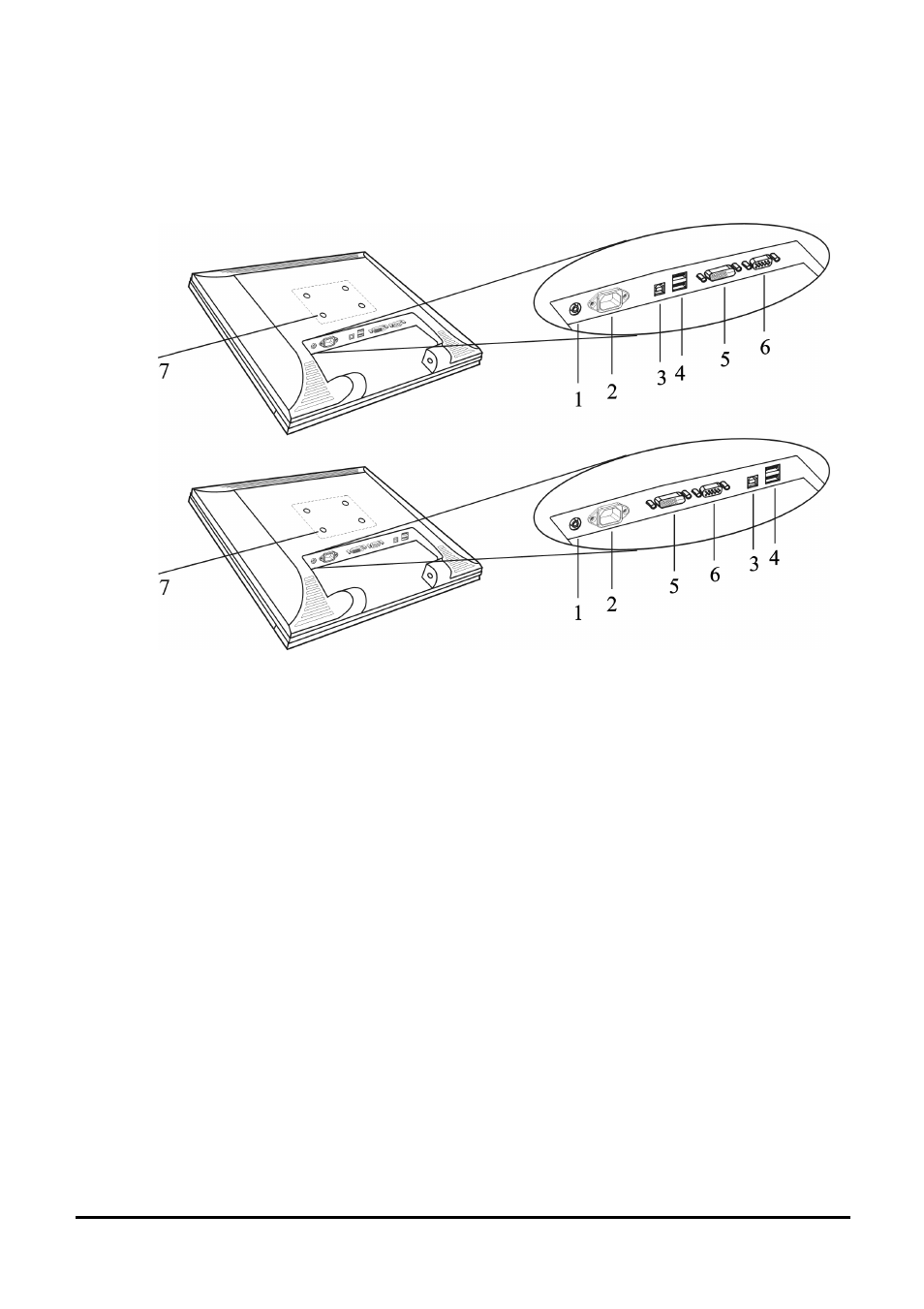

Figure 1-2: LCD Monitor’s Rear Ports
1. Audio Line-in (optional)
2. AC Power Jack
3. Upstream USB Port (optional)
4. Downstream USB Ports (optional)
5. Digital VGA Cable Connect (optional)
6. VGA Cable Connector
7. VESA interface: It can be mounted to VESA arm. (75mm pitch)
