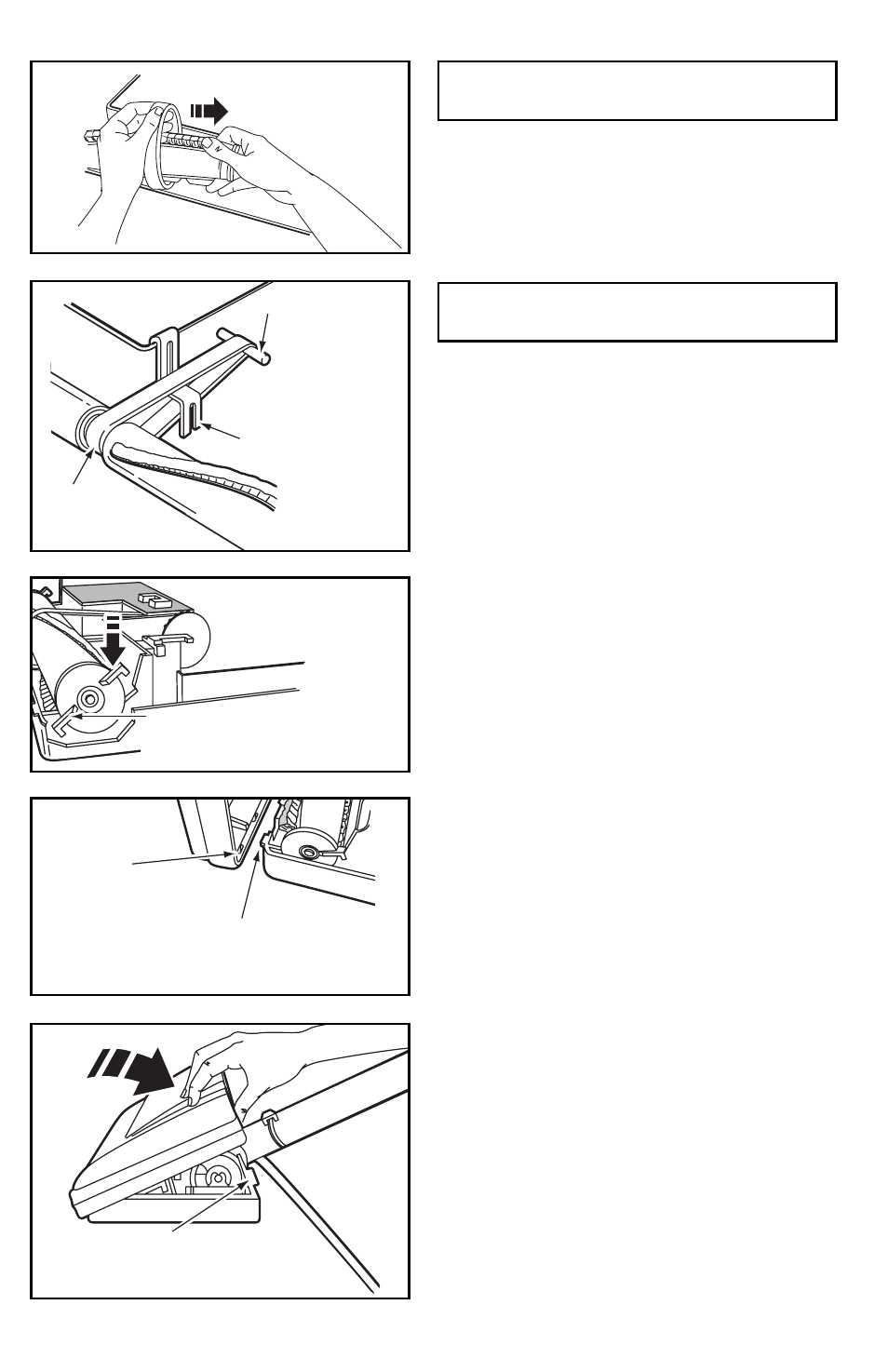

➢ ➢ Remove worn belt.
➢ ➢ Check and clean end cap areas. See
AGITATOR ASSEMBLY for picture of
complete agitator assembly.
Front Support Tab
Languette de support à l’avant
Pestaña delantera del soporte
Cover Slot
Fente du couvercle
Ranura de la cubierta
Front Base Tab
Languette à l’avant de la base
Pestaña delantera de la base
Rear Base Tab
Languette à l’arrière de la base
Pestaña posterior de la base
Belt Guard
Protège-courroie
Protector de correa
Motor Shaft
Arbre du moteur
Eje del
transmission
del motor
Belt
Courroie
Correa
➢ ➢ Install new belt in belt groove on the
agitator assembly, then over the motor
shaft. Be sure belt is under the belt guard.
➢ ➢ Insert both support tabs into the base slots.
Then snap end caps into place.
➢ ➢ Line up tabs on front of base with slots
inside the front cover.
➢ ➢ Tilt cover to back. Press cover firmly until
rear tabs snap into place.
➢ ➢ Turn POWER NOZZLE over. Replace the
cover screws and lower the pile height
adjustment rollers into place.
To Remove Belt
To Replace Belt
