PYLE Audio PL2DNTV7 User Manual
Page 15

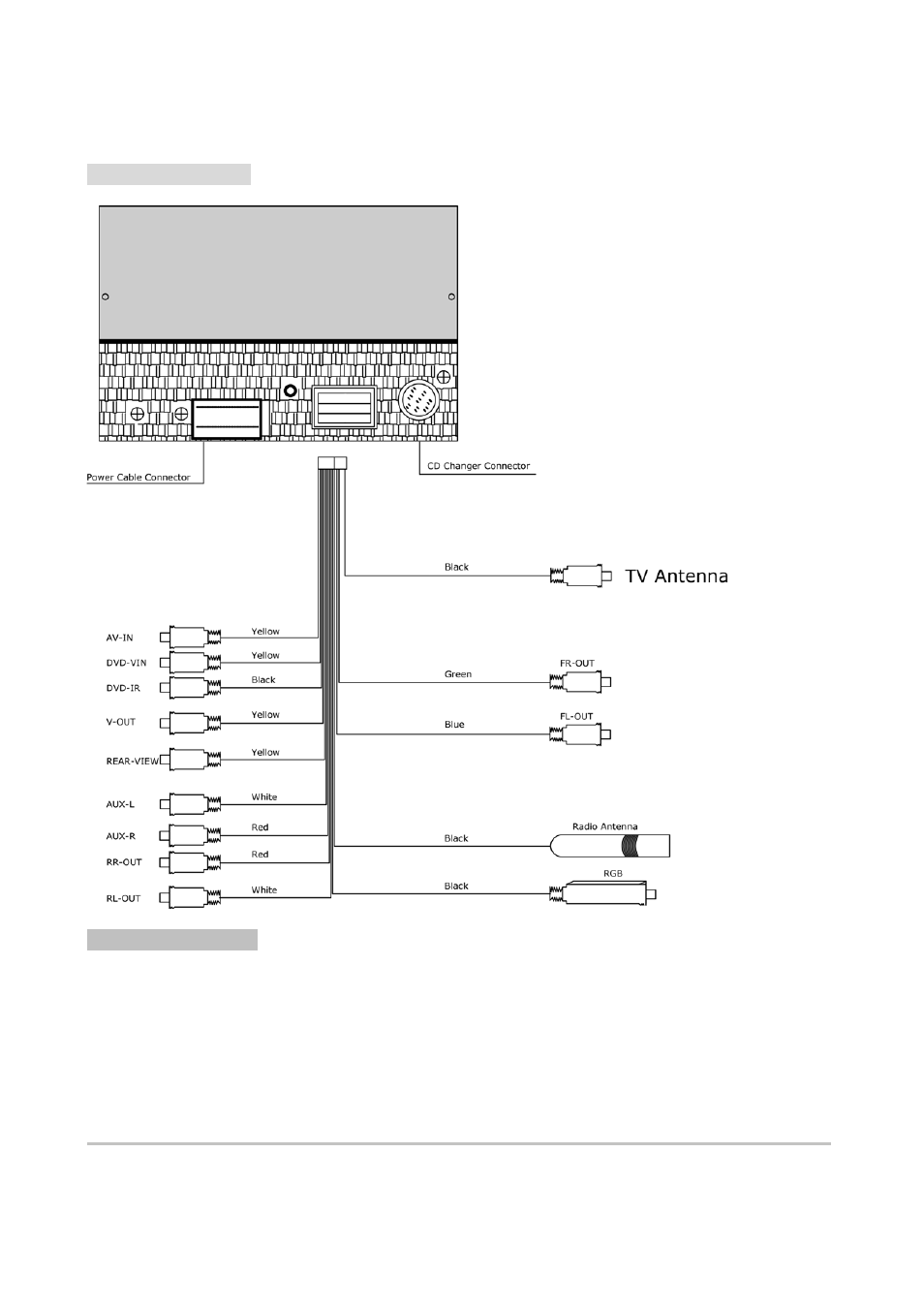

Connection Layout
Connect to your car
1. To prevent short circuits, remove the key from the ignition and disconnected the terminal of
the battery.
2. Connect the wiring harness cables in the following order: ground wire, battery wire, ignition
wire. Connect the input and output cable correctly to each unit.
3. Connect the wiring harness connector to the monitor unit.
13
