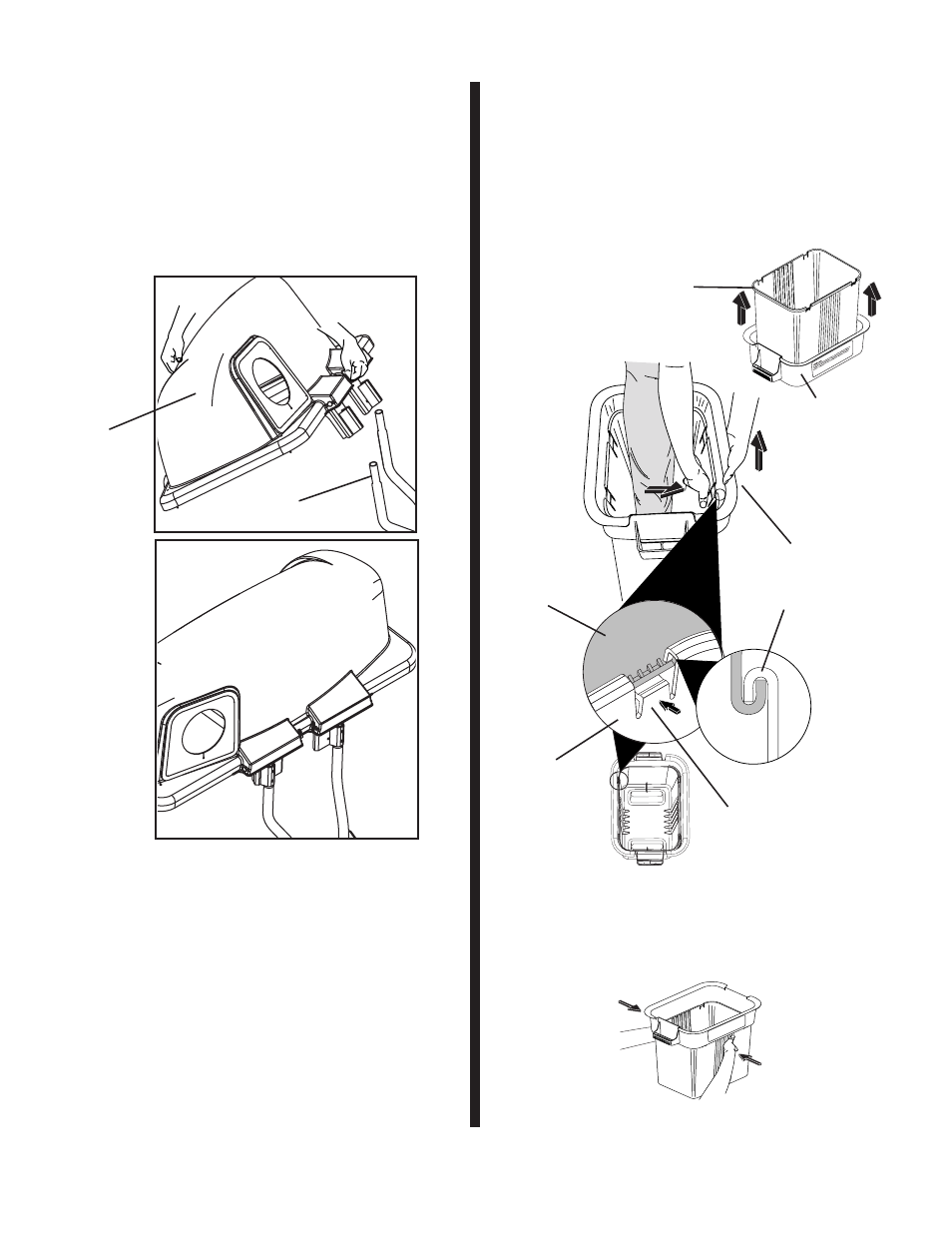

CONTAINER ASSEMBLY (See Fig. 3)
1. Place bottom half inside of top half, as shown.
2. Place one foot inside bottom half and lift top half to
meet bottom half.
3. Press halves tightly together while lifting top to lock
into place as shown.
IMPORTANT: BEFORE LOCKING THE TABS, HOOKED EDGES
ON BOTH HALVES MUST OVERLAP TO FORM SEAL AS SHOWN
IN INSET.
4. Repeat for other containers.
PRESS TOGETHER
TO FORM SEAL
WHILE LIFTING
TOP HALF
02089
CONTAINER
BOTTOM
HALF
CONTAINER
TOP HALF
ASSEMBLY CHECK: Squeeze sides of lower half of con-
tain er and check that there is no gap between upper and
lower halves. If a gap appears, unlock tabs to separate
container halves and repeat instructions above.
LOCKING
TAB
WA
RNI
NG
Do
no
t o
pe
rat
e mo
we
r u
nle
ss
co
ntai
ner
is
prop
e
rly
iss
ub
jec
t to
we
ar
an
d d
eti
eri
ora
tio
n.
Che
ck
ba
g f
req
u
en
tly.
Re
pla
ce
wh
en
crac
ke
d o
r d
ama
ge
d.
Us
e o
nly
a r
ec
om
me
nd
ed
rep
lac
em
ent
con
tai
ner
.
02097
FIG. 3
3
027
39
CONTAINER
BOTTOM HALF
CONTAINER
TOP HALF
2
MOUNTING COVER ASSEMBLY TO
SUPPORT ASSEMBLY (See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain the
as sis tance of another person for mounting cover assembly
to tractor.
1. Position cover assembly on ground behind tractor.
2. Lift and rotate cover to align cover brackets with support
assembly tubes.
3. Slide cover assembly down onto the support tubes.
FIG. 2
03024
COVER
ASSEMBLY
SUPPORT
ASSEMBLY
