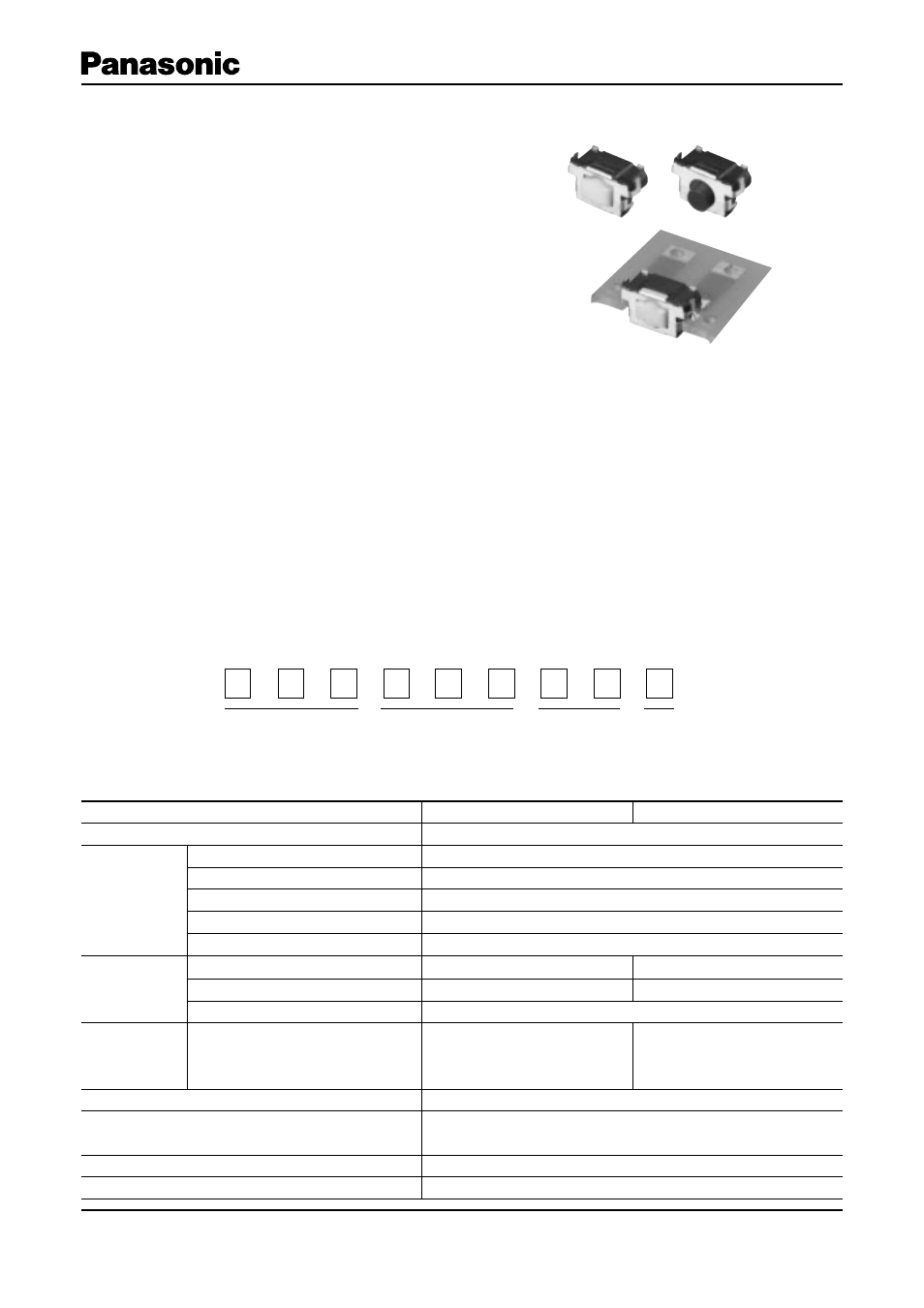

Panasonic Light Touch Switches EVQP4 - Manual

Light Touch Switches/EVQP4
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
– ES110 –
1
E
2
V
3
Q
4 5 6 7 8 9
P 4
Product Code Type Height Push Plate Color
■
Features
●
External dimensions : 6.2 mm ҂2.55 mm (Excluding
the push plate), Height 3.5 mm (EVQP4 Type : Printed
circuit board being as low as 1.35 mm)
●
Side-operational middle stroke type ( 0.7 mm )
with a high operating force (5.0 N)
●
Improved soldering strength in the operating direction
when mounted on PC board edge
■
Specifi cations
■
Recommended Ap pli ca tions
●
Operation switches for portable electronic equipment
(Mobile phones, Digital still cameras, Camcorders
Portable audio players, etc.)
●
Keyless entry (car electronics)
●
Car audio equipment
■
Explanation of Part Numbers
6.2 mm
҂2.5 mm Side-operational Edge Mount
Light Touch Switch es
Type:
EVQP4
Travel Type Middle Push Travel Short Push Travel
Type Snap action / Push-on type SPST
Electrical
Rating 10 µA 2 Vdc to 20 mA 15 Vdc (Resistive load)
Contact Resistance 100 m ȑ max.
Insulation Resistance 100 M ȑ min. (at 100 Vdc)
Dielectric With stand ing Voltage 250 Vac (1 minute)
Bouncing 10 ms max. (ON, OFF)
Mechanical
Operating Force 2.5 N, 3.5 N, 5.0 N 1.0 N, 1.6 N, 2.4 N, 3.5 N
Travel 0.70 mm±0.2 mm 0.25 mm
–0.15
mm
Push Strength 50 N (1 minute)
Endurance Operating Life
2.5 N:1000000 cycles min.
3.5 N: 500000 cycles min.
5.0 N: 200000 cycles min.
1.0 N, 1.6 N: 1000000 cycles min.
2.4 N: 500000 cycles min.
3.5 N: 200000 cycles min.
Operating Temperature –40 °C to +85 °C
Storage Tem per a ture
–40 °C to +85 °C (Bulk)
–20 °C to +60 °C (Taping)
Minimum Quantity/Packing Unit 2500 pcs. Embossed Taping (Reel Pack)
Quantity/Carton 12500 pcs.
+0.05
Oct. 2012 00
