Powerware 9315s User Manual
Page 69
8--3
Powerware 9315 Parallel Capacity/Redundant System with PHP SSBM
164201373 Rev. A
092402
110915520
SMB CONTROL PANEL (OPTIONAL)
WILL BE ONE OF THE FOLLOWING:
SMB ELECTRICAL INTERLOCK (A10)
OR
SMB ELECTRICAL INTERLOCK WITH
REDUNDANT CBP (A11)
NETWORK POWER SUPPLY PANEL (A13)
CUSTOMER INTERFACE PANEL
SEE ENLARGED VIEW OF LBB AND MBP
KEY SWITCH PANEL ON SHEET 3
POWERNODE PANEL (A1)
SEE SHT 3 FOR DETAIL B---B
FRONT VIEW
FRONT DOORS REMOVED

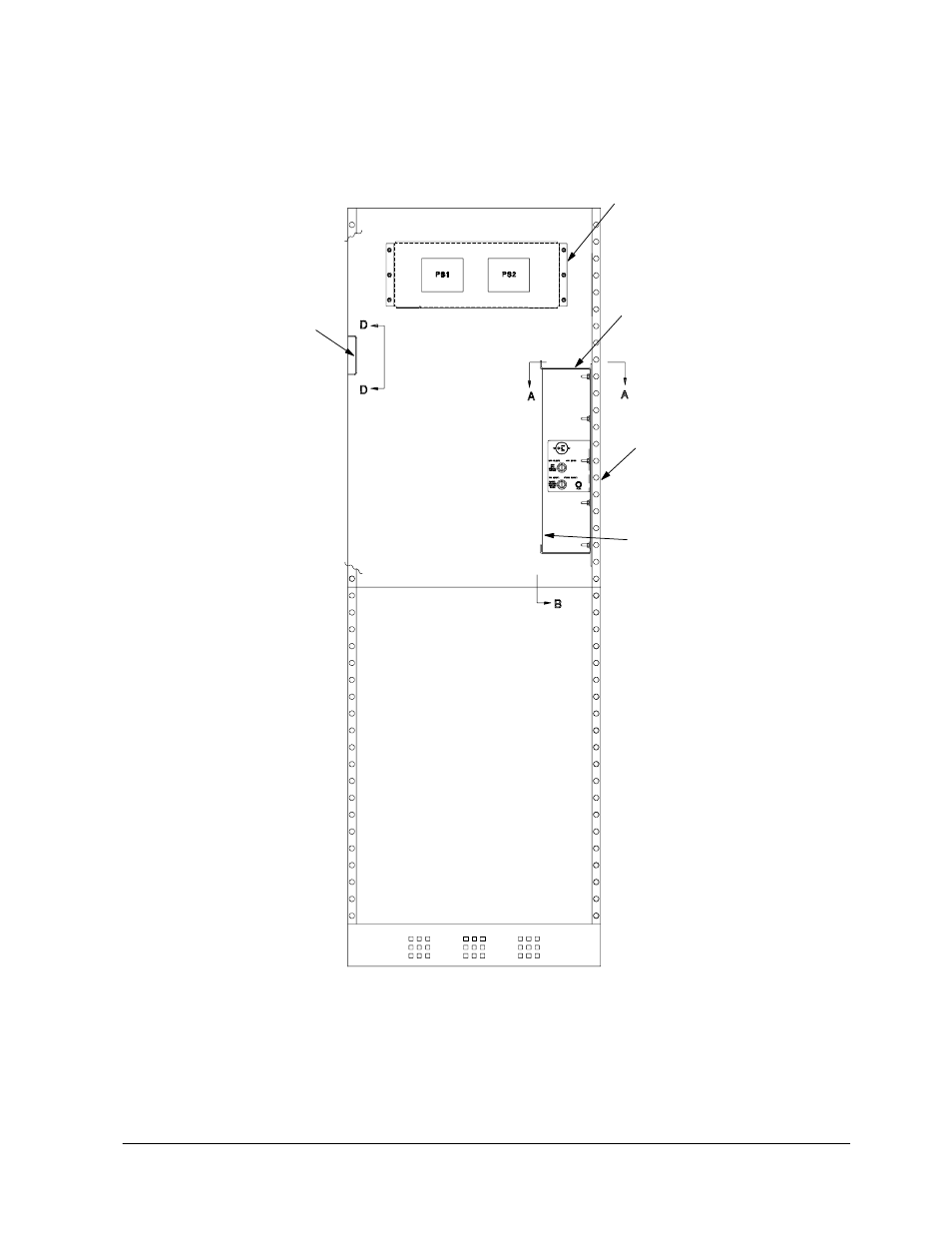

Figure 8---1. Typical SSBM Control Section (Sheet 2 of 4)
