Page 22

NOTE: Each full turn of the adjustment nut will change
mower height about 1/8".
• Recheck measurements, adjust if necessary until front

tip of blade is 1/8" to 1/2" lower than the rear tip.

• Hold adjustment nut in position with wrench and tighten

jam nut securely against adjustment nut.

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT
(See Fig. 29)

MOWER DRIVE BELT REMOVAL
• Park tractor on a level surface. En

gage parking

brake.

• Lower attachment lift lever to its lowest position.
• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring
loaded. Have a fi rm grip on rod and
release slowly.

• Remove screws (P) from mandrel covers (Q) and re-

move covers.

• Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck
surface.

• Remove belt from electric clutch pulley (M), both man-

drel pulleys (R) and all idler pulleys (S).

MOWER DRIVE BELT INSTALLATION
• Install belt around all mandrel pulleys (R) and around

idler pulleys (S) as shown.

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower
pulley grooves.
• Reassemble mandrel covers (Q). Securely tighten all

screws.

• Engage belt tension rod (K) on locking bracket (L).

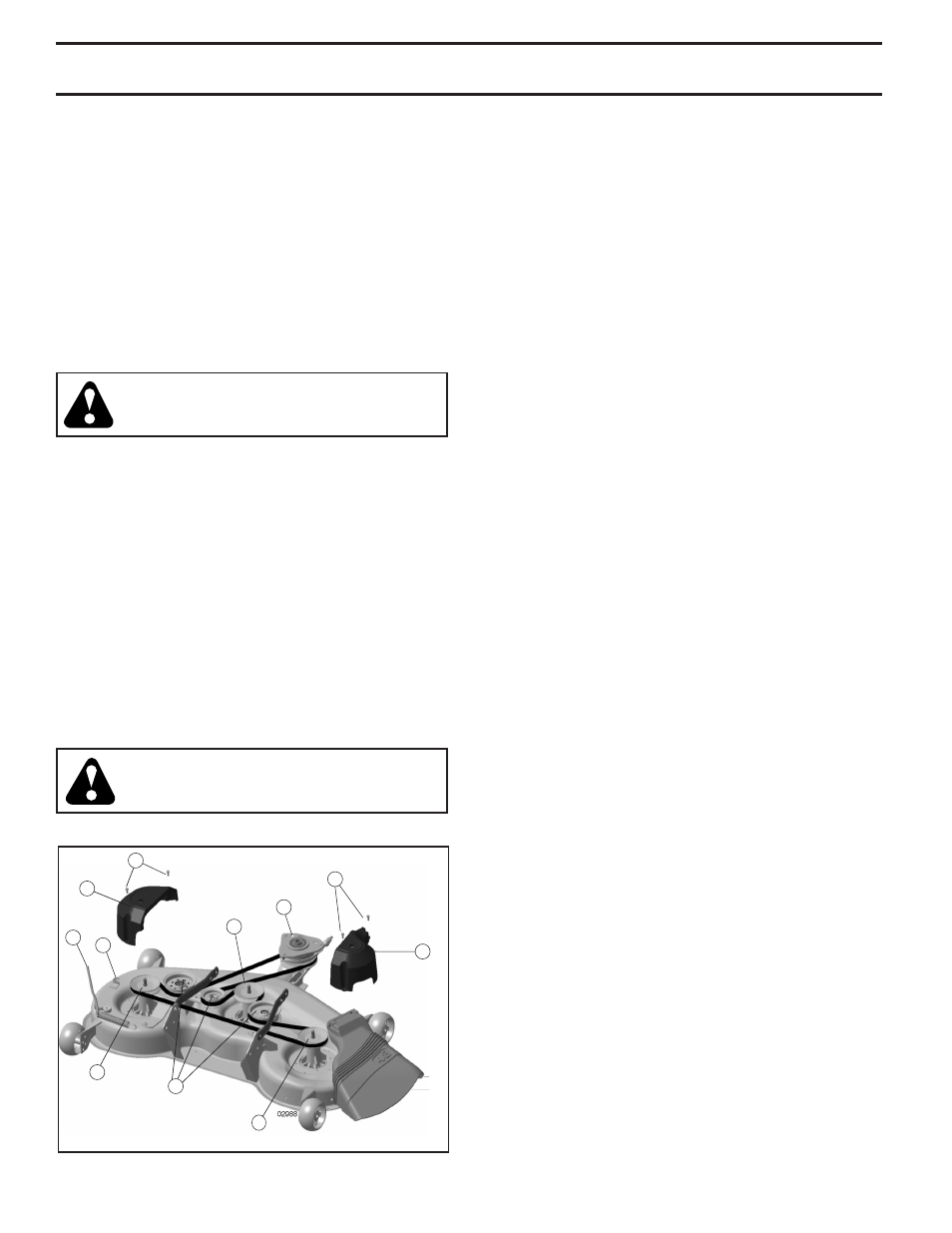

FIG. 29

TO REPLACE MOTION DRIVE BELT
(See Fig. 30)

Park the tractor on level surface. En gage parking brake.
For as sis tance, there is a belt installation guide decal on
bottom side of left footrest.

BELT REMOVAL -
• Remove mower (See “TO RE MOVE MOWER” in this

section of manual).

NOTE: Observe entire motion drive belt and position of all
belt guides and keepers.
• Disconnect clutch wire harness (A).
• Remove anti-rotation link (B) on right side of tractor.
• Remove belt from stationary idler (C) and clutching

idler (D).

• Remove belt from centerspan idler (E).
• Pull belt slack toward rear of trac tor. Carefully remove

belt up wards from trans mis sion input pulley and over
cooling fan blades (F).

• Remove belt downward from engine pulley and around

electric clutch (G).

• Slide belt toward rear of tractor, off the steering plate

(H) and remove from tractor.

BELT INSTALLATION -
• Install new belt from tractor rear to front, over the steer-

ing plate (H) and above clutch brake pedal shaft (J).

• Pull belt toward front of tractor and roll belt around

electric clutch and onto engine pulley (G).

• Pull belt toward rear of tractor. Carefully work belt down

around transmission cooling fan and onto the input
pulley (F). Be sure belt is inside the belt keeper.

• Install belt on centerspan idler (E).
• Install belt through stationary idler (C) and clutch ing

idler (D).

• Reinstall anti-rotation link (B) on right side of tractor.

Tighten securely.

• Reconnect clutch harness (A).
• Make sure belt is in all pulley grooves and in side all

belt guides and keep ers.

• Install mower (See “TO IN STALL MOWER” in this sec-

tion of manual).

CAUTION: Belt tension rod is spring
loaded. Have a tight grip on rod and
engage slowly.

• Raise attachment lift lever to highest position.
