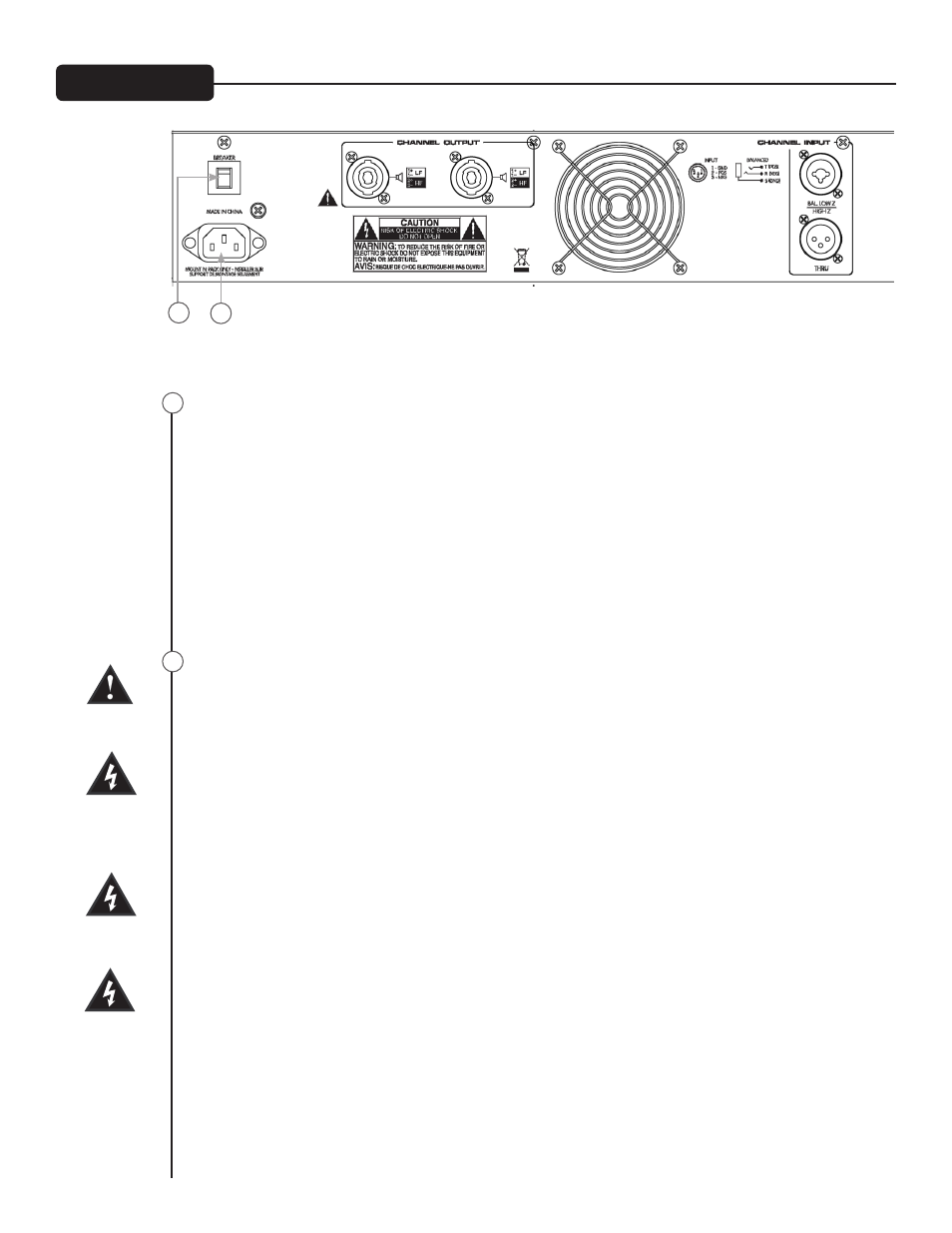

Rear Panel
CIRCUIT BREAKER
There is one circuit BREAKER on the PV® amplifier that limits current to the associated power
transformer and protects it from overheating and possible destruction due to fault conditions in the unit.
The trip current values have been carefully chosen to allow reasonable continuous power output perfor-
mance, while still protecting the power transformer. This breaker should not trip unless there is a fault in
the amplifier circuitry that causes excessive mains current draw. However, abnormal conditions such as
a short circuit on either or both channels, or continuous operation at overload or clipping can cause the
breaker to trip. If this occurs, turn the POWER switch OFF, wait a brief period of time to allow the unit to
cool down, and reset the breaker. Efforts should be made to correct the cause of the overload if
possible. When tripped, the button on the BREAKER will be outward approximately 1/4” and can be
reset by pushing inward and upward. A normal reset button is relatively flat. If the breaker trips instantly
each time you attempt to turn the unit on, it should be taken to a qualified Peavey Service Center for
repair.
IEC MAINS CONNECTOR
This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for
the intended operating voltage is included in the carton.
U.S. DOMESTIC AC MAINS CORD
The mains cord supplied with the unit is a heavy-duty, three-conductor type with a conventional 120 VAC
plug with ground pin. It should be connected to an independent circuit capable of continuously support-
ing at least 15 amps. This is particularly critical for sustained high-power applications. If the outlet used
does not have a ground pin, a suitable grounding adapter should be used and the third wire grounded
properly.
Never break off the ground pin on any equipment. It is provided for your safety.
The use of extension cords should be avoided but, if necessary, always use a three-wire type with at
least a #14 AWG wire size. The use of lighter wire will severely limit the power capability of this amplifier.
Always use a qualified electrician to install any new electrical equipment. To prevent the risk of shock or
fire hazard, always be sure that the amplifier and all associated equipment is properly grounded.
NOTE: FOR UK ONLY
If the colors of the wires in the mains lead of this unit do not correspond with the colored markings iden-
tifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must
be connected to the terminal that is marked by the letter E, the earth symbol, colored green, or colored
green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked
with the letter N or the color black. (3) The wire that is colored brown must be connected to the terminal
that is marked with the letter L or the color red.
