Installation
 Attaching the wire
[Multi-purpose camera AK-HC1500G ]
The camera comes with a wire for preventing the camera from dropping. Follow the instructions below to use it to couple the
camera to the pan-tilt head.
 Use the wire mounting screw (M48 mm with flat washer and spring washer) to attach one end of the wire to the pan-tilt
head’s arm.
 Use the wire mounting screw (Inch screw with flat washer and spring washer) to attach the other end of the wire on the top
panel of the camera.

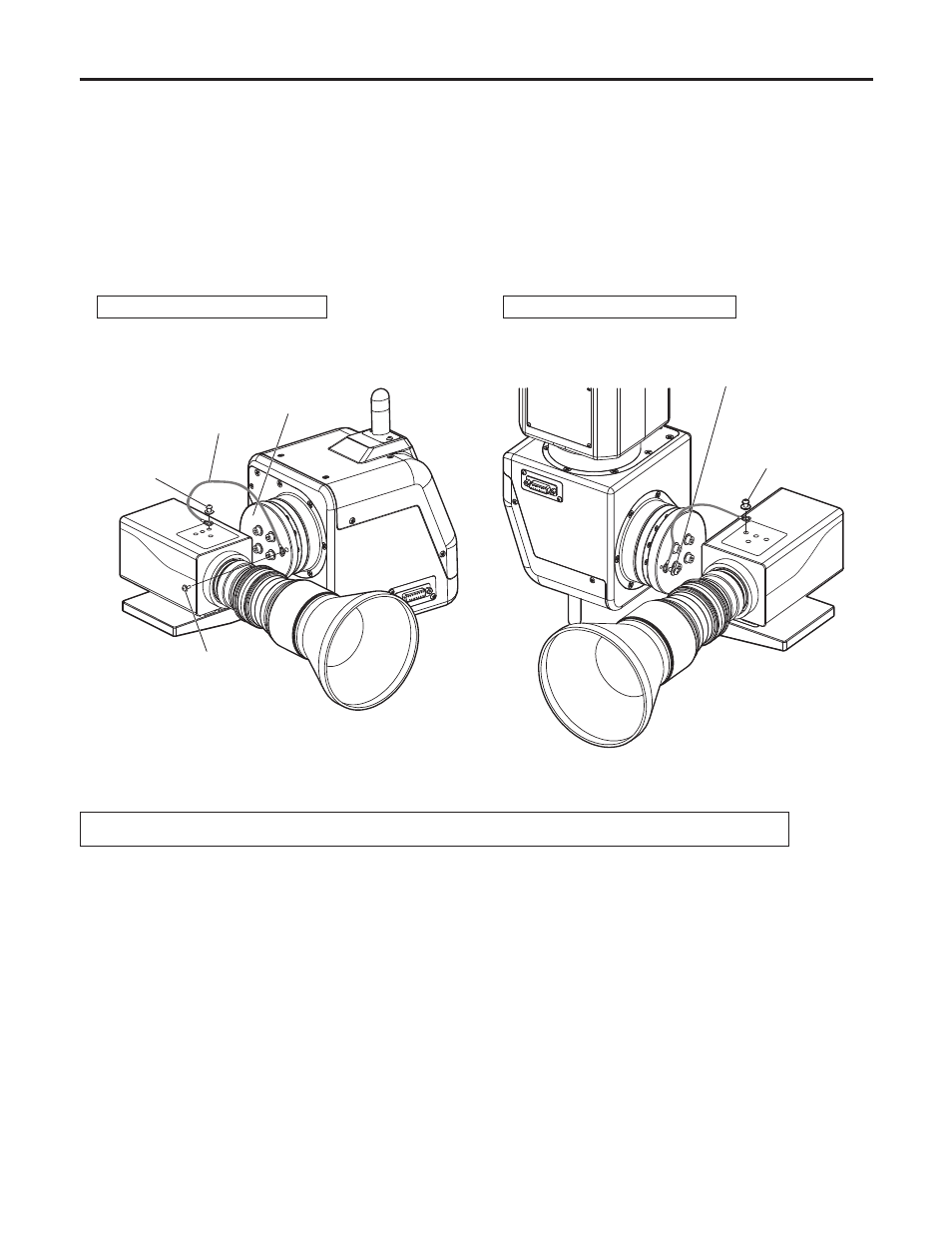

For a stand-alone installation
Wire mounting
screw (Inch
screw with flat
washer and
spring washer)
Wire
Arm
M48 mm wire
mounting screw with
flat washer and spring
washer
 Camera: AK-HC1500G
For installation on the ceiling
M48 mm wire mounting
screw with flat washer and
spring washer
Wire mounting
screw (Inch screw
with flat washer and
spring washer)
 Camera: AK-HC1500G
 Be absolutely sure to tighten up the screws securely using a tool such as a screwdriver.
