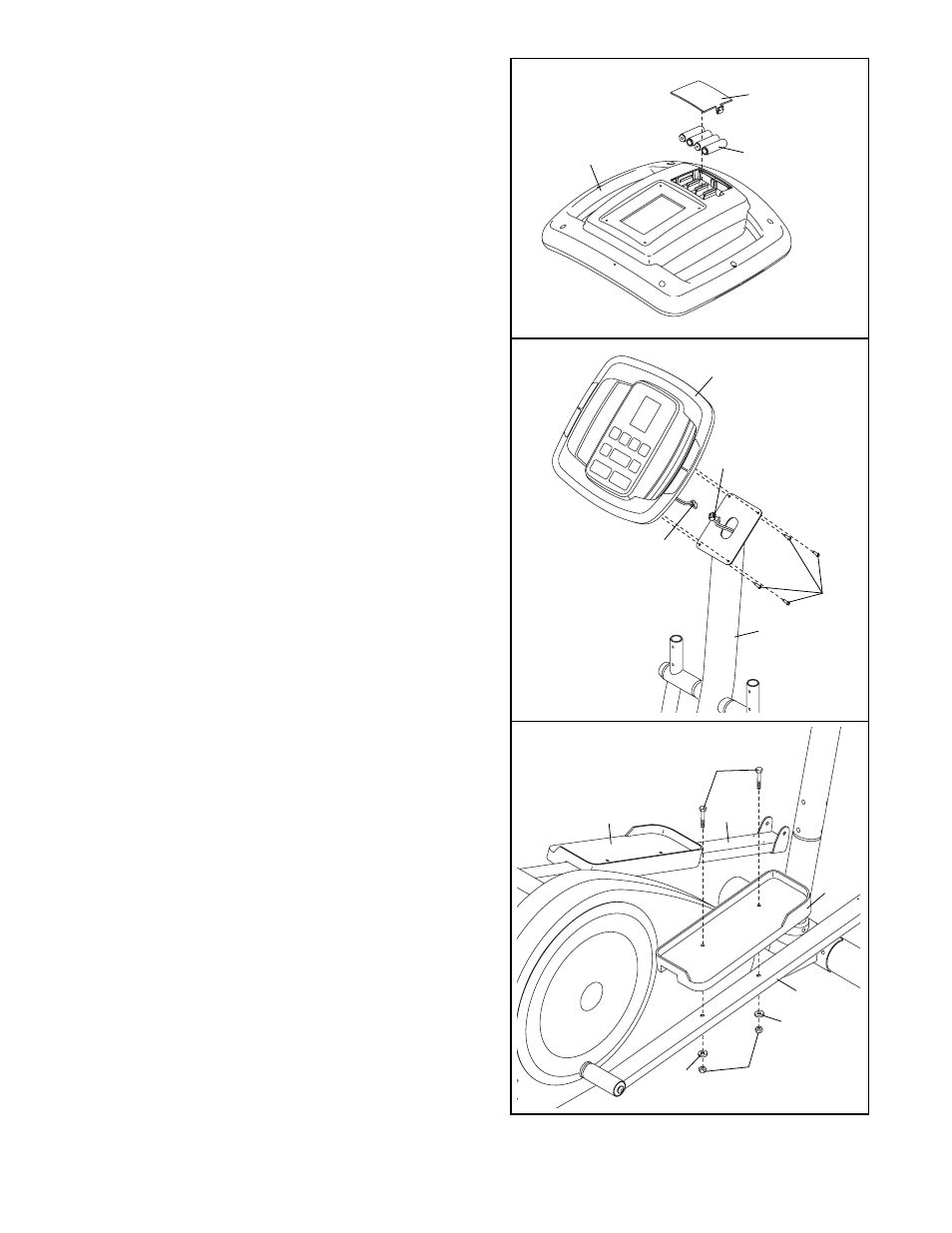

5. While another person holds the Console (22) near
the top of the Upright (3), connect the console wire
to the Upper Wire (75).
Attach the Console (22) to the Upright (3) with four
Console Screws (68). Be careful to avoid pinch-
ing the wires.
5
22
75
3
68
Console Wire
22
Batteries
Battery Cover
4
4. The Console (22) requires four “AA” batteries; alka-
line batteries are recommended. Remove the bat-
tery cover from the back of the Console and insert
four batteries into the Console; make sure that the
batteries are oriented as shown by the diagram
inside the Console. Then, reattach the battery
cover.
Avoid pinching
the wires during
this step
6
57
8 4
52
6. Identify the Right Pedal (63), which has an “R”
molded into its bottom surface, and the Right Pedal
Tube (64), which is marked with a sticker.
Attach the Right Pedal (63) to the Right Pedal
Tube (64) with two M8 x 1 9/16" Hex Bolts (41), two
M8 Washers (52), and two M8 Nylon Locknuts (57).
Attach the Left Pedal (8) to the Left Pedal Tube
(4) in the same way.
64
63
52
41
