TIE CABINET INSTALLATION
EATON Powerware ® 9355 Tie Cabinet (20/30 kVA) Installation Guide S 164201630 Rev A www.powerware.com 13
19. Hardwire the output terminations from the UPS to the Tie Cabinet (see Figure 7).
20. Repeat Steps 11 through 19 for each UPS.
Neutral
Ground
Line 1
Line 2
Line 3

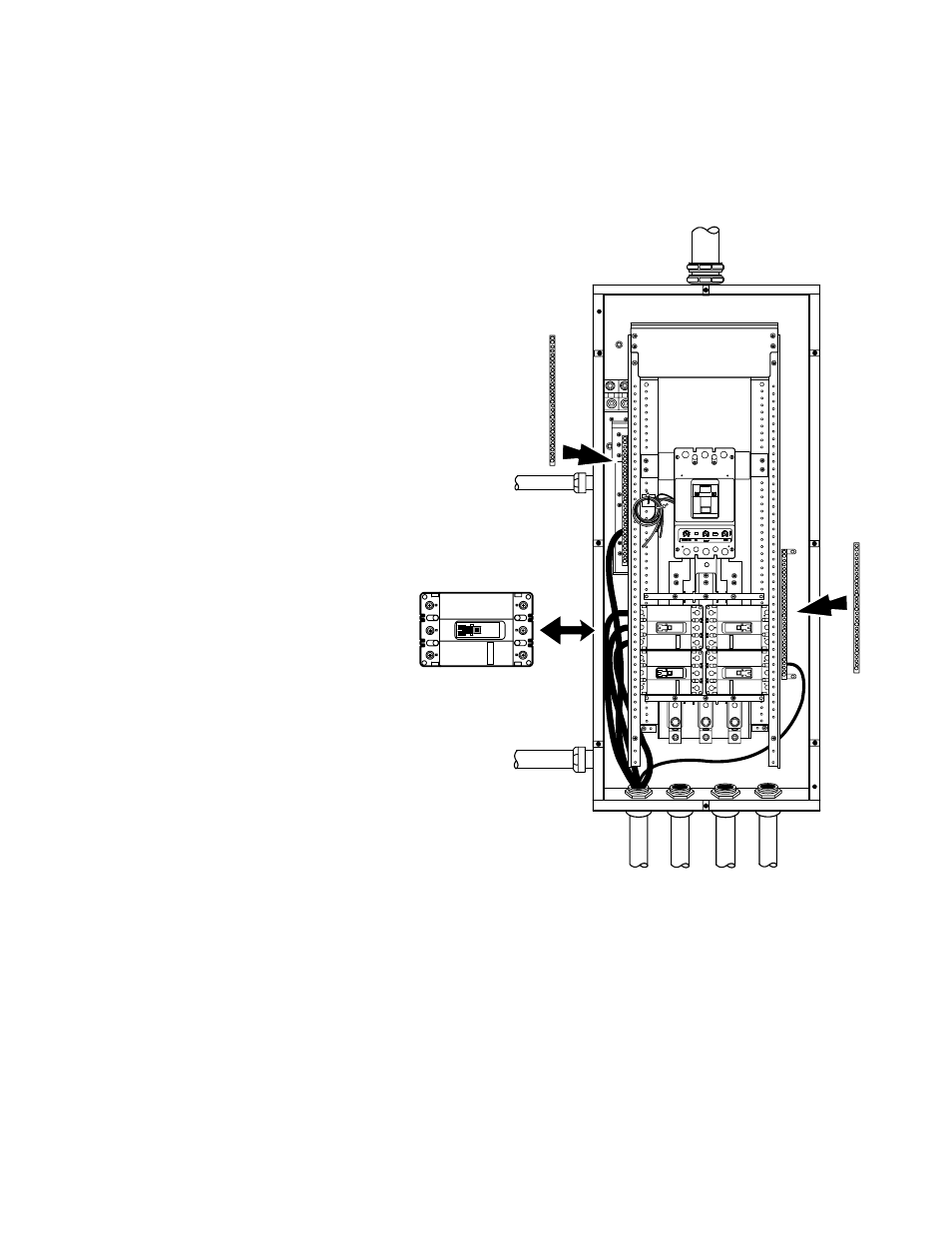

Figure 7. UPS Output to Tie Cabinet Wiring
