12
Fig. 15
Fig. 12
Fig. 13
Fig. 14

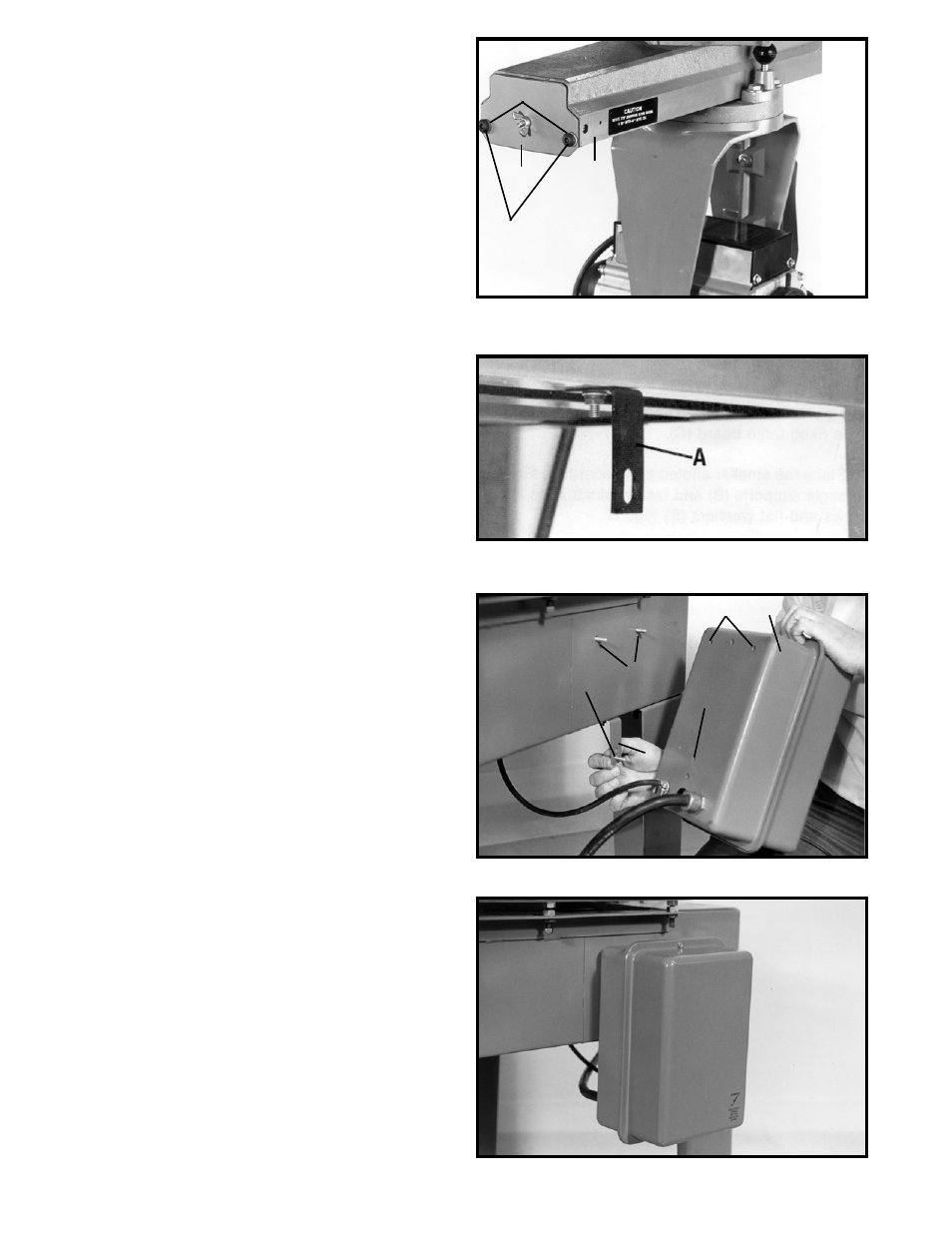

3. Fig. 15, illustrates the starter box assembled to the
base.
ASSEMBLING STARTER BOX TO
BASE (33-891 AND 33-892 MODELS)
If you purchased your machine with magnetic starter,
transformer and overload protection, assemble the
starter box to the base, as follows:
1. Assemble bracket (A) to the bottom of the right side
of saw base, as shown in Fig. 13. Place a 1/4" flat
washer onto a 1/4-20 x 3/4" hex head screw and insert
screw through hole in the bottom of the right side of the
saw base. Place the bracket (A) Fig. 13 onto the screw,
place a 1/4" lock washer onto the screw and thread a
1/4-20 hex nut onto screw and tighten securely.
2. Assemble the starter box (B) Fig. 14, to the right side
of the base. Place a 1/4" lockwasher onto a 1/4-20 x 1/2"
hex head screw, place a 1/4" flat washer on the screw
and insert the hex head screw (C), through the hole in the
in the bracket (E), and thread screw into the weld nut (D)
Fig. 14, in the back of the starter box (B). Repeat this
process for the two remaining holes in the base (G) and
the holes (F) in the starter box.
8. Assemble end cap (N) Fig. 12, to the rear of track
arm assembly (A) and fasten with two 5/16-18 x 3/4"
button head screws (P) and 5/16" lockwashers (Q)
supplied.
N
P
A
B
C
Q
D
E
F
G
