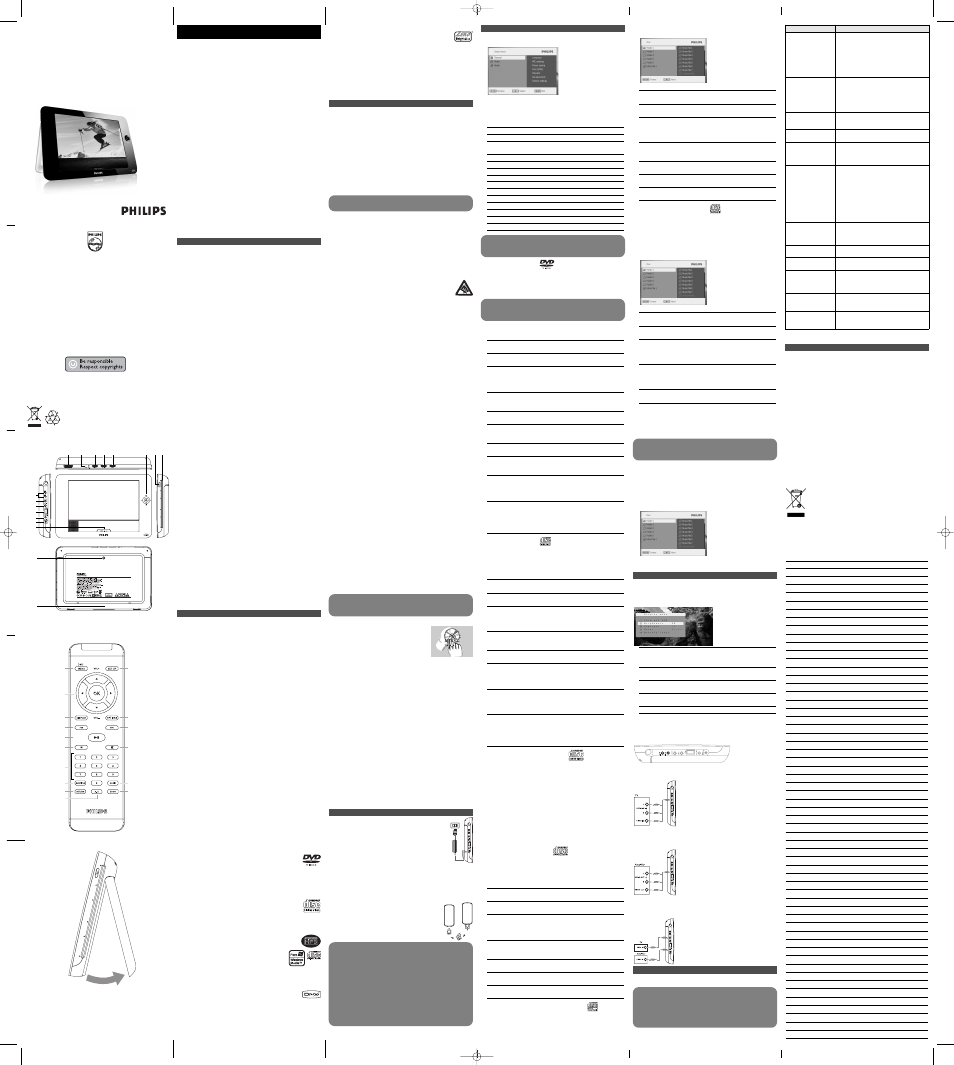

Philips PET830/93 User Manual
English
4.1 Charge the DVD player
Plug in the AC/DC adaptor
• The RED LED indicates that charging is in progress.
When the set is not in use, it will take about 4 hours to
fully charge it. However, when in use, it will take more
than 8 hours to fully charge it.*
• The RED LED will turn off when the set is fully
charged. When the low battery icon appears on the
screen, please charge the player.
* Rechargeable batteries have a limited number of charge cycles
and may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
4.2 Powering your remote control
1
Open the battery compartment. Remove the
protective plastic tab (first time users only).
2
Insert 1 x lithium 3V battery, type CR2025, then
close the compartment.
CAUTION
User manual
PET830
Portable DVD player
1
2
3
2
5
3
4
1
6
7
8
9
10
11
12
13
14
15
16
Printed in China
wk7234
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V.
or their respective owners
2006 © Koninklijke Philips Electronics N.V. All rights reserved.
1
2
3
12
13
4 5
6 7 8
9
10
11
14
15
17
16
English
1 Control elements and functional components
5 Start up
2 Introduction
4 Charging the units
3 General information
1.1 Top of the player (see figure 1)
1 POWER ON/OFF
Switch the player on / off
2 RESET
Reset the player when it hangs
3 DISPLAY
Adjust the display value of the system
4 OPTIONS
Access additional functions
5 MENU
Display the DVD disc menu
1.2 Left side of the player (see figure 1)
9 Headphone jack
10 AV OUT
Audio video output
11 AV IN
Audio video input
12 USB
USB connector
13 Coaxial
Digital audio output
14 DC IN
Charger / Adapter connection for power supply
1.3 Front side of the player (see figure 1)
6
2;
OK or play/pause
3 / 4
Up/down navigation key or up/down volume
control during playback
J( / )K
Left/right navigation key or previous/next track
or fast search backward/forward
15 POWER
•IR•CHG
POWER
Power LED in green
IR
IR sensor
Charging
Charging LED appears in RED during charging
and goes off when fully charged.
1.4 Right side of the player (see figure 1)
7
9 /
Press once to stop playback. Press twice to eject
the disc
8 Disc slot
1.5 Right side of the player (see figure 1)
16 Car mounting screw hole
17 Stand
1.6 Remote Control (see figure 2)
1 MENU
Display MENU page
2
3, 4, 1, 2
Up / down / left / right navigation key
OK
Confirm selection
VOL+
/ -
Volume control
3 DISPLAY
Adjust the display value of the system
4
J(
Skip to previous chapter, track or title
5
2;
Start / pause / resume playback
6
9
Press twice to stop playback
7 0
- 9
Numeric keypad
8 SUBTITLE
Subtitle language selector
9 RETURN
For VCD menu page
10 A - B
To repeat or loop a sequence in a title
11 SETUP
Enter SETUP menu
12 OPTION
Access additional functions
13
)K
Skip to next chapter, track or title
14 s
Mute player volume
15 AUDIO
Audio language selector
16 ZOOM
Enlarge video image
1.7 Desk stand of the player (see figure 3)
You can prop up the DVD player on your table for movie
watching.
Pull out the stand at the rear of the player.
2.1 Your portable DVD player
Your portable DVD player plays digital video discs conforming to
the universal DVD Video standard. With it, you will be able to
enjoy full-length movies with true cinema picture quality, and
stereo or multichannel sound (depending on the disc and on your
playback set-up).
The unique features of DVD-Video, such as selection of soundtrack
and subtitle languages, and of different camera angles (again
depending on the disc), are all included.
What’s more, parental lock lets you decide which discs your
children will be able to see. You will find your player remarkably
easy to use with the On-Screen Display and player display in
combination with the remote control.
2.2 Unpacking
First check and identify the contents of your package, as listed
below:
• Portable DVD player
• Remote Control
• Car adaptor (12V)
• AC power adaptor
• Protective pouch
• Car headrest mounting kit
• User manual
2.3 Placement
• Place the player on a firm, flat surface.
• Keep away from domestic heating equipment and direct sunlight.
• If the player cannot read CDs/DVDs correctly, try using a
commonly available cleaning CD/DVD to clean the lens before
taking the player to be repaired. Other cleaning methods may
destroy the lens.
• Always keep the disc door closed to avoid dust on the lens.
• The lens may cloud over when the player is suddenly moved
from cold to warm surroundings. It is then not possible to play a
CD/DVD. Leave the player in a warm environment until the
moisture evaporates.
2.4 Playable disc formats
In addition to DVD-Video disc, you will also be able to play all
Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.
2.4.1 DVD-Video
Depending on the material on the disc (a movie, video
clips, a drama series, etc.) these discs may have one or
more Titles, and each Title may have one or more
Chapters. To make access easy and convenient, your player lets
you move between Titles, and also between Chapters.
2.4.2 Video CD
Depending on the material on the disc (a movie, video
clips, a drama series, etc.) these discs may have one or
more Tracks, and tracks may have one or more indexes,
as indicated on the disc case.To make access easy and
convenient, your player lets you move between tracks and
between indexes.
2.4.3 Audio CD / MP3 CD / WMA CD
Audio CDs / MP3 CD / WMA CD contain music tracks
only. You can play them in the conventional way
through a stereo system using the keys on the
remote control and/or main unit, or via the TV
using the On Screen Display (OSD).
2.4.4 CD with JPEG files
You can also view JPEG still photos on this player.
2.4.5 DivX video discs
DivX is a popular media technology created by DivX, Inc.
DivX media files contain highly compressed video with
high visual quality that maintains a relatively samll file size. DivX
files can also include advanced media features like menus, subtitles,
and alternate audio tracks. Many DivX media files are available for
download online, and you can create your own using your personal
content and easy-to-use tools from DivX.com.
Control elements
and functional
components
2.2 Unpacking
2.3 Placement
2.4 Playable disc formats
2.4.1 DVD-Video
2.4.2 Video CD
2.4.3 Audio CD / MP3 CD /
2.4.4 CD with JPEG files
2.4.5 DivX video discs
4.1 Charge the DVD player
4.2 Powering your remote
5.7 Playback Picture-CD
5.8 Playback from USB
6
6.1 DISPLAY Menu
6.2 Connection
6.2.1 Headphone
6.2.2 TV
6.2.3 AV input
6.2.4 Coaxial
Content
Power Sources
This unit operates on a supplied AC adaptor, car adapter, or a
rechargeable battery pack.
• Make sure that the input voltage of the AC adaptor is in line
with the local voltage. Otherwise, the AC adaptor and unit may
be damaged.
• Do not touch the AC adaptor with wet hands to prevent
electric shock.
• When connecting with car power (cigarette lighter) adaptor, be
sure the input voltage of the adaptor is identical with car voltage.
• Unplug the AC adaptor from the outlet or remove the battery
pack when the unit is not used for long periods of time.
• Hold the plug to disconnect the AC adaptor. Do not pull the
power cord.
2.4.6 Zero Bright Dot
TM
Enjoy highest-quality images that are free from annoying
blank spots on the LCD screen. LCD displays commonly
have imperfections, termed as 'bright dots' by the LCD industry. A
limited number of bright dots were once considered an inevitable
side effect of LCD mass production. With Philips' strict quality
control procedures used in our Portable DVD Players, our LCD
displays are produced with zero tolerance for bright dots. Select
Portable DVD Players come with Philips Zero Bright Dot
TM
Policy
to guarantee optimal screen quality.
Warranty service varies from region to region. Contact your local
Philips representative for more detailed information.
Safety and maintenance
• Do not disassemble the unit for laser rays are dangerous to
eyes.
Any service should be done by qualified service personnel.
• Unplug the AC adaptor to cut the power if liquid or objects get
inside the unit.
• Take care not to drop the unit or subject it to strong shocks,
which may cause malfunction.
Hearing Safety
Listen at a moderate volume.
• Using headphones at a high volume can impair your
hearing. This product can produce sounds in decibel
ranges that may cause hearing loss for a normal person,
even for exposure less than a minute. The higher decibel ranges
are offered for those that may have already experienced some
hearing loss.
• Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So after prolonged listening,
what sounds “normal” can actually be loud and harmful to your
hearing. To guard against this, set your volume to a safe level
before your hearing adapts and leave it there.
To establish a safe volume level:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and
clearly, without distortion.
Listen for reasonable periods of time:
• Prolonged exposure to sound, even at normally “safe” levels,
can also cause hearing loss.
• Be sure to use your equipment reasonably and take appropriate
breaks.
Be sure to observe the following guidelines when using
your headphones.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume as your hearing adapts.
• Do not turn up the volume so high that you can’t hear what’s
around you.
• You should use caution or temporarily discontinue use in
potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle,
cycling, skateboarding, etc.; it may create a traffic hazard and is
illegal in many areas.
• Important (for models with by-packed headphones): Philips
guarantees compliance with the maximum sound power of its
audio players as determined by relevant regulatory bodies only
with the original model of provided headphones. In case this one
needs replacement, we recommend that you contact your
retailer to order a model identical to that of the original
provided by Philips.
• Traffic safety: do not use while driving or cycling as you may
cause an accident.
• Do not expose to excessive heat caused by heating equipment
or direct sunlight.
• This product is not waterproof: do not allow your player to be
submersed in water. Water entering the player may cause major
damage.
• Do not use any cleaning agents containing alcohol, ammonia,
benzene, or abrasives as these may harm the player.
• Apparatus shall not be exposed to dripping or splashing. Do not
place any sources of danger on the appartus (e.g. liquid filled
objects,lighted candles)
• Do not touch the lens!
Handling discs
• Do not attach paper or tape to the disc.
• Keep the disc away from direct sunlight or
heat sources.
• Store the disc in a disc case after playback.
• To clean, wipe the disc outwards from the
center with a soft, lint-free clean cloth.
On handling the LCD screen
The LCD is manufactured using high precision technology. You may,
however, see tiny black points and/or bright points (red, blue,
green) that continuously appear on the LCD. This is a normal result
of the manufacturing process and does not indicate a malfunction.
Environmental information
We have reduced the packaging to its minimum and made it easy
to separate into mono materials: cardboard, PS, PE and PET.
Your set consists of material which can be recycled if disassembled
by a specialized company. Please observe the local regulations to
dispose of packaging, exhausted batteries and old equipment.
Copyright information
“DivX, DivX” Certified, and associated logos are trademarks of
DivX, Inc. and are used under license.”
All other brand and product names are trademarks of their
respective companies or organizations.
Unauthorized duplication of any recordings downloaded from the
internet or made from CDs / VCDs / DVDs is a violation of
copyright laws and international treaties.
The Windows Media and the Windows logo are registered
trademarks of Microsoft Corporation in the United States and/or
other countries.
When the player is in use for a long period of time, the
surface will be heated. This is normal.
Please always use supplied AC/DC adaptor (AY4117)
4
Use navigation keys
1, 2, 3, 4 to select an item from the DVD
disc menu, such as play now, select languages and subtitle.
5
The following functions are available during playback:
Pause
Press
2; to pause playback. You can resume
playback by pressing
2; again
Previous/Next
Briefly press
J( or )K once or several times to
select your desired chapters
Fast backward / Fast forward
Keep pressing
J( or )K will search in fast
speed, 2X, 4X, 8X… Then, press
2; to resume
normal playback
Volume Control
Press
3 or 4 briefly or repeatedly to increase
or decrease the sound volume
Stop
Briefly press
9 on the right side of the player to
stop playback
Subtitle
Change subtitle display. The function is available
by pressing either the SUBTITLE or
OPTIONS
key
Language
Change language. The function is available by
pressing either the AUDIO or OPTIONS key
Angle
Change the viewing angle provided in the DVD
disc. The function is available by pressing the
OPTIONS
key.
Zoom
Zoom in the screen, and then use the
navigation keys to pan the screen. The function
is available by pressing either the ZOOM or
OPTIONS
key
A-B Repeat
Set repeat loop playback. Press A-B to set the
starting point and press A-B again to set the
ending point. Then, the player will repeat the
loop playback. Press A-B to cancel the loop
playback
5.3 Playback VCD
1
Briefly press the POWER ON button on top of the player to
switch on the set.
2
Insert the VCD into the disc slot on the right side of the player.
3
The set will start to play the disc automatically.
4
The following functions are available during playback:
Pause
Press
2; to pause playback. You can resume
playback by pressing
2; again
Previous/Next
Briefly press
J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing
J( or )K will search in fast
speed, 2X, 4X, 6X or 8X. Then, press
2; to
resume normal playback
Volume Control
Press
3 or 4 briefly or repeatedly to increase
or decrease the sound volume
Stop
Briefly press
9 on the right side of the player to
stop playback
Audio
Some VCDs only contain 2 languages for
selection. You can change the language using this
function. The function is available by pressing
either the AUDIO or OPTIONS key
Zoom
Zoom in the screen, and then use the
navigation keys to pan the screen. The function
is available by pressing either the ZOOM or
OPTIONS
key
A-B Repeat
Set repeat loop playback. Press A-B to set the
starting point and press A-B again to set the
ending point. Then, the player will repeat the
loop playback. Press A-B to cancel the loop
playback
5.4 Playback Super (S)-VCD
(Super) Video CDs may feature PBC (Play Back Control). This
allows you to play the video CDs interactively, following the menu
on the display.
1
Briefly press the POWER ON button on top of the player to
switch on the set
2
Insert the (S)VCD into the disc slot on the right side of the player.
If PBC is on, the disc index menu will appear on the screen.
3
Use numeric keypad 0-9 to input your selection or select a play
option.
4
Press RETURN on the remote control to return to the
previous menu.
5
To turn Playback Control mode on/off, please go to SETUP
and select PBC settings.
5.5 Playback Music CD
1
Briefly press the POWER ON button on top of the player to
switch on the set.
2
Insert the DVD into the disc slot on the right side of the player.
3
The set will start to play the disc automatically.
4
The following functions are available during playback:
Pause
Press
2; to pause playback. You can resume
playback by pressing
2; again
Previous/Next
Briefly press
J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing
J( or )K will enter the fast
search mode. Then, press brief will change the
searching speed to 2X, 4X, 6X, 8X, 16x or 32x.
Volume Control
Press
3 or 4 briefly or repeatedly to increase
or decrease the sound volume
Repeat
Press OPTIONS key to select Repeat 1 track
or Repeat all tracks
Shuffle
Press OPTIONS key to turn shuffle playback
on or off
Stop
Briefly press
9 on the right side of the player to
stop playback
5.6 Playback Music MP3/WMA-CD
1
Briefly press the POWER ON button on top of the player to
switch on the set.
2
Insert the DVD into the disc slot on the right side of the player.
3
The set will start to play the disc automatically.
WARNING
Under no circumstances should you try to
repair the set yourself as this will invalidate the guarantee.
If a fault occurs, first check the points listed, before taking the
set for repair. If you are unable to solve a problem by
following these hints, consult your dealer or service centre.
• Batteries contain chemical substances, so they should be
disposed of properly.
• Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Incorrect use of batteries can cause electrolyte leakage and
will corrode the compartment or cause the batteries to
burst.
• Remove the batteries if the set is not to be used for a long
time.
• Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Transfering and recording of data from the DVD to the USB
port is not possible.
5.1 Setup
1
Press SETUP. A list of features is shown.
2
Use
3 / 4 to highlight your selection.
3
Use
J( or )K to enter a sub-menu
4
Use the navigation keys to highlight your desired setting and
press OK to confirm.
5
The SETUP menu includes:
General
Language
Set On Screen Display (OSD) languages
PBC settings
Set Playback Control function ON/OFF. This
feature is available for Super VCD.
Power save
Set Power Saving mode ON/OFF
DivX (VOD)
Get the DivX (Video-On-Demand) code
Parental
Set parental options
Set password
Change password (default: 1369)
Factory settings Restore factory settings
Video
TV Display
Set screen display aspect ratio
TV standard
Set video output format to TV system
Audio
Dolby
Set Dolby output
Digital (SPDIF) Set digital output format
4
Use navigation keys to select the folder and MP3/WMA file to
be played.
5
The following functions are available during playback:
Pause
Press
2; to pause playback. You can resume
playback by pressing
2; again
Previous/Next
Briefly press
J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing
J( or )K will search in fast
speed. Then, press
2; to resume normal
playback
Volume Control
Press
3 or 4 briefly or repeatedly to increase
or decrease the sound volume
Repeat
Press OPTIONS key to select Repeat 1 track
or Repeat all tracks
Shuffle
Press OPTIONS key to turn shuffle playback
on or off
Stop
Briefly press
9 on the right side of the player to
stop playback
5.7 Playback Picture-CD
The player can only read pictures in JPEG format.
1
Briefly press the POWER ON button on top of the player to
switch on the set.
2
Insert the DVD into the disc slot on the right side of the player.
3
The set will start to play the disc automatically.
4
Use navigation keys to select the folder and JPEG file to be
played.
5
The following functions are available during playback:
Pause
Press
2; to pause playback. You can resume
playback by pressing
2; again
Previous/Next
Briefly press
J( or )K once or several times to
select your desired track
Rotate
Press OPTIONS key to select rotate mode.
Then, use
1 to rotate the picture clockwise.
Use
2 to rotate the picture anti-clockwise.
Press OPTIONS key to exit rotate mode.
Zoom
Zoom in the screen, and then use the
navigation keys to pan the screen. The function
is available by pressing either the ZOOM or
OPTIONS
key
Stop
Briefly press
9 on the right side of the player to
stop playback
6
At the end of the playback, press
9 / to eject the disc from the
player.
5.8 Playback from USB
This USB port supports the playback of JPEG / MP3 / WMA /
DivX / MPG-4 files.
8 Technical data
Dimensions
25.5 x 17.0 x 3.1 cm
7.5 x 5.75 x 1.5 inches
Weight
0.97 kg / 2.13 lb
AC power adaptor
DC 9V 1.8A
Power Consumption
≤ 20W
Operating temperature range
0 - 50°C (32 - 122°F)
Laser wavelength
650nm
Video system
NTSC / PAL / AUTO
PHILIPS reserves the right to make design and specification
changes for product improvement without prior notice.
Modifications not authorized by the manufacturer may
void users authority to operate this device.
All rights reserved.
1
Briefly press the POWER ON button on top of the player to
switch on the set.
2
Insert a USB flash drive or USB memory card reader into the
USB port.
3
The player will automatically browse and show the contents in
the USB flash device.
4
Use navigation keys to select the file you want to access, then
press OK to play it.
5
At the end of the playback, unplug the USB flash drive or USB
memory card from the player
6 Addition Functions
6.1 DISPLAY Menu
When you press DISPLAY during playback, the following menu
will appear and you can access the corresponding function and
information:
Turn off LCD
You can turn off the screen in some situations,
such as when connected to TV or playing music
discs. This can save the battery power
Brightness
It allows you to adjust the brightness of the
screen
Contrast
It allows you to adjust the contrast of the
screen
Color
It allows you to adjust the color of the screen
from cool, warm and normal.
Battery level
It shows the battery level
6.2 Connection
6.2.1 Headphone
Connect the headphone to either one of the headphone jacks on
the side of the player.
6.2.2 TV
You can connect the player to a TV and enjoy your DVD.
6.2.3 AV input
You can connect to other devices such as Digital Video Recorder,
Digital Camera, etc.
6.2.4 Coaxial
It provides digital audio output signal that you can connect to your
home theater equipment to decode the digital audio signal.
Yellow
White
Red
Yellow
White
Red
Yellow
7 Troubleshooting
If it appears that the DVD-Video player is faulty, first consult this
checklist. It may be that something has been overlooked.
Symptom
Remedy
No power
• Check if both plugs of the mains cord
are properly connected.
• Check if there is power at the AC
outlet by plugging in another appliance.
• Check if battery pack is inserted
appropriately.
• Check if car adaptor is connected
appropriately.
Distorted picture
• Check the disc for fingerprints and clean
with a soft cloth, wiping from centre to
edge.
• Sometimes a small amount of picture
distortion may appear. This is not a
malfunction.
Completely distorted
picture / no colour in
the TV screen
The NTSC/PAL setting may be in the
wrong status. Match your TV’s setting with
the player’s setting.
No sound
Check audio connections. If using a HiFi
amplifier, try another sound source.
Disc can’t be played
• Ensure the disc label is upwards.
• Clean the disc.
• Check if the disc is defective by trying
another disc.
Do not load any 8-cm
mini DVD discs into
the player.
The DVD player does not play mini DVD
discs. If the disc gets stuck inside the
player, press 9 / twice to eject the disc.
Try the following steps if the disc remains
stuck inside the player.
1
Power off and then power on the
player. Press 9 / to eject the disc.
2
If this does not work, hold the player
with the slot facing down, gently shake
the player until the disc comes out.
The player does not
respond to the remote
control
Aim the remote control directly at the
sensor on the front of the player. Avoid all
obstacles that may interfere with the signal
path. Inspect or replace the batteries.
Distorted or B/W
picture with DVD
Use only discs formatted according to the
TV-set used (PAL/NTSC).
No audio at digital
output
• Check the digital connections.
Player does not
respond to all
operating commands
during playback
• Operations are not permitted by the
disc.
• Refer to the instructions in the disc
inlay.
Player feels warm
When the player is in use for a long period
of time, the surface will be heated.
This is normal.
Display goes dimmer
when AC is unplugged
The unit is saving power to ensure longer
playtime with battery. It is normal.
Adjust the brightness in the SETUP menu.
This set complies with the radio interference requirements of the
European Union.
IMPORTANT
Do not load 8-cm mini DVD disc into the
player. The DVD player does not play mini DVD disc.
Video setup is available to be changed only when playback is
stopped.
Copyright information
The making of unauthorized copies of copy-protected material,
including computer programmes, files, broadcasts and sound
recordings, may be an infringement of copyrights and constitute a
criminal offence. This equipment should not be used for such
purposes.
Disposal of your old product
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
When this crossed-out wheeled bin symbol is attached
to a product, it means the product is covered by the
European Directive 2002/96/EC.
Please be informed about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your
old product with your normal household waste. The correct
disposal of your old product will help prevent potential negative
consequences to the environment and human health.
5.2 Playback DVD
1
Briefly press the POWER ON button on top of the player to
switch on the set.
2
Insert the DVD into the disc slot on the right side of the player.
3
The player will start to play the disc automatically.
PET830_ifu_93.qxd 2007-06-07 10:44 Page 1
