Pharos Drive GPS 135 8 Chapter 2 Getting Started
Pharos

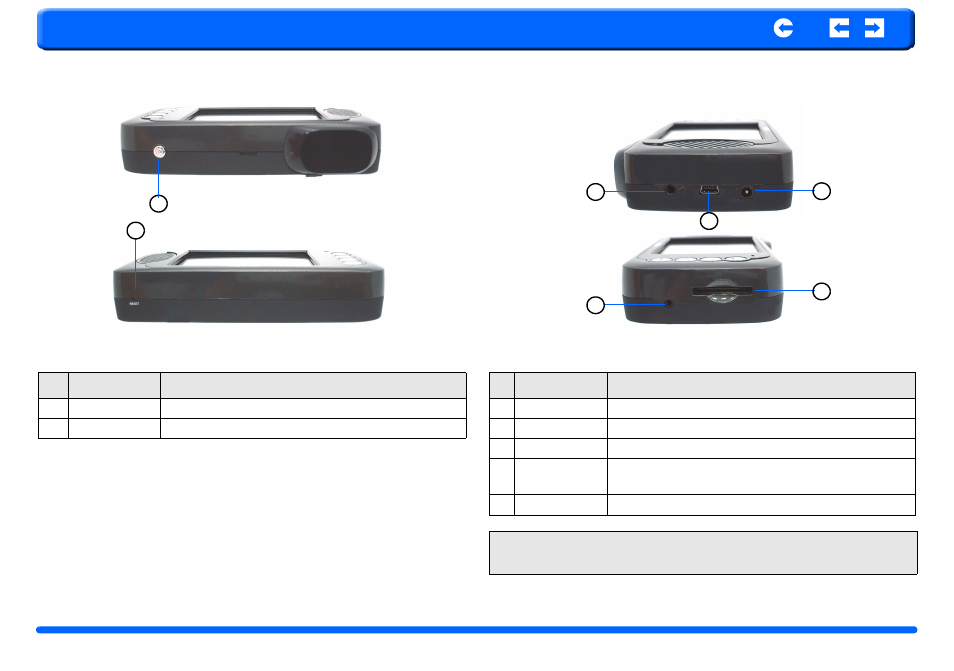

Figure 2: Top and Bottom view Figure 3: Left and Right side view
Table 3: Top and Bottom controls
No. Function
1 On/Off The main power/battery on/off switch.
2 Reset Restarts your device with a soft reset.
1
2
Table 4: Left and Right panel controls
No. Function
1 Earphone Standard 3.5” earphone jack.
2 USB input Connects to the USB cable.
3 DC Power input For Adapter or car charger
4
FM/TMC
antenna
For FM/TMC reception (applicable depending on SKU)
5 SD slot Accepts a SD (Secure Digital) card for data storage.
WARNING: Make sure the SD card is properly inserted and DO NOT
remove the SD card during operation of the device.
