Using the computer, Connecting the display using the computer – Planar PQ150 User Manual
Page 5
A4

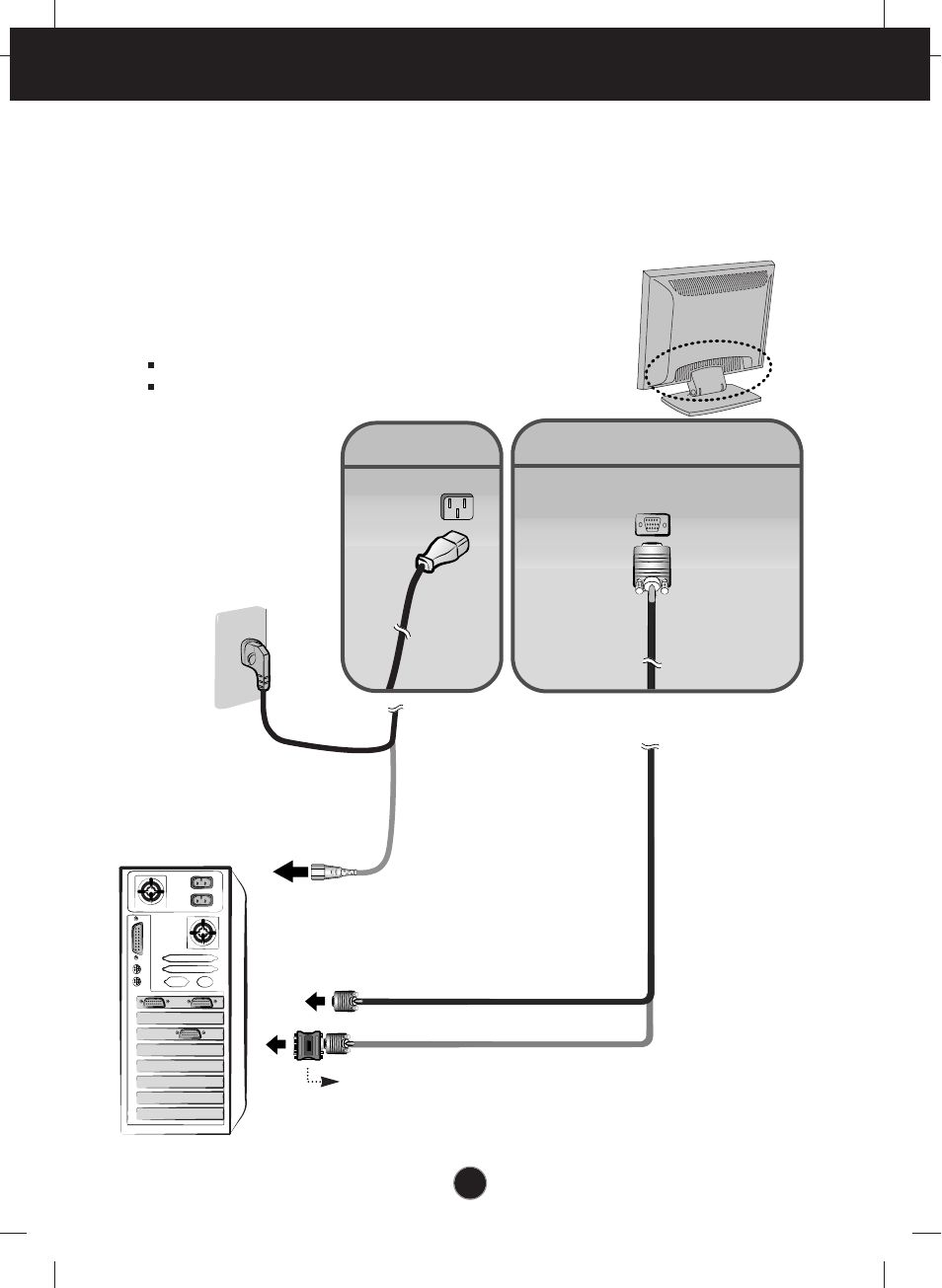

Connecting the Display
Using the Computer
1.
Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2.
Connect the power cord into a proper power outlet that is easily accessible and
close to the display.
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector
on the supplied cable to a 15 pin 2 row connector.
Wall-outlet type
*
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display
may differ from the view as shown.
PC-outlet type
*
PC
MAC
Power Cord
Signal Cable
Analog signal
D-sub
*
* Varies according to model.
