21

SERVICE AND ADJUSTMENTS

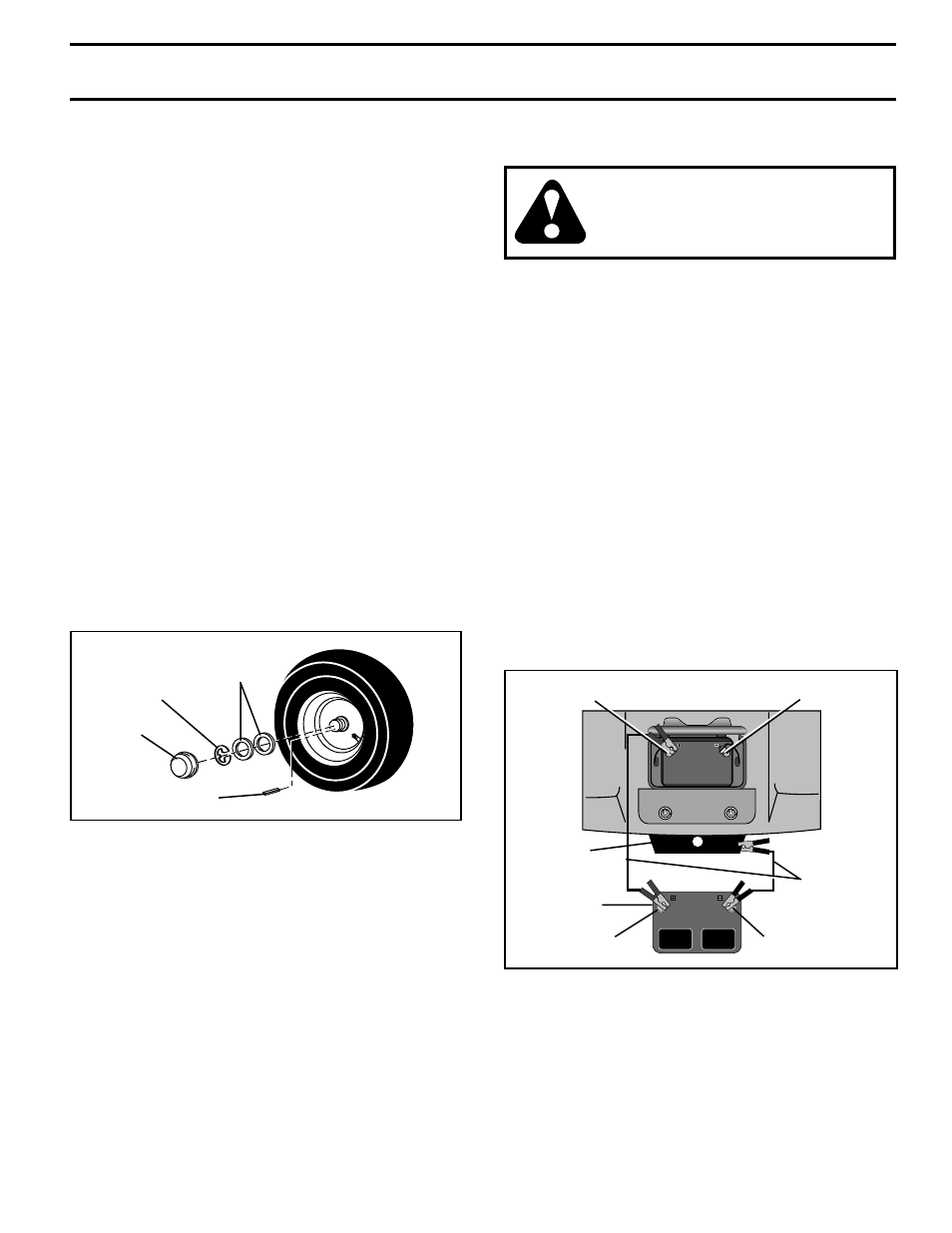

FIG. 24

RETAINING
RING

WASHERS

SQUARE KEY
(REAR WHEEL ONLY)

AXLE
COVER

TO REMOVE WHEEL FOR REPAIRS (See Fig.
24)

Block up axle securely.

Remove axle cover, retaining ring and washers to allow
wheel removal (rear wheel contains a square key - Do not
lose).

Repair tire and reassemble.

On rear wheels only: align grooves in rear wheel hub and
axle. Insert square key.

Replace washers and snap retaining ring securely in
axle groove.

Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and
corrosion.

TO START ENGINE WITH A WEAK BATTERY
(See Fig. 25)

CAUTION: Lead-acid batteries generate
explosive gases. Keep sparks, flame
and smoking materials away from bat-
teries. Always wear eye protection when
around batteries.

If your battery is too weak to start the engine, it should be
recharged. (See "BATTERY" in the CUSTOMER RESPON-
SIBILITIES section of this manual).
If “jumper cables” are used for emergency starting, follow
this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12
VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER
V E H I C L E M U S T A L S O B E A 1 2 V O L T N E G A T I V E
GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR
BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect each end of the RED cable to the POSITIVE (+)
terminal of each battery, taking care not to short against
chassis.

Connect one end of the BLACK cable to the NEGATIVE
(-) terminal of fully charged battery.

Connect the other end of the BLACK cable to good
CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully
charged battery.

RED cable last from both batteries.

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)
when wheels are positioned straight forward, remove steer-
ing wheel and reassemble per instructions in the Assembly
section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on your
tractor. If damage has occurred to affect the front wheel toe-
in or camber, contact your nearest authorized service
center/department.

POSITIVE TERMINAL

CHASSIS

POSITIVE TERMINAL

FIG. 25

CHARGED
BATTERY

CABLES

NEGATIVE TERMINAL

NEGATIVE TERMINAL
