Assembly steps – Precor Ellipticals EFX532i User Manual
Page 86
532i Elliptical Fitness CrossTrainer Assembly Guide
4
Assembly Steps

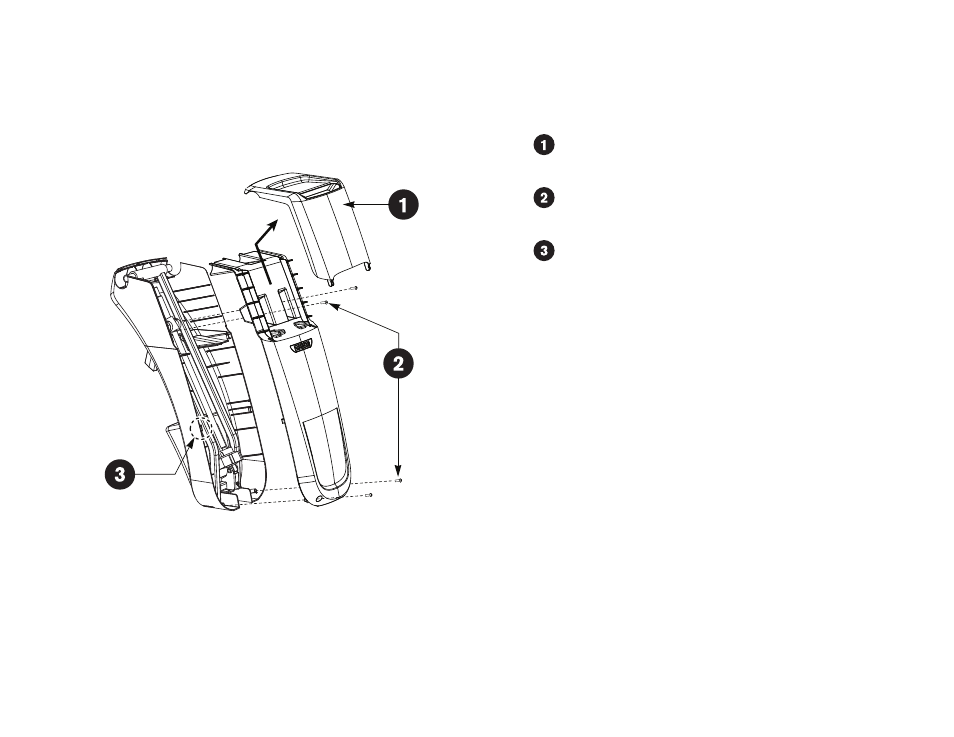

Remove the packaging around the lift covers. Grasp the
magazine rack at its base and slide it up and off the front lift
cover. Set it aside.
Use a long-handle
⁵⁄₃₂-inch hex key to loosen the four
fasteners that secure the front lift cover. Set the fasteners
aside.
A tab on each side of the front lift cover holds the front and
back covers together. Gently squeeze the sides of the back
covers to release the tabs. Remove the front lift cover.
Note: Avoid the grease on the lift screw as it will stain
clothing.
