Functional Overview

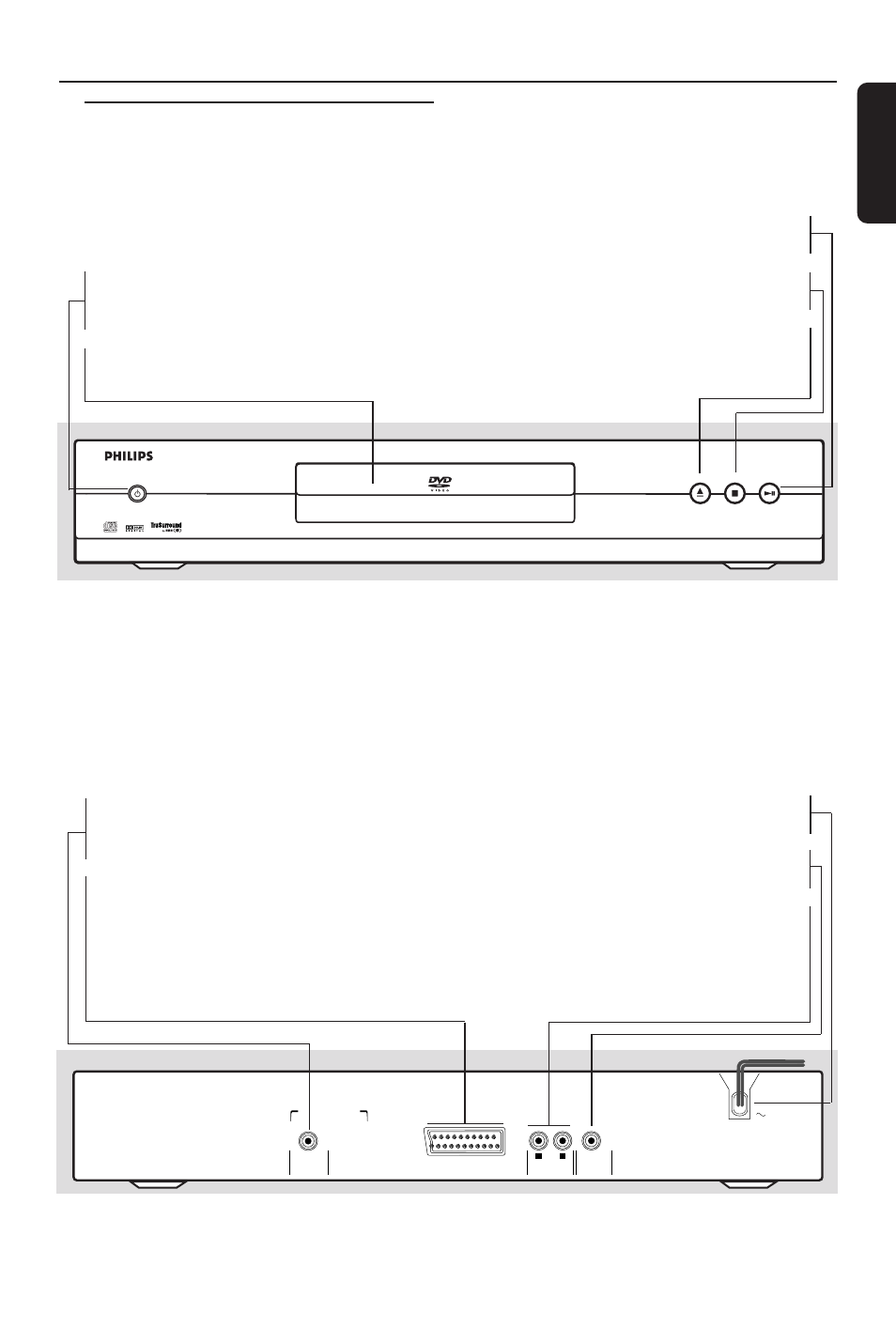

Front and Rear Panels
STOP PLAY/PAUSE OPEN/CLOSE STANDBY-ON
DVD623 DVD VIDEO PLAYER
STANDBY-ON
– to switch the player to standby mode or
ON
Disc Tray
B ; PLAY/PAUSE
– to star t/interrupt playback
9
STOP
– to stop playback
/ OPEN/CLOSE
– to open/close the disc tray
COAXIAL
DIGITAL AUDIO OUT
PCM-MPEG2-Dolby Digital
TV OUT
L R (CVBS)
VIDEO OUT AUDIO OUT
COAXIAL (Digital audio out)
– connect to AUDIO inputs of a digital
(coaxial) audio equipment
TV OUT VIDEO OUT
– connect to a TV with SCART
MAINS (AC Power Cord)
– connect to a standard AC outlet
CVBS VIDEO OUT
– connect to CVBS Video inputs of a TV
AUDIO OUT (Left/Right)
– connect to AUDIO inputs of an
amplifier, receiver or stereo system
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
