ParaBody 890 - Manual (Page 5)

5

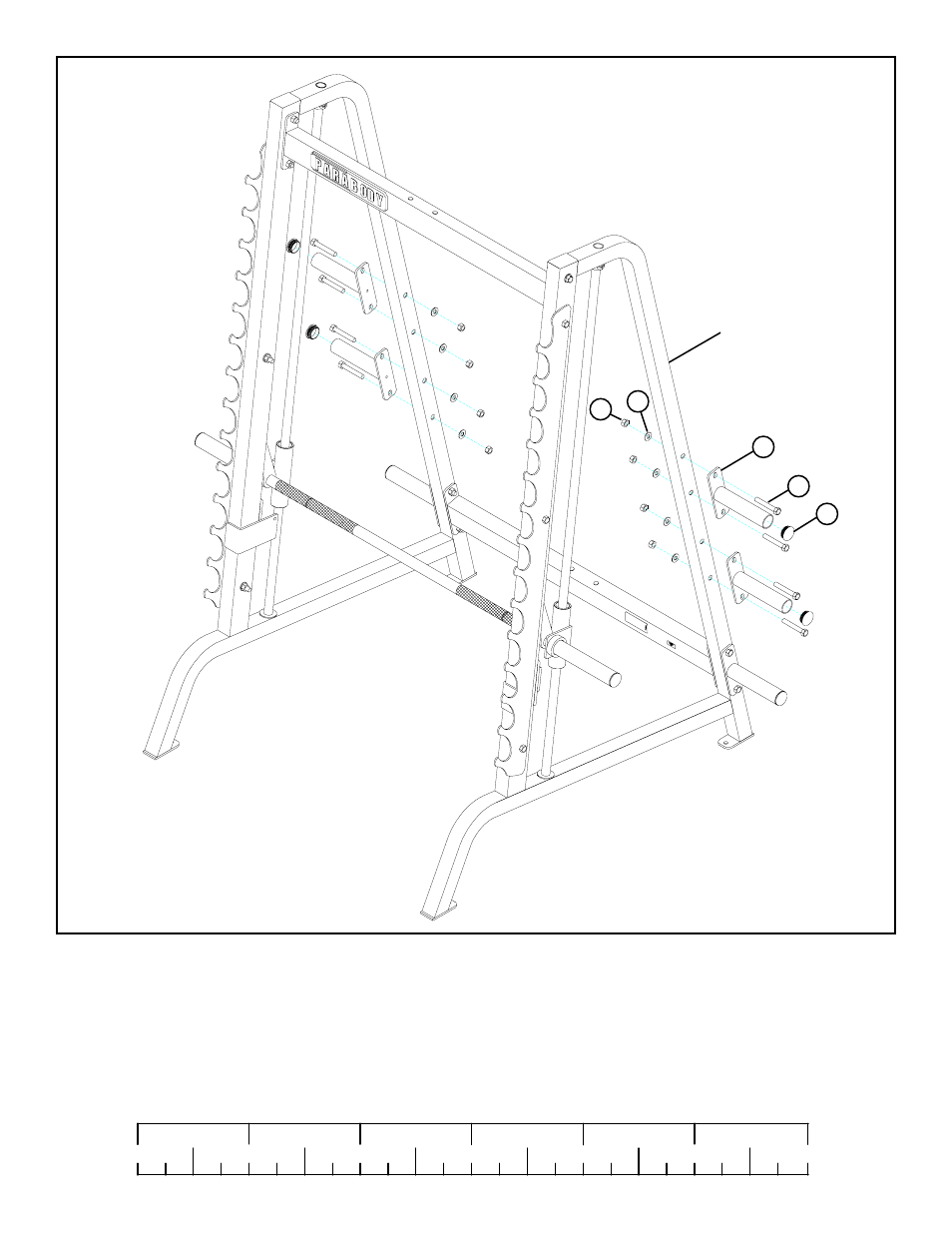

FIGURE 2
STEP 2:
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
• Insert four 1-3/4” ROUND END CAPS (5) into the end of the four PLATE HOLDERS (1) as shown in FIGURE 2.
• SECURELY assemble the four PLATE HOLDERS (1) to the UPRIGHT FRAMES as shown in FIGURE 2, using eight 1/2 X 3” BOLTS
(2), eight 1/2” WASHERS (3), and eight 1/2” LOCK NUTS (4).
2 1/2 X 3”
5
3
4
1
UPRIGHT FRAME
