Controls and displays 03
14
En
Chapter 3
Controls and displays

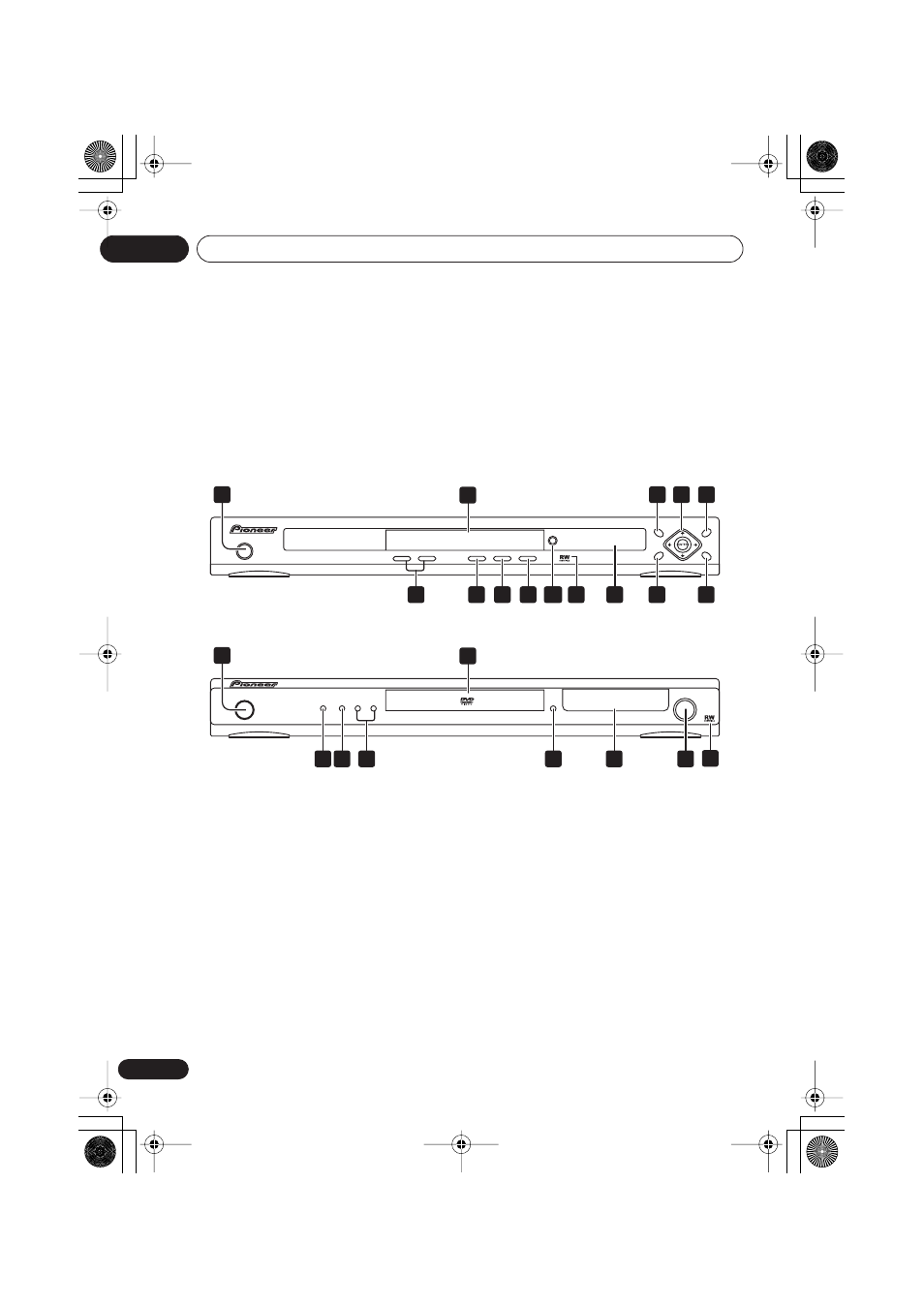

Front panel
1 STANDBY/ON (page 16)
2 Disc tray
3 TOP MENU (page 20)
4 ENTER & cursor buttons (page 16)
5 MENU (page 20)
6 RETURN (page 20)
7 HOME MENU (page 16)
8 Display
9 RW Compatible (page 7)
10 OPEN/CLOSE (page 18)
11 (page 19)
12 (page 19)
13 (page 19)
14 and (page 19)
STANDBY/ON
OPEN/CLOSE TOP MENU MENU
RETURN HOME MENU
STANDBY/ON
DV-380-s
2 3 4 5
6 7 9
9
11 10 8 12 13 14
10 8 11 12 13 14
1
2 1
DV-383-s/ DV-383- K
