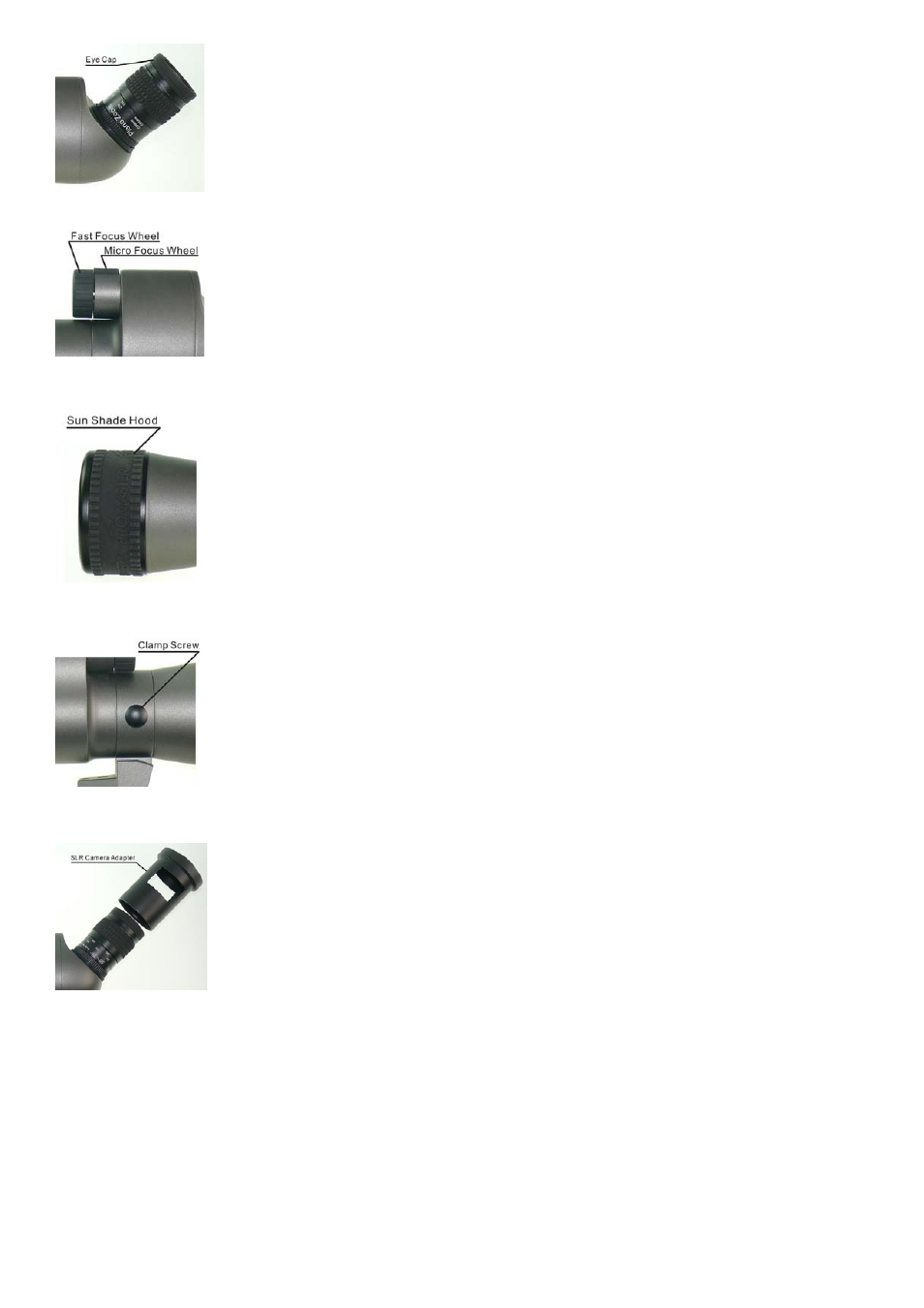

Adjustable Eye Cup
The eyepiece, which is included with your scope, has an adjustable eye cup. You may adjust the eye cup
up or down by turning it left or right to obtain the best possible overall viewing as you zoom your scope.
Focusing your scope
Your scope is equipped with a precision focusing mechanism. Rotate the fast focus wheel to obtain
general focus of the object you wish to view. Use the micro focus wheel to achieve the sharpest image
possible.
Built-in retractable lens hood
In strong sunlight, pull out the retractable lens hood to reduce glare on the front objective lens of your
scope.
Viewing angle adjustment
The viewing angle of your scope is adjustable for the most comfortable viewing angle. To adjust the
viewing angle, loosen the clamp screw and rotate your scope left or right. Once you have the scope
positioned properly, tighten the clamp screw. Make sure your scope is firmly locked in place to avoid
movement while viewing.
SLR camera adapter
Your PROMASTER Infinity Elite ELX spotting scope is uniquely suited to telephotography. Your scope
includes an SLR camera adapter. To mount your camera, place the SLR camera adapter over the scope
eyepiece and screw to the adapter mounting collar on the scope body. Screw a T-mount adapter (not
included) designed for your camera to the top of the SLR camera adapter. Mount your camera to the
T-mount. The top mounting ring of the SLR camera adapter is adjustable. To properly orient your camera
on the scope, loosen the mounting ring at the top of the SLR camera adapter, adjust the camera position,
then tighten the mounting ring to fix your camera in place.
Proper handling and storage of your scope
1. Do not use the spotting scope without an eyepiece properly installed.
2. Avoid excessive force when using the fast focus and micro focus knobs, tightening the clamp screw, mounting the
SLR camera adapter, mounting the eyepiece or when attaching the scope to the tripod. Using excessive force can
cause will damage to the scope and will void your warranty.
