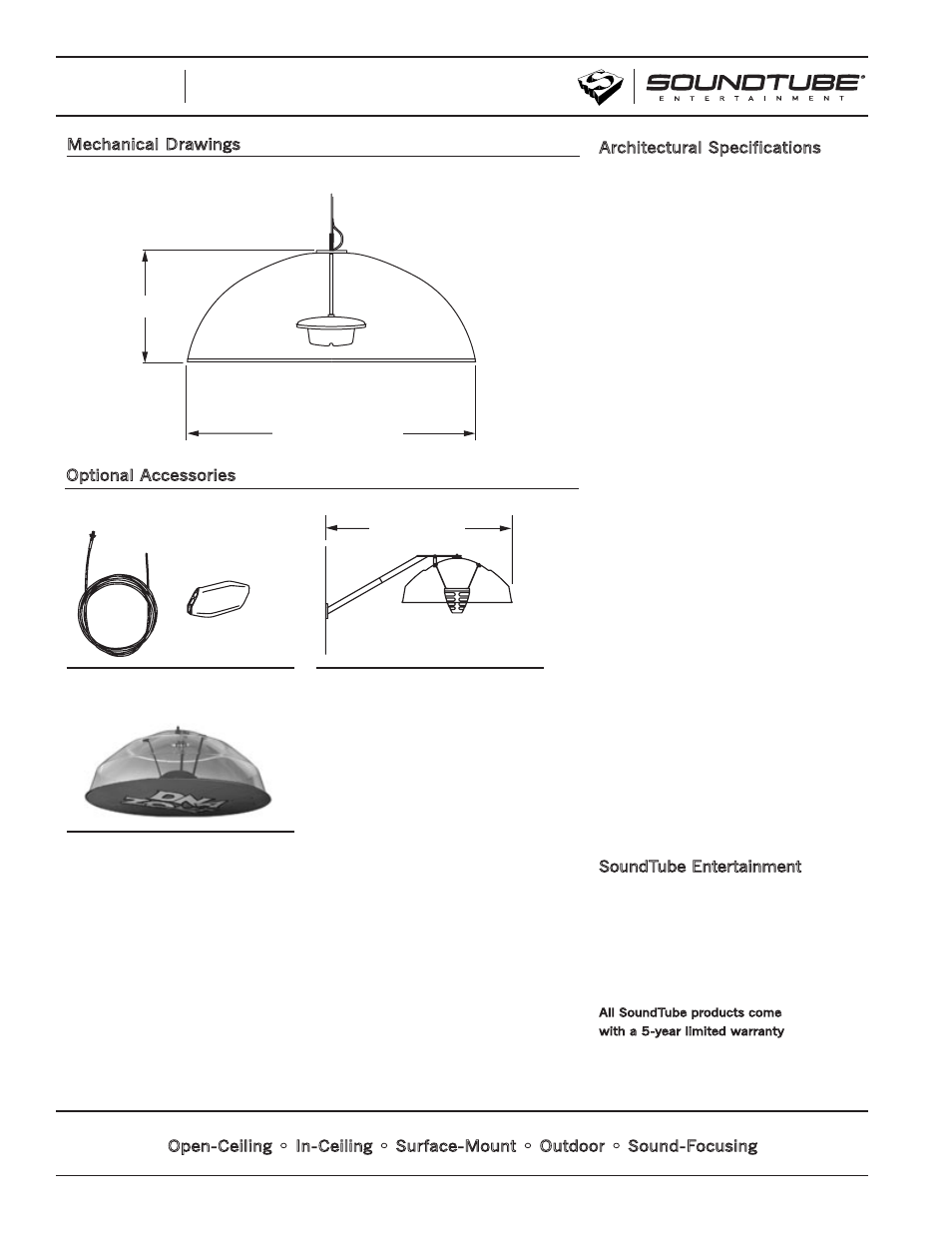

Mechanical Drawings
Optional Accessories
Architectural Specifications
The loudspeaker shall consist of two 50
mm (2.0 in) transducers with a voice coil
diamter of 25 mm (1.0 in). Sound waves
from the transducers shall be reflected
from a 514 mm (20.25 in) Dual-Parabolic
™
sound dome.
Performance specifications of a typical
production unit shall be as follows: Usable
frequency response shall extend from
210 Hz - 18.7 kHz. The loudspeaker shall be
available in 8 Ohm impedance mode. Rated
power capacity of the components and net-
work shall be at least 25 Watts RMS.
The dome shall be constructed of cus-
tom-molded PETG with an ABS driver
enclosure. The transducers shall have a
fiber cone with butyl rubber surround. The
grille shall be constructed of heat-resistant
ABS plastic material. The overall dome and
cabinet dimensions shall be no more than
514 mm (20.25 in) in diameter by 223 mm
(8.75 in) in height and weigh no more than
1.70 kG (3.75 lbs).
Installation for the FPS30 shall be
by single point hanging aircraft cable
(AC-HC20) with a 1/4 -20 stud into a
threaded insert on dome apex. Additional
accessories include Wall Mount Bracket
(AC-WB3) and Threaded Hanging Rod
(AC-TR36). Wall bracket is constructed of
cold rolled steel. The hardwired input
connectors shall be tinned, 24-gauge,
4-conductor, color-coded wires. Optional
decorative SoundSleeve
™ available for in-
store marketing.
SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone
435.647.9555
Fax 435.647.9666
Toll Free 800.647.TUBE
www.soundtube.com
All SoundTube products come
with a 5-year limited warranty .
FPS20 FPS20 Sound-Focusing Stereo Speaker
Technical Information for System Engineers
(not shown)
AC-TR36 – Threaded Hanging Rod AC-FE1 – Forged Eyebolt
514 mm (20.25 in)
223 mm (8.75 in)
HC20 20’ Hanging Cable
with SpeedClamp™
WB3 Wall Mount Bracket
CPSU Custom Printed SoundSleeve™
89.2 cm (35.1 in)
