Identification of controls, Continued), Main unit – Palsonic TFTV815S User Manual
Page 9

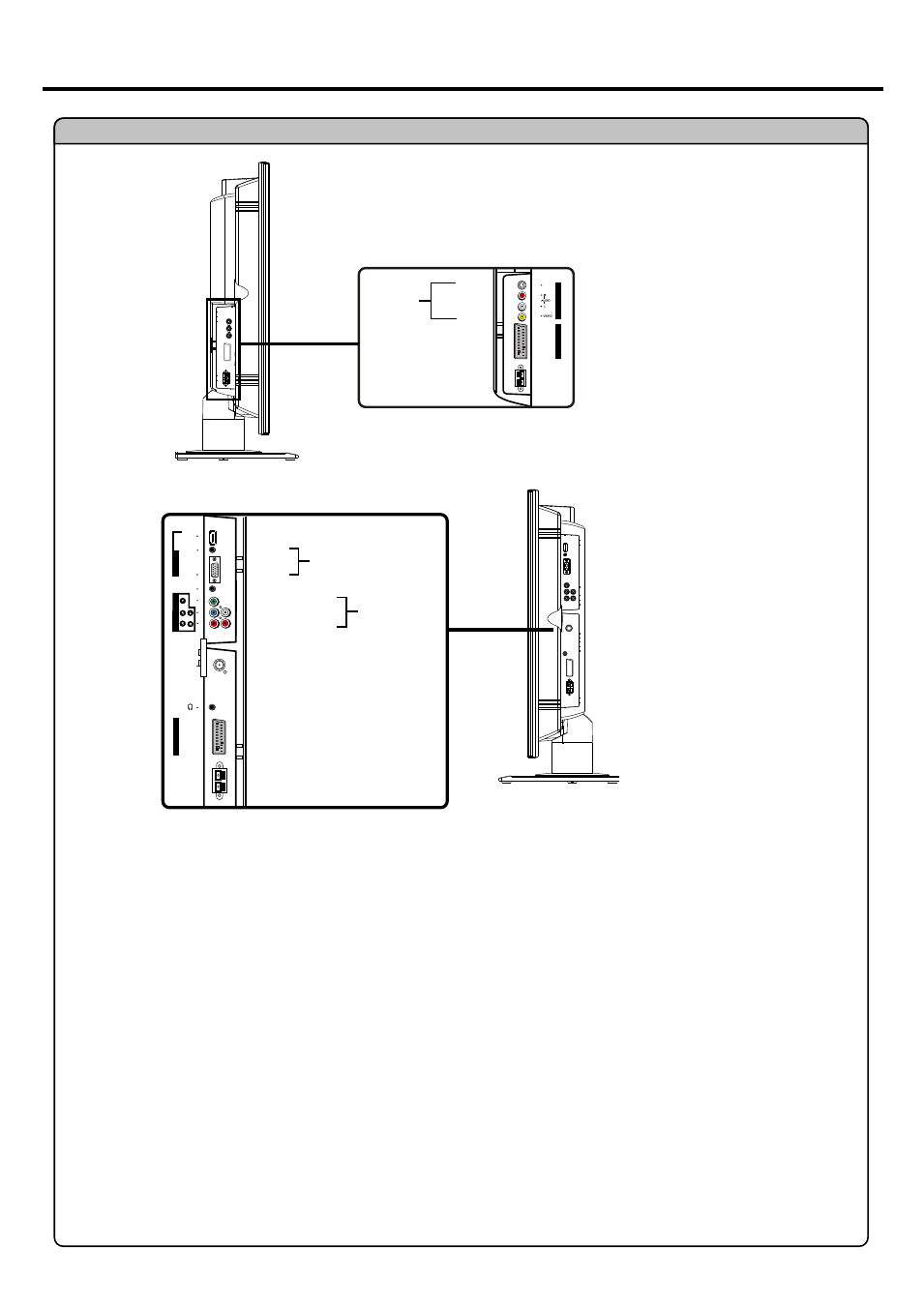

Identification of Controls
(continued)
6
HEADPHONE JACK
SCART2 INTERFACE
SPEAKER OUTPUT
JACKS
UPDATE interface
COMPONENT IN
1. AV inputs (Video, Audio L/MONO, R) / S-Video input
Receive video/audio signals from external sources such as VCR or DVD player.
Receive a S-Video signal from external source such as VCR or DVD player.
2. 21-pin Euro-SCART1 (VIDEO/S-VIDEO) interface
3. HDMI/DVI interface
4. D-Sub input/Audio in
Connect to the D-Sub/audio output sockets on your PC.
5. UPDATE interface
For service use only. The user cannot operate the unit through the UPDATE interface.
6. Component inputs (Y, Pb, Pr, Audio L, R)
Connect to the component and audio output sockets of a DVD player or Set-Top Box.
7. Aerial input
Allows you to connect cable or outdoor aerial
8. Headphone jack
9. 21-pin Euro-SCART1 (VIDEO/RGB) interface
10. Speaker output jacks
Connect the speaker audio cable to the speaker output jacks on the unit matching the "+" and
"-" ends of the cable with colour.
Main Unit
AV INPUT/
S-VIDEO IN
S-VIDEO
AUDIO R
AUDIO L/MONO
VIDEO
S-VIDEO
AERIAL INPUT
SPEAKER OUTPUT JACKS
SCART1 INTERFACE
Pr AUDIO R
D-Sub IN
HDMI/DVI IN
Pb AUDIO L
D-Sub
AUDIO
C
O
M
P
O
N
E
N
T
I
N
D
-S
U
B
I
N
AUDIO
HDMI
DVI
D-Sub
UPDATE
RF
S
C
A
R
T
1
(
V
ID
E
O
/R
G
B
)
