75 ⍀
75
⍀
OR
OUT TO TV IN FROM ANT.
1
2

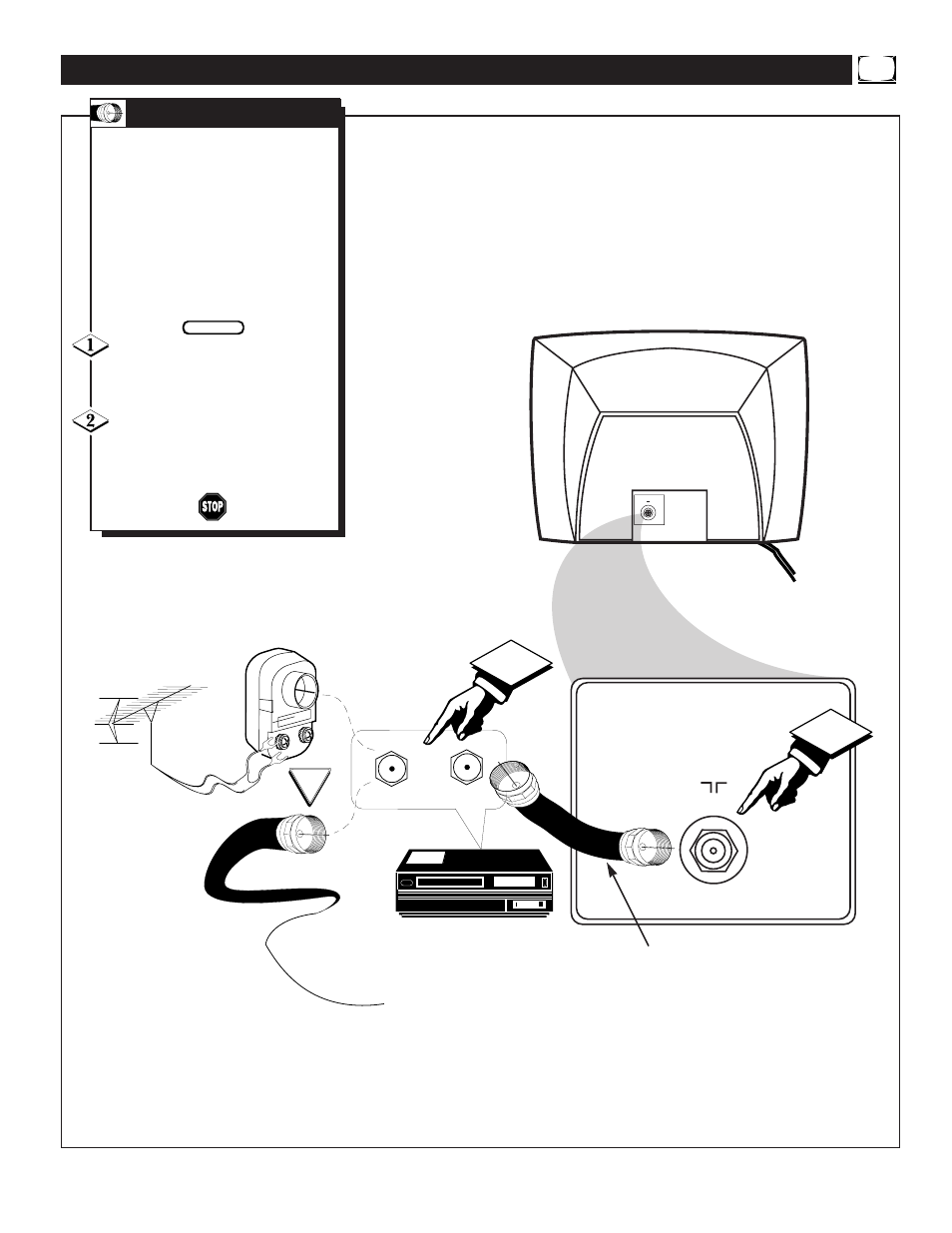

T he basic Antenna, or Cable
TV, to VCR to TV connection
is shown to the right. For more
information on other hookups
(possible when Cable
Converter/Descrambler boxes are
included) refer to your accessory
VCR and Cable Converter
Owner's Manual for details.
Connect your Antenna or Cable
TV signal to the IN FROM
ANT(enna) plug on the VCR.
Connect the OUT TO TV plug
on the VCR to the 75
Ω
plug on the
TV (connecting cable supplied with
the VCR.)
H
OOKING
U
P
Y
OUR
TV (B
ASIC
TV
TO
VCR C
ONNECTIONS
)
BEGIN
TV
TO
VCR
Round Cable
75
Ω
Supplied with VCR
Outdoor
VHF/UHF
Antenna
300 to 75
Ω
Ohm Adapter
Cable TV signal
Back of TV
VCR
