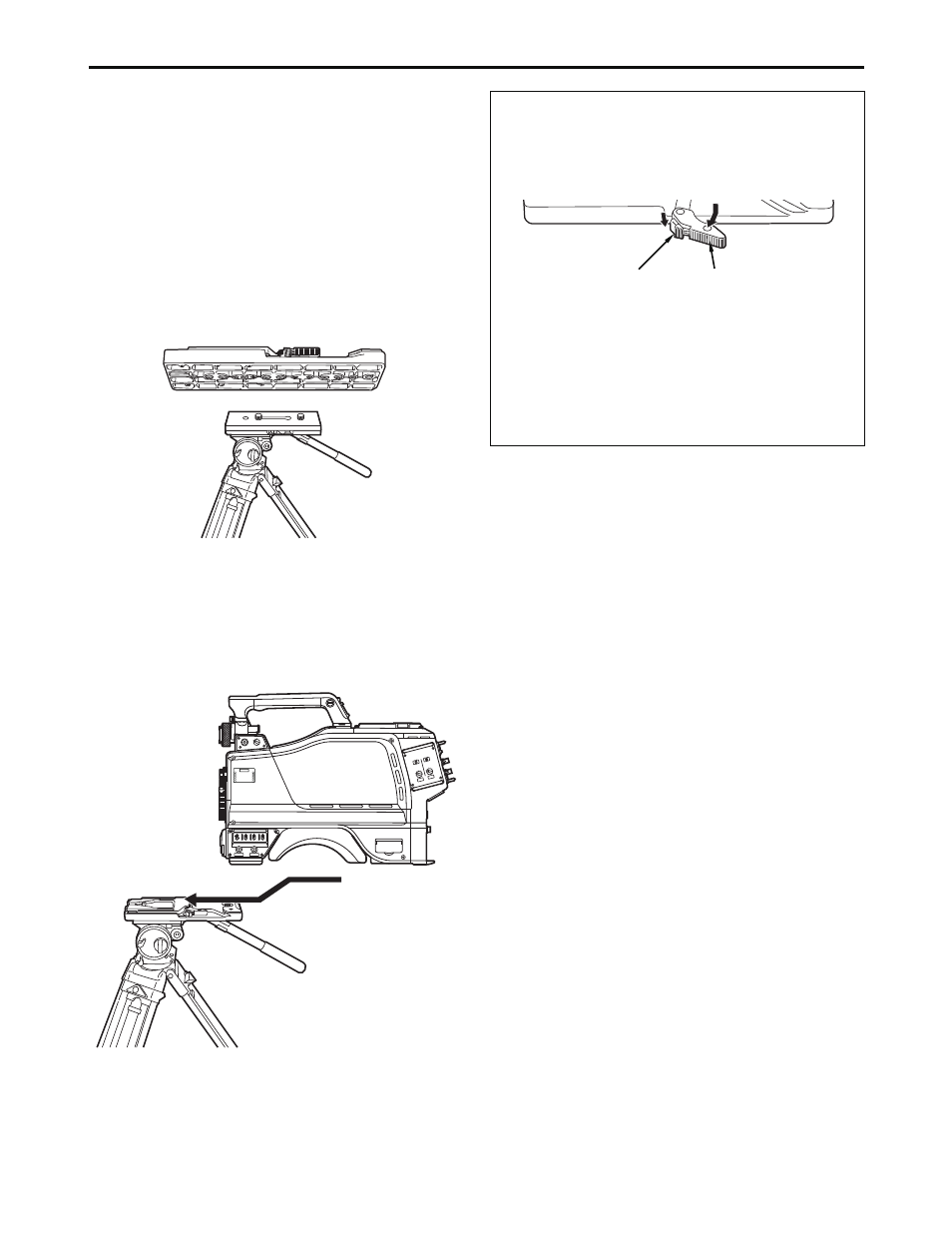

Mounting the camera on a tripod
1
Mount the tripod attachment on the tripod.
Consider the center of gravity of the camera
and tripod together when selecting the holes for
attaching the camera. Check that the diameter of the
selected holes match the diameter of the screws on the
tripod platform.
2
Mount the camera on the tripod attachment. Slide the
camera toward the front along the groove until a click is
heard.
Use the tripod attachment, available as an optional
accessory, to mount the camera on a tripod.
Tripod platform
Tripod attachment
PHANT OFF
AB
PHAN T OFF
AB
(dB) –20 –30 –40
MIC1
–50 –60 (dB) –20 –30 –40 –50 –60
MIC2
R NAM Y /C
FILTER LOCAL MONI SEL
G B
1 A
CAM/VTR GAIN ON
S T B Y S AV E H I G H
L O W
MID BAR A
C A M B
T E S T P R S T
ON
PTT
OUTPUT W.BAL
USER SEL
FILTER ND 1 CAP CC
2 CLEAR
3 1 / 4ND
4 1/16ND
5 1/64ND 3200K
4300K
6300K
CROSS
DF0
A
B
C
D
E
Red lever
Tripod attachment
Detaching the camera from the tripod attachment
While pushing the red lever, move the black lever in the
direction of the arrow, and slide the camera toward the
back.
Black lever
If the pin of the tripod attachment fails to return to its
original position after the camera has been detached,
push the red lever again and simultaneously move the
black lever in the direction of the arrow to return the pin to
its original position.
Bear in mind that the camera cannot be mounted if the pin
still remains at the center.
