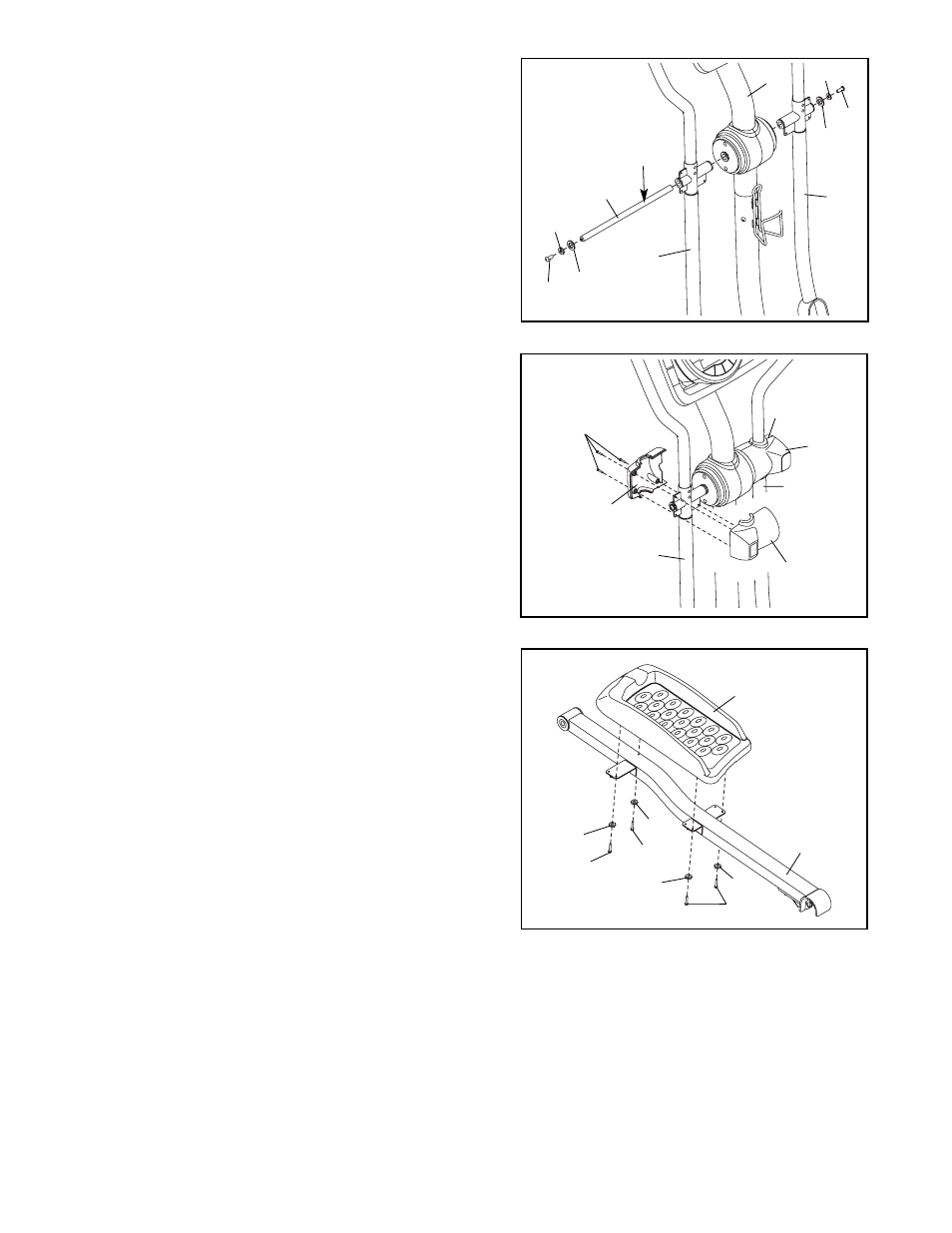

12. Identify the Left Pedal (13) and the Left Pedal Leg
(14), which are marked with stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
with an M4 x 45mm Screw (108), three M4 x 14mm
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right Pedal
Leg (not shown) in the same way.
13
14
104
104
112
112
112 112
108
12
11. Hold the Left Front Handlebar Cover (18) and the Left
Rear Handlebar Cover (19) around the Left Upper Body
Arm (11). Attach the Handlebar Covers with three M4 x
32mm Round Head Screws (105).
Attach the Right Front Handlebar Cover (20) and the
Right Rear Handlebar Cover (21) around the Right
Upper Body Arm (12) in the same way.
10. Insert the Pivot Axle (74) into the Upright (3) and center
it. Apply a generous amount of the included grease to
the Pivot Axle.
Orient the Left Upper Body Arm (11) as shown, and
slide it onto the left end of the Pivot Axle (74). Slide the
Right Upper Body Arm (12) onto the right end of the
Pivot Axle.
Tighten an M8 x 23mm Button Screw (84) with an M8
Washer (88) and a Wave Washer (111) into each end of
the Pivot Axle (74). Make sure that the Wave Washers
are on the ends of the Pivot Axle.
88
84
111
88
74
3
84
111
12
11
20
21
105
12
19
Grease
11
10
18
11
