Mono input connections, Low level inputs, High level inputs – Pyramid Car Audio PB781X User Manual
Page 18
head unit
using
low level inputs
PLEASE NOTE! If using high level
inputs, do not use the low level RCA
inputs at the same time!
using
high level inputs
To a second amplifier
Y Adaptors
17

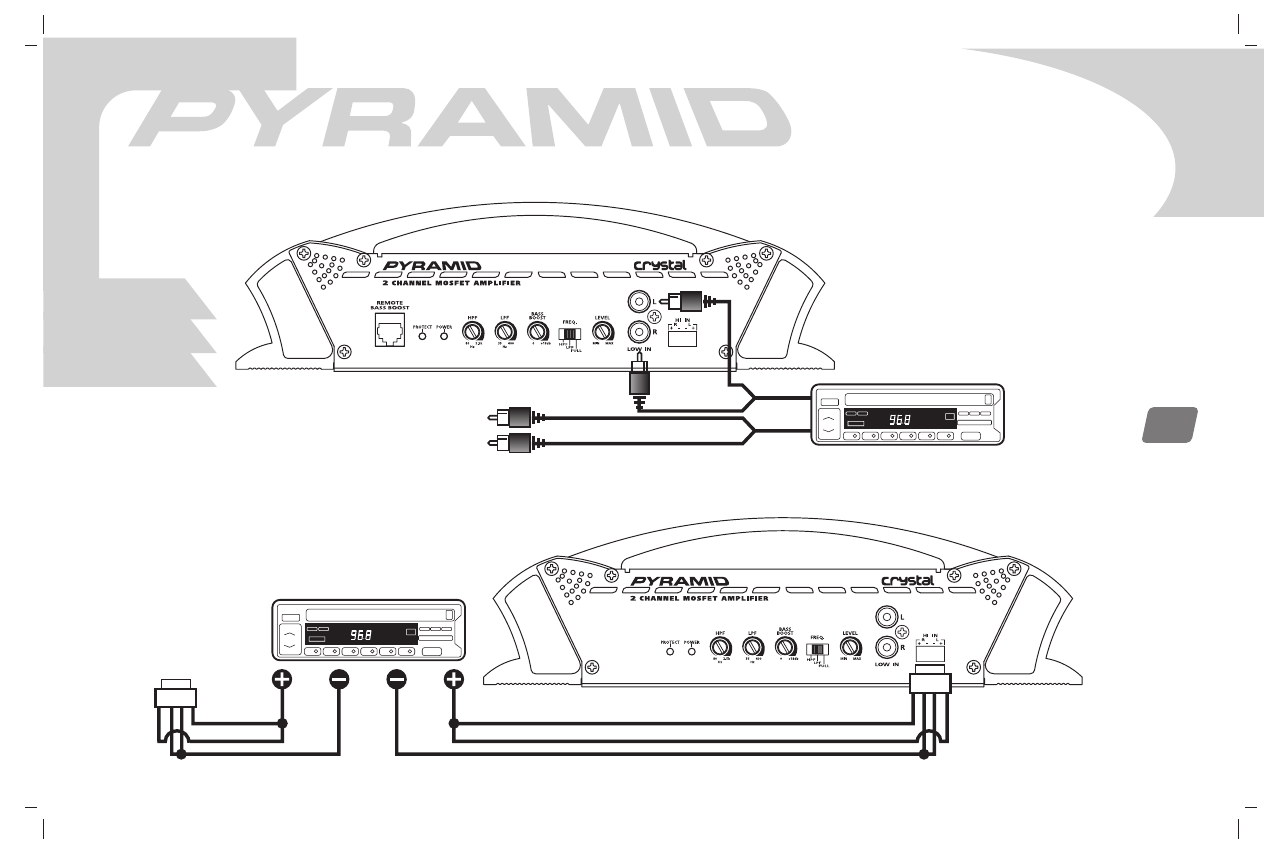

mono input connections
2 ch amp PB481X • PB781X • PB1281X
pb481X
pb781X
pb1281X
head unit
wiring harness
wiring harness
To a second amplifier
R
R
L
L
from speaker terminals
