REPAIR PARTS
SNOW THROWER - MODEL XT11530ES (96192003501)

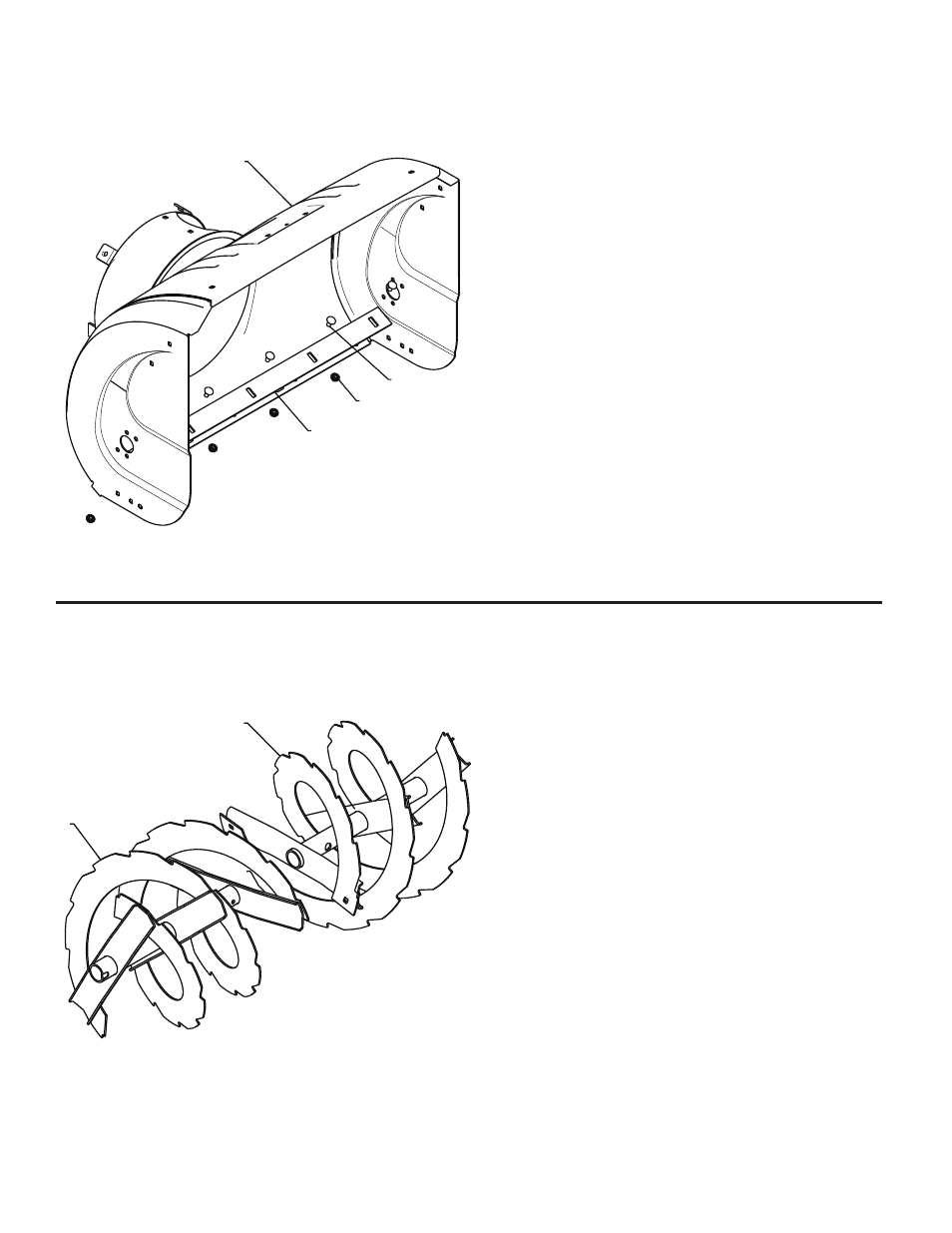

AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
01.07.019-A
1 420497X479 AUGER ASSEMBLY 30 LH
2 420498X479 AUGER ASSEMBLY 30 RH
1
2
3 (5x)
4 (5x)
01.07.003-A
1 404930X505 AUGER HOUSING
2 404933X479 SCRAPPER BAR
3 72270505 CARRIAGE BOLT 5/16−18 X .625
4 155377 NUT 5/16−18
