REPAIR PARTS
SNOW THROWER - MODEL XT627ES (96192004500)

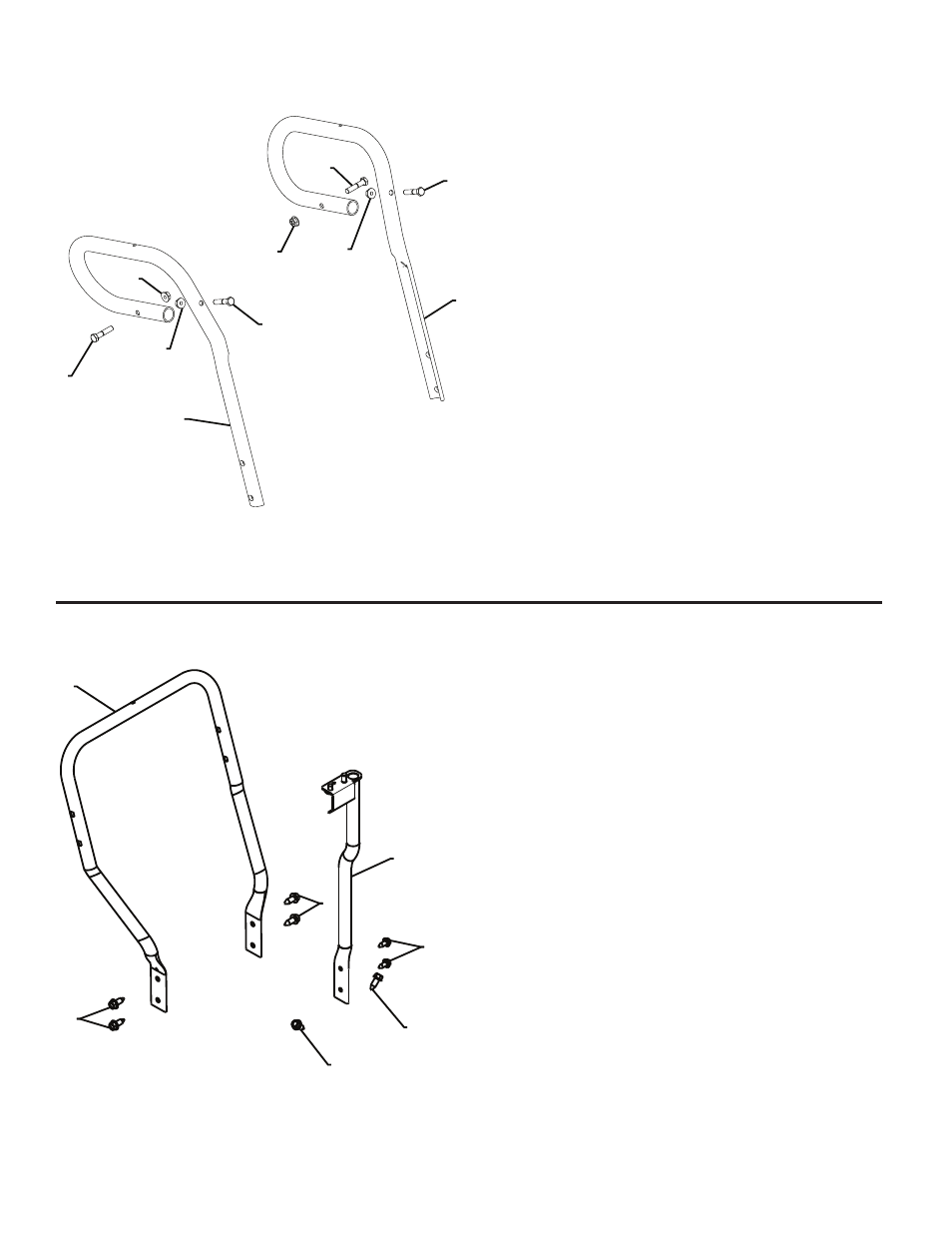

HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
4 4
3
3
01.08.004-B
4
4
1 419798 X431 LOOP HANDLE LH
2 419799 X431 LOOP HANDLE RH
3 74780524 SCREW 5/16−18 X 1.50
4 751153 NUT 5/16−18
1
2
3
4
4
4
4
01.05.004-C
1 419797 X431 LOWER TUBE
2 418313 X431 PIVOT SUPPORT
3 428867 BOLT 5/16-18 X .750
4 17000616 SCREW 3/8-16 X 1.00
