REPLACEMENT OF MAIN PARTS

IMPORTANT: Before replacing any part always
DISCONNECT THE CLEANER FROM THE
ELECTRICITY SUPPLY.

•

MOTOR / CARBON BRUSHES

(1) Motor

1. To remove the dust cover first pull it out from one side and

then rotate it up wards to take it out. (Fig.1)

2. Remove cord reel and switch pedal prying out as indicated

with a flat-head screwdriver. (Fig. 2)
NOTE: When prying out take care not to damage the body.

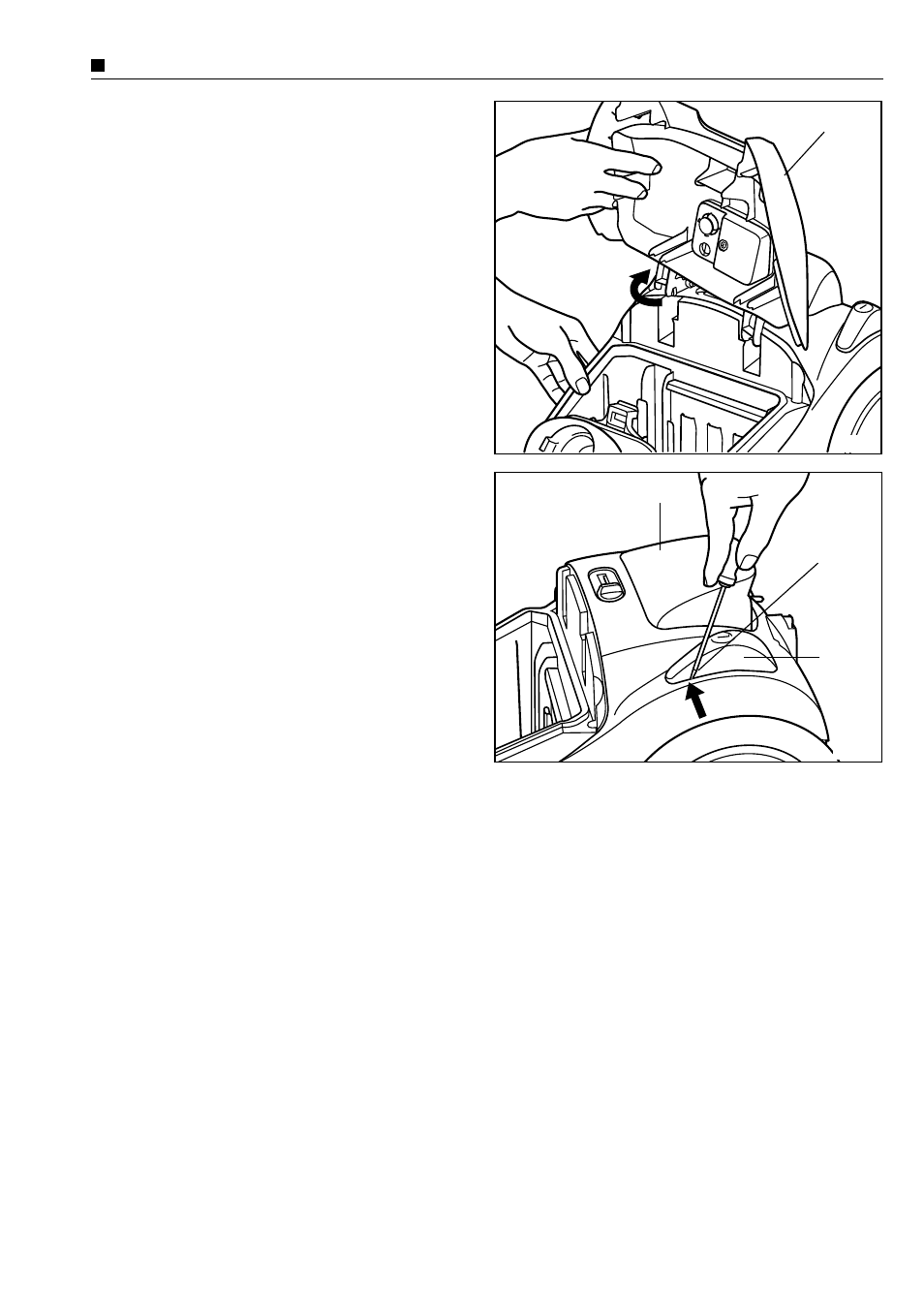

Fig. 2

Fig. 1

Dust cover

Cord reel Pedal

Switch

Pedal

Flat-head

screwdriver
