Introduction 71
SmartNode 4520 & 4110 Series User Manual D • Port pin-outs
Introduction
This section provides pin-out information for the ports of the SmartNode.
Console port
Configuration settings: 9600 bps, 8 bits, no parity, no flow control

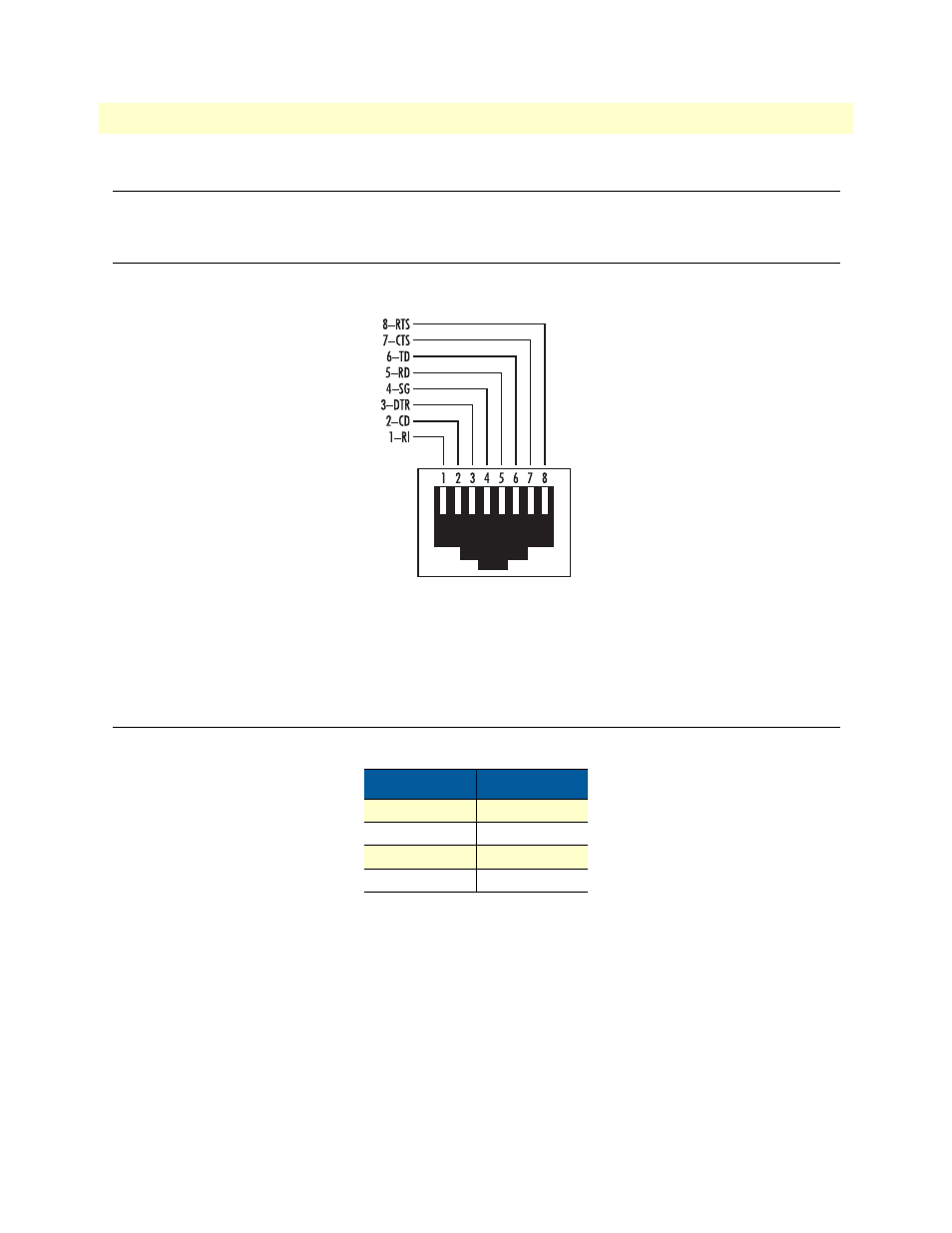

Figure 34. EIA-561 (RJ-45 8-pin) port
Note Pins not listed are not used.
Ethernet 10Base-T and 100Base-T port
Note Pins not listed are not used.
Table 12. RJ-45 socket
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
